Eaton AN16SN0CB Freedom NEMA Motor Control Starter – 270A, Size 5

In stock
SKU: AN16SN0CB GTIN/UPC: 782113971896
$4,578.35
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

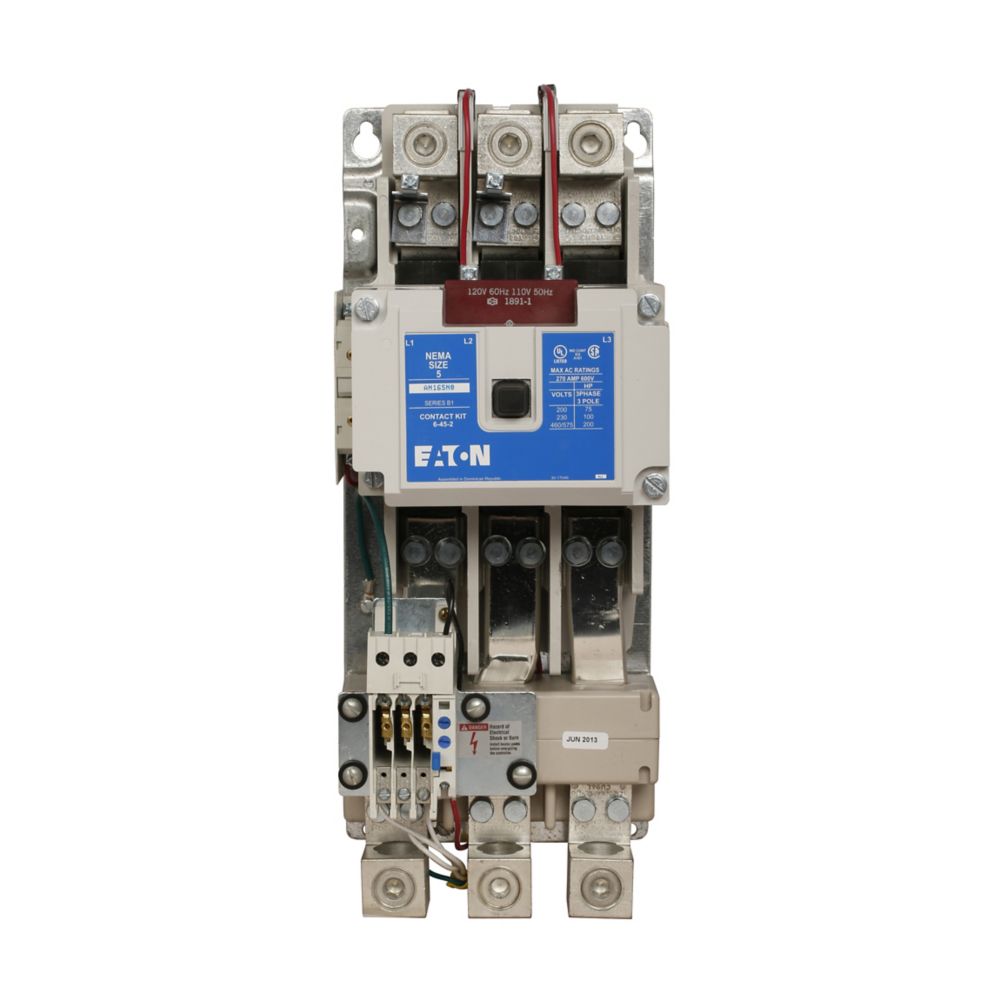

The Eaton AN16SN0CB is a Freedom Series NEMA motor control starter designed for high-capacity three-phase motor starting and overload protection in industrial applications. Equipped with a C306 bi-metal overload relay, this starter delivers reliable performance for heavy-duty motor loads. Heater packs must be purchased separately to ensure proper overload protection and system coordination.

Voltage and Rating

  • Current Rating: 270A
  • Phase: Three-phase
  • NEMA Size: 5
  • Mounting: Horizontal
  • Type: Motor Control Starter

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: AN16SN0CB
  • Product Type: Motor Control Starter
  • Family: Freedom NEMA
  • Certifications: UL Listed, CSA Certified
  • Special Features: Starter with C306 bi-metal overload relay
  • Catalog Notes: Heater packs must be purchased separately
  • Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first

Motor Ratings

  • 75 HP @ 208V
  • 100 HP @ 240V
  • 200 HP @ 480/600V

Physical Details

  • Product Length/Depth: 7.75 in
  • Product Height: 7.22 in
  • Product Width: 12 in
  • Product Weight: 25 lb

Product Data

  • UPC: 782113971896
  • Category: Motor Control Starter
  • Application: Heavy-duty industrial motor starting and overload protection
  • System Use: Freedom Series NEMA motor control applications
  • Mounting Style: Horizontal configuration
  • Type Motor Control
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
