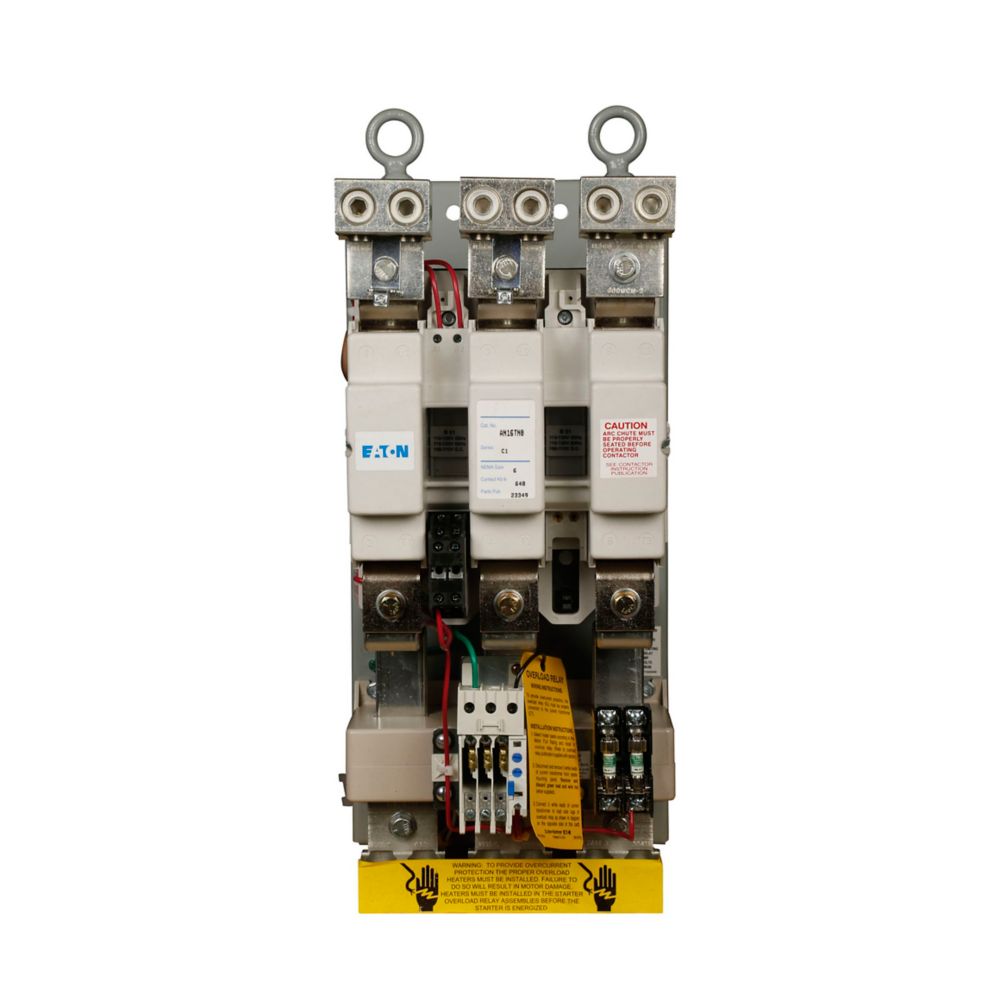

Eaton AN16TN0CC Freedom NEMA Motor Control Starter – 540A, Size 6
Couldn't load pickup availability
Ask an expert
The Eaton AN16TN0CC is a Freedom Series NEMA motor control starter designed for very high-power three-phase motor starting and overload protection in industrial applications. It includes a C306 bi-metal overload relay and is built for heavy-duty motor control systems requiring large current handling capacity. Heater packs must be purchased separately to ensure proper overload protection and system performance.
Voltage and Rating
- Current Rating: 540A
- Phase: Three-phase
- NEMA Size: 6
- Mounting: Horizontal
- Type: Motor Control Starter
Key Specifications
- Manufacturer: Eaton
- Catalog Number: AN16TN0CC
- Product Type: Motor Control Starter
- Family: Freedom NEMA
- Certifications: UL Listed, CSA Certified
- Special Features: Starter with C306 bi-metal overload relay
- Catalog Notes: Heater packs must be purchased separately
- Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first
Motor Ratings
- 150 HP @ 200V
- 200 HP @ 230V
- 300 HP @ 380V
- 400 HP @ 460/575V
Physical Details
- Product Length/Depth: 9.25 in
- Product Height: 23.5 in
- Product Width: 9.5 in
- Product Weight: 55 lb
Product Data
- UPC: 782114216941
- Category: Motor Control Starter
- Application: Heavy industrial motor starting and overload protection
- System Use: Freedom Series NEMA motor control applications
- Mounting Style: Horizontal configuration
- Type Motor Control
- Vendor Eaton Cutler-Hammer
- Brand Eaton
