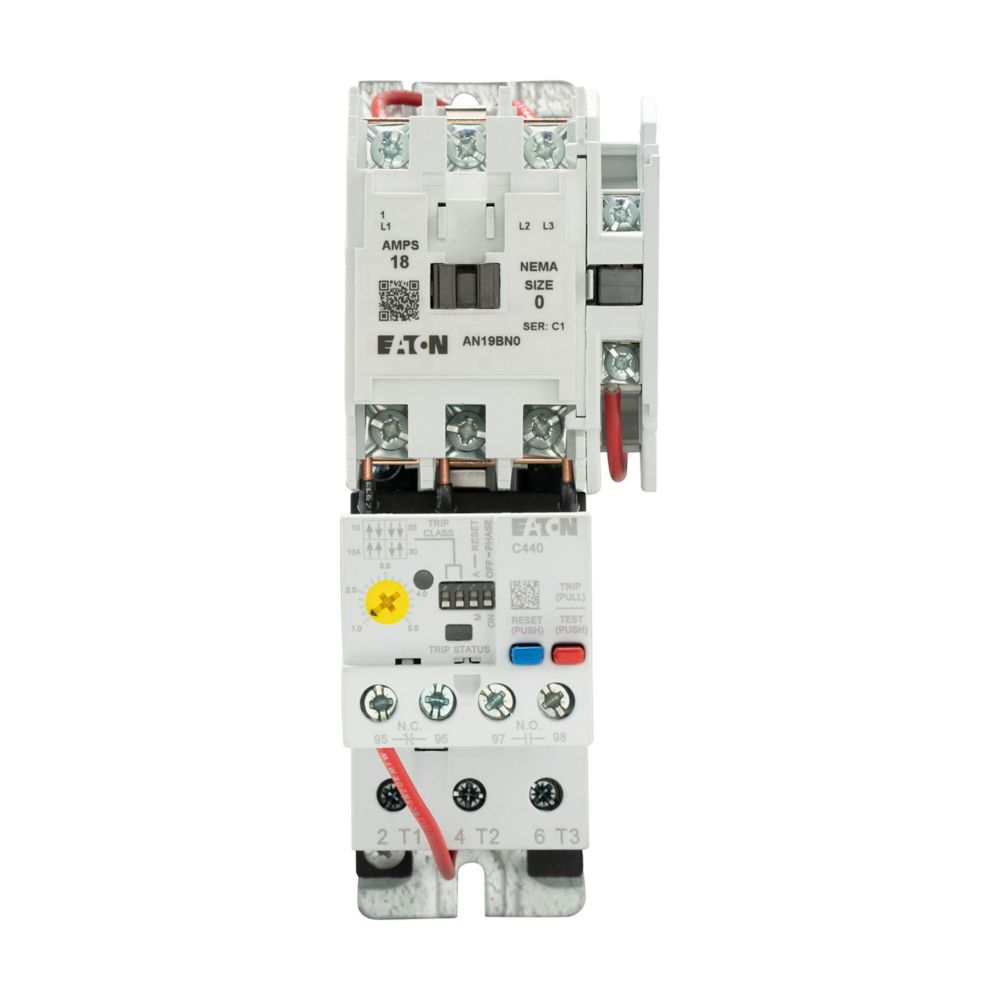

Eaton AN19BN0A5E020 Freedom NEMA Motor Control Starter – 18A, Size 0 (C440 Electronic Overload)

The Eaton AN19BN0A5E020 is a Freedom Series NEMA motor control starter designed for precise and reliable motor starting and protection in industrial applications. It features a C440 electronic overload relay with selectable reset and adjustable trip classes (10A, 10, 20, 30), providing flexible motor protection and improved system coordination. This non-reversing starter is suitable for light-duty three-phase motor control applications.

Voltage and Rating

• Current Rating: 18A
• Phase: Three-phase
• NEMA Size: 0
• Mounting: Horizontal
• Coil Voltage: 120V/60 Hz or 110V/50 Hz
• Configuration: Non-reversing
• Type: Motor Control Starter

Key Specifications

• Manufacturer: Eaton
• Catalog Number: AN19BN0A5E020
• Product Type: Motor Control Starter
• Family: Freedom NEMA
• Certifications: UL, CSA, CE, NEMA
• Compliance: RoHS Compliant
• Special Features: C440 electronic overload relay, SEL reset, selectable class (10A, 10, 20, 30)
• Relay Type: C440 electronic overload
• Warranty: 1 year

Motor Ratings

• N/A (not explicitly specified in provided data beyond standard NEMA Size 0 applications)

Physical Details

• Product Length/Depth: 4.9 in
• Product Height: 6.6 in
• Product Width: 1.97 in
• Product Weight: 1.75 lb

Product Data

• UPC: 786685414706
• Category: Motor Control Starter
• Application: Motor starting and electronic overload protection for industrial systems
• System Use: Freedom Series NEMA motor control applications
• Mounting Style: Horizontal configuration
