Eaton Cutler-Hammer

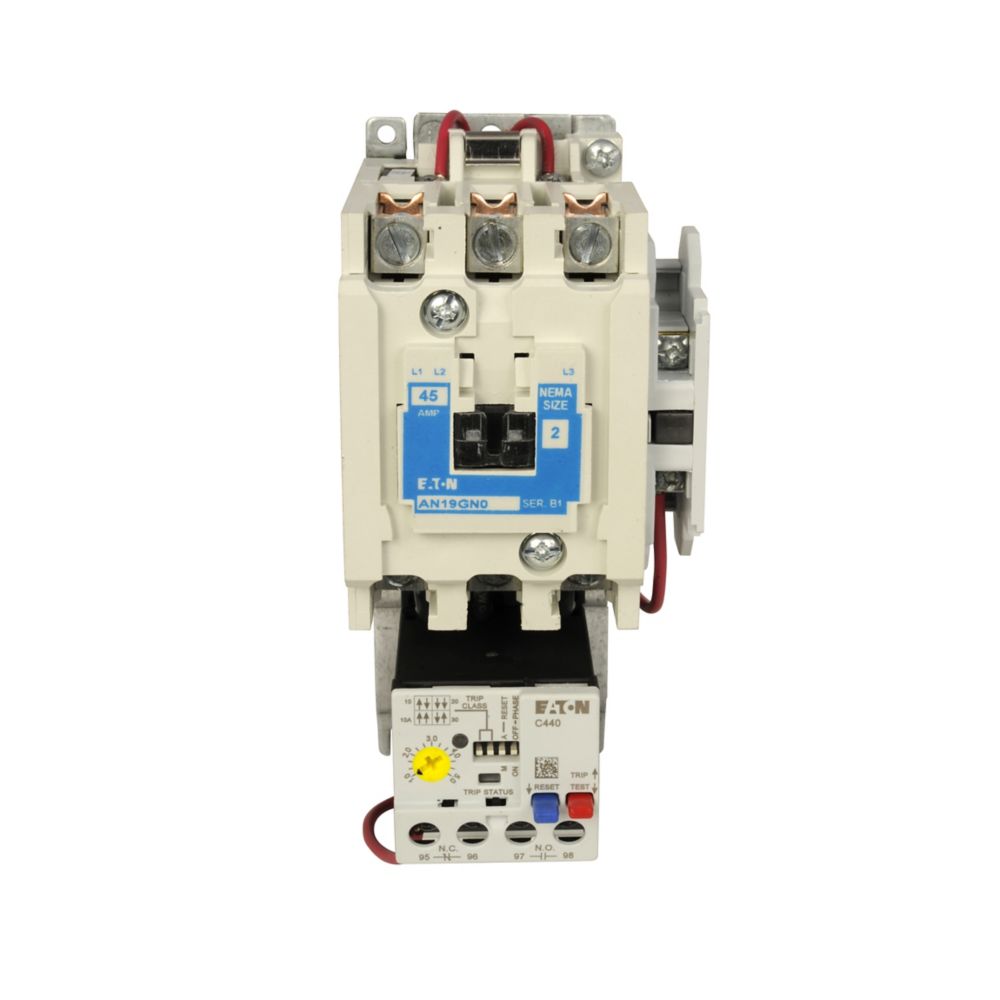

Eaton AN19GN0A5E020 Freedom NEMA Motor Control Starter – 45A, Size 2 (C440 Electronic Overload)

In stock
SKU: AN19GN0A5E020 GTIN/UPC: 786685415383
$903.15
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton AN19GN0A5E020 is a Freedom Series NEMA motor control starter engineered for dependable motor starting and advanced overload protection in industrial applications. Featuring a C440 electronic overload relay with selectable reset and adjustable trip classes (10A, 10, 20, 30), this non-reversing starter provides enhanced motor protection, improved coordination, and operational flexibility for demanding motor control systems.

Voltage and Rating

  • Current Rating: 45A
  • NEMA Size: 2
  • Mounting: Horizontal
  • Coil Voltage: 120V/60 Hz or 110V/50 Hz
  • Configuration: Non-reversing
  • Type: Motor Control Starter

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: AN19GN0A5E020
  • Product Type: Motor Control Starter
  • Family: Freedom NEMA
  • Accessories: Freedom NEMA
  • Certifications: UL, CSA, CE, NEMA
  • Compliance: RoHS Compliant
  • Relay Type: C440 electronic overload relay
  • Special Features: C440 EOLR standard feature set, SEL reset, selectable class (10A, 10, 20, 30)
  • Warranty: 1 year

Physical Details

  • Product Length/Depth: 8 in
  • Product Height: 5 in
  • Product Width: 6 in
  • Product Weight: 4 lb

Product Data

  • UPC: 786685415383
  • Category: Motor Control Starter
  • Application: Motor starting and advanced electronic overload protection
  • System Use: Freedom Series NEMA motor control applications
  • Mounting Style: Horizontal configuration
  • Type Motor Control
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
