Eaton Cutler-Hammer

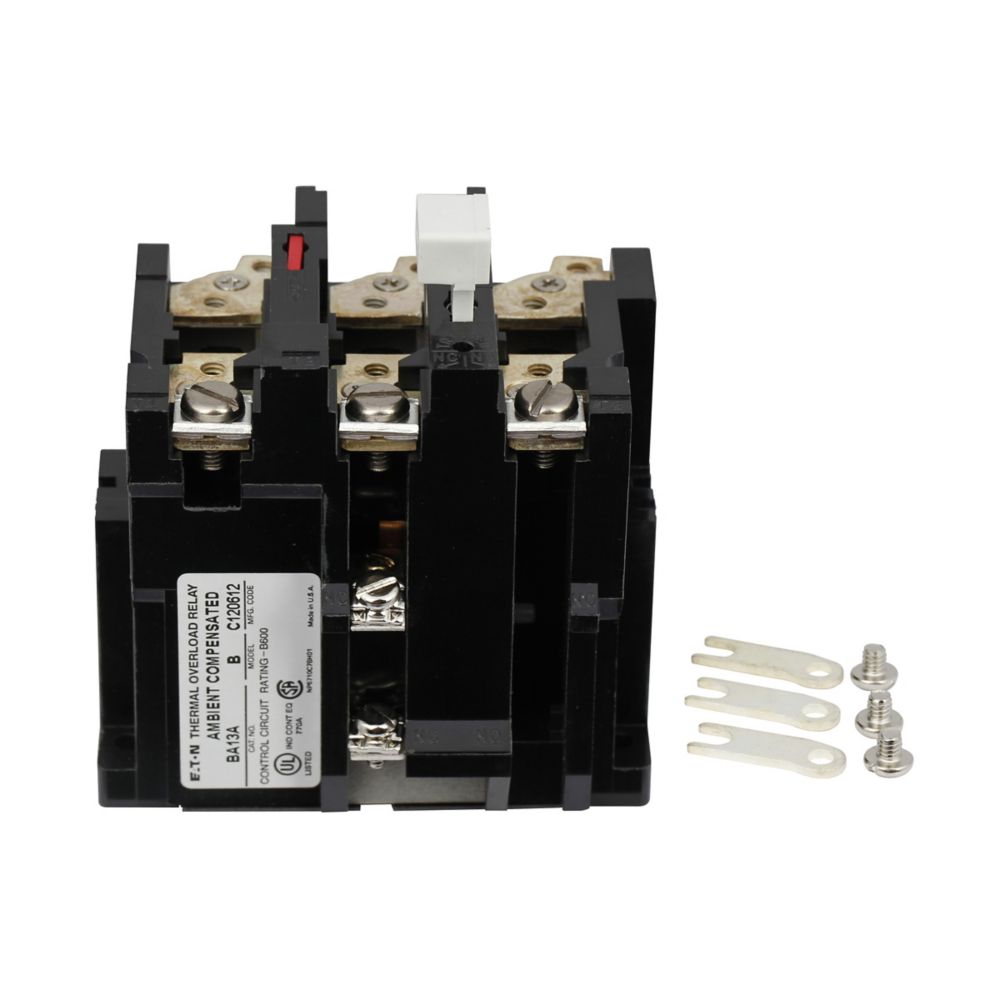

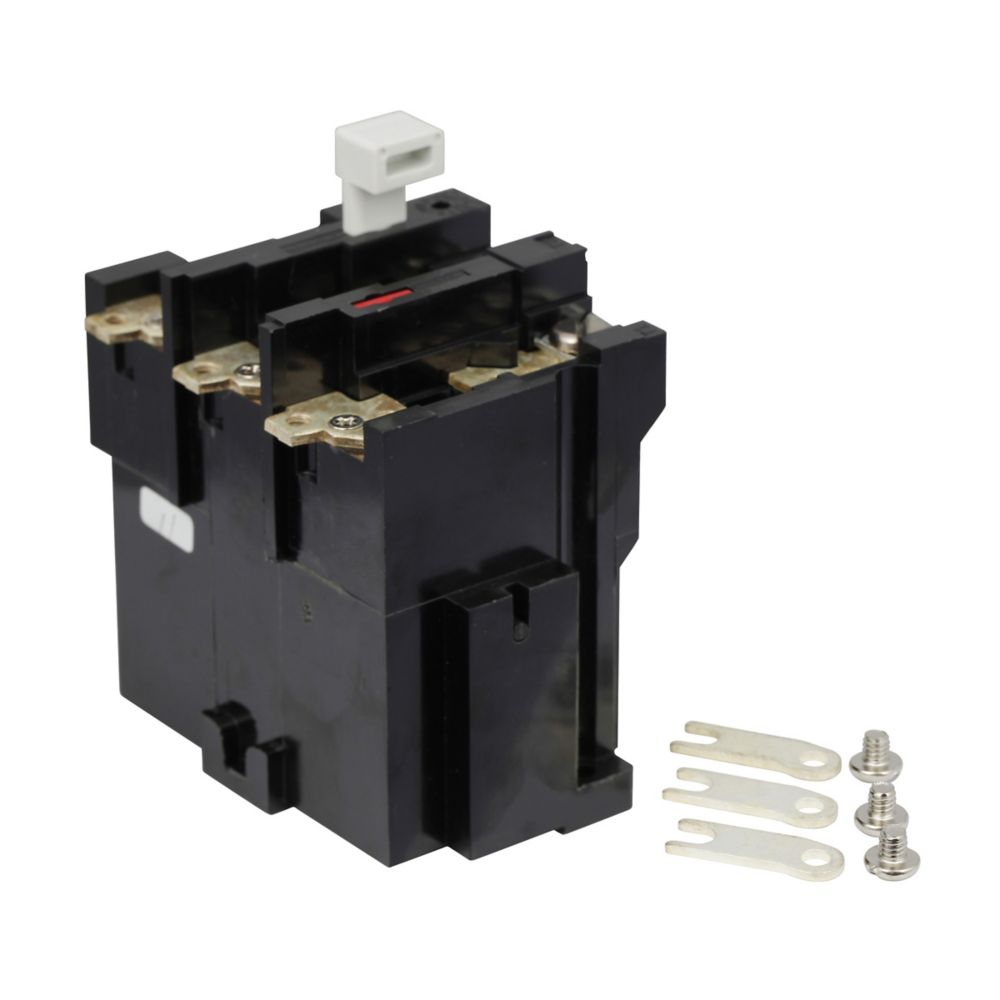

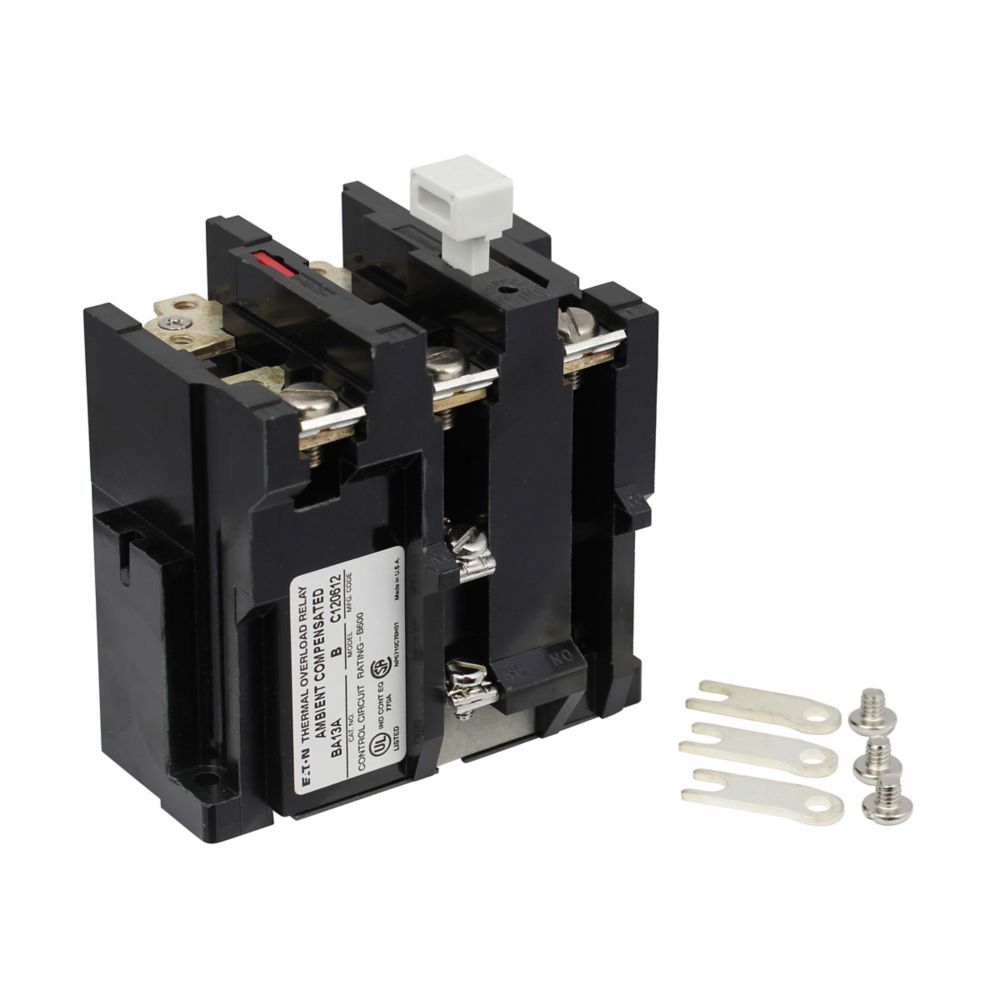

Eaton BA13A Freedom NEMA Overload Relay – Thermal Class 20

In stock
SKU: BA13A GTIN/UPC: 786678003207
$236.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton BA13A is a Freedom NEMA thermal overload relay designed for dependable motor overload protection in industrial motor control applications. This ambient-compensated overload relay features a thermal Type B Class 20 trip characteristic and includes one normally closed auxiliary contact for enhanced control functionality. Heaters are required for operation and must be selected separately according to the motor full load current requirements.

Voltage and Rating

  • Full Load Current Range: 0.25–26.2A
  • Number of Poles: 3-Pole
  • Trip Type: Thermal Type B, Class 20
  • Design: NEMA
  • Mounting: Starter mounted
  • Type: A200 Overload Relay

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: BA13A
  • Product Type: Overload Relay
  • Certifications: UL Listed, CSA Certified
  • Modification: 1NC Auxiliary Contact, Ambient Compensated
  • Special Features: Heaters required
  • Catalog Notes: Replacement for Type B overload relays. For replacement on B200 Size 00, 0, 1 use BA23A instead of BA13A.
  • Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first

Physical Details

  • Product Length/Depth: 4.8 in
  • Product Height: 3.4 in
  • Product Width: 3.6 in
  • Product Weight: 0.7 lb

Product Data

  • UPC: 786678003207
  • Category: Overload Relay
  • Application: Motor overload protection for industrial motor control systems
  • System Use: Freedom NEMA starter and motor control assemblies
  • Mounting Style: Starter mounted configuration
  • Type Overload Relay
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
