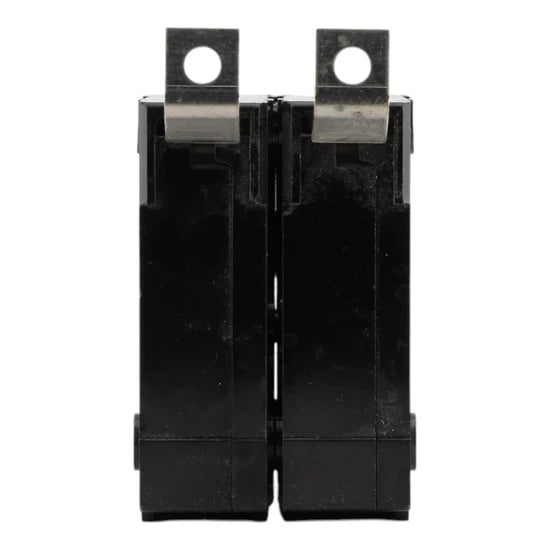

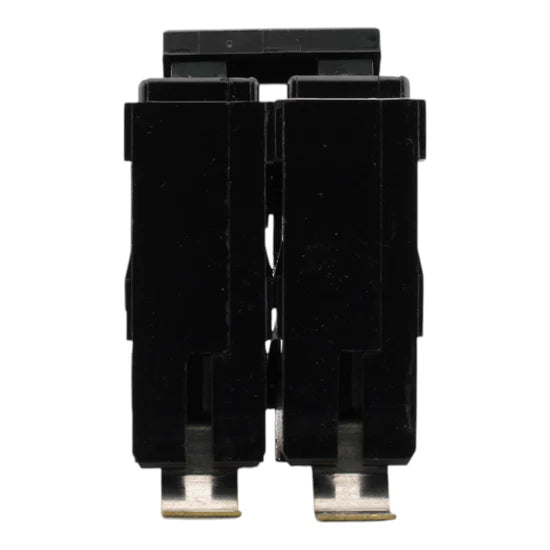

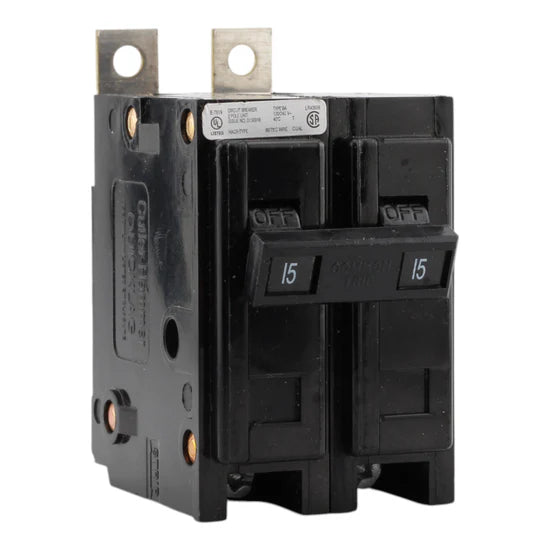

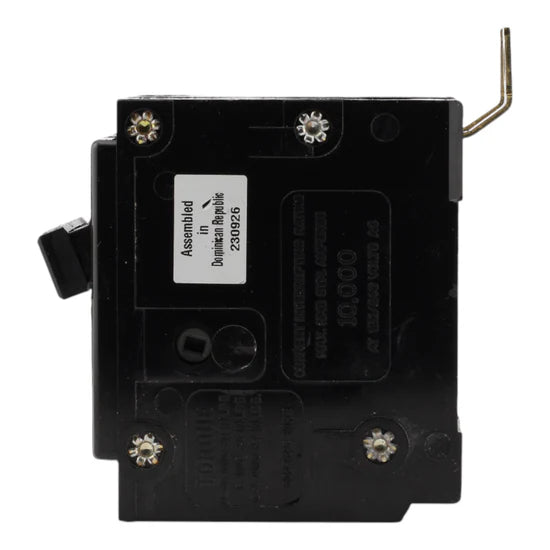

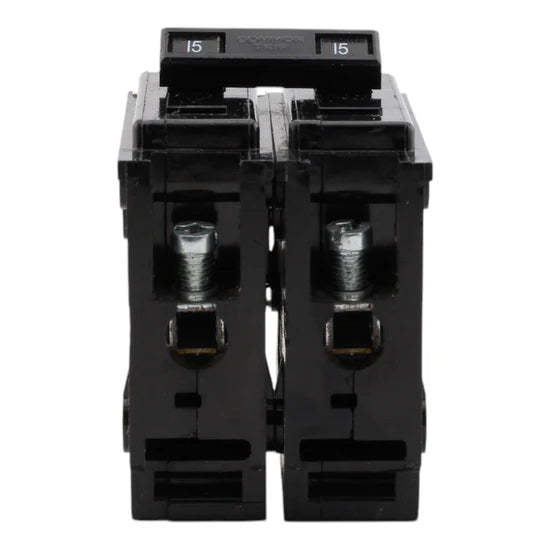

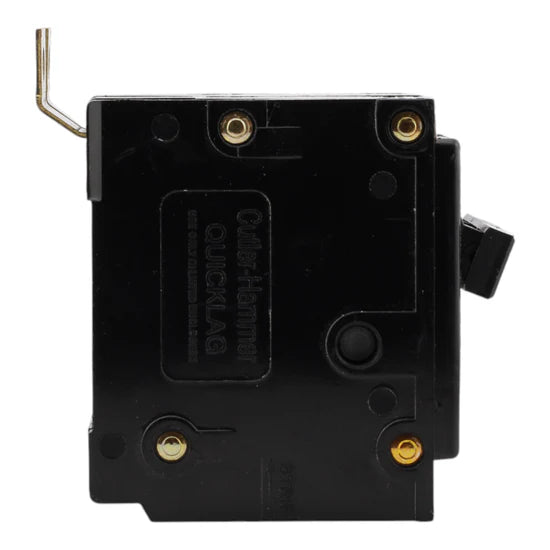

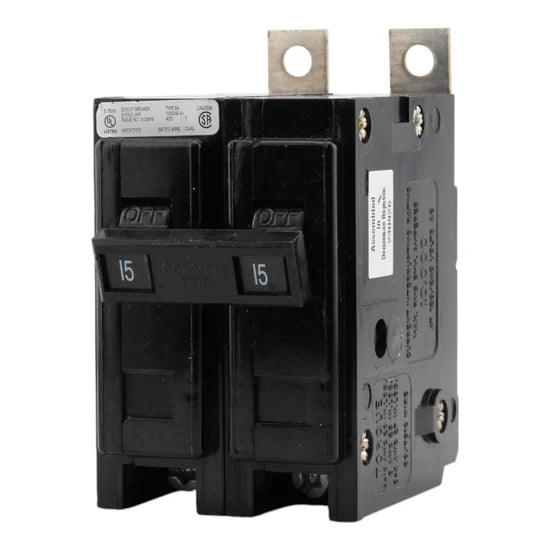

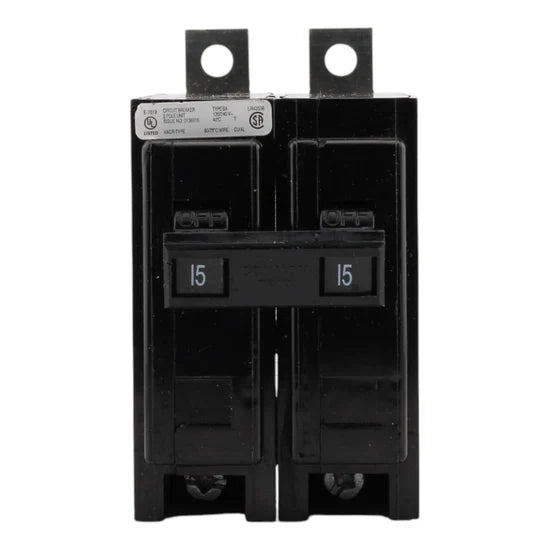

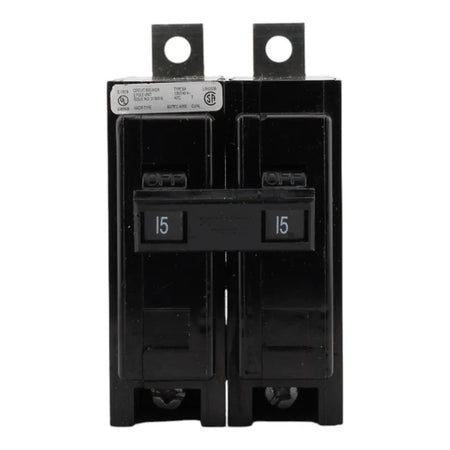

Eaton BAB2015 15A 2-Pole Thermal-Magnetic Circuit Breaker – Bolt-On – 120/240V

The Eaton BAB2015 15 Amp 2-pole thermal-magnetic circuit breaker delivers reliable protection for industrial and residential electrical systems. Designed with a switching neutral and bolt-on mounting, this breaker provides dependable overload and short-circuit protection while maintaining HACR compliance for HVAC applications. UL listed and CSA certified, it ensures safety and durability in a compact form factor, making it suitable for electricians, contractors, and facility maintenance professionals.

Voltage and Rating

• Current Rating: 15 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC
• Trip Type: Non-interchangeable

Key Specifications

• Breaker Type: Thermal-Magnetic Circuit Breaker (BAB Quicklag Industrial)
• Number of Poles: 2-Pole
• Mounting Type: Bolt-On
• Neutral Type: Switching neutral
• HACR Rated: Yes
• Application: Residential and industrial branch circuit protection

Technical Specifications

• Wire Compatibility & Torque:
• 4–10 AWG: 20 in-lbs
• 8 AWG: 25 in-lbs
• 6–4 AWG: 27 in-lbs
• Operating Mechanism: Thermal-magnetic
• Certifications: UL Listed, CSA Certified

Product Data

• Manufacturer: Eaton
• Brand: BAB
• Model Number: BAB2015
• UPC: 786679302156

• Dimensions:

  • Height: 4.8 in
  • Width: 2.1 in
  • Depth: 3.8 in
  • Weight: 0.65 lb
