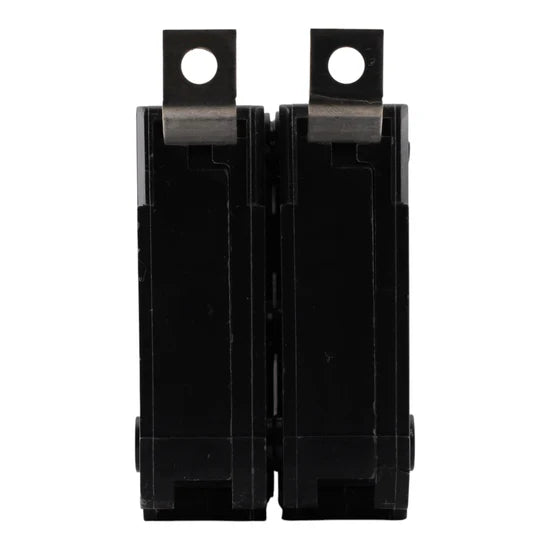

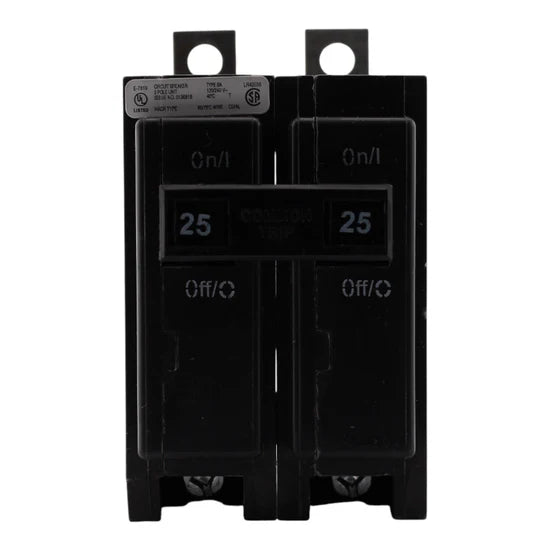

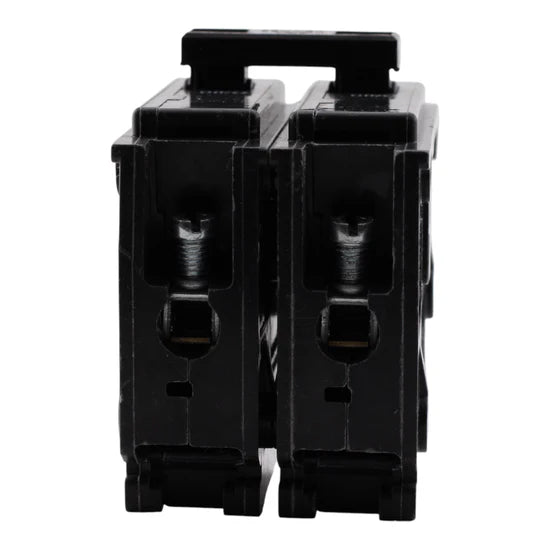

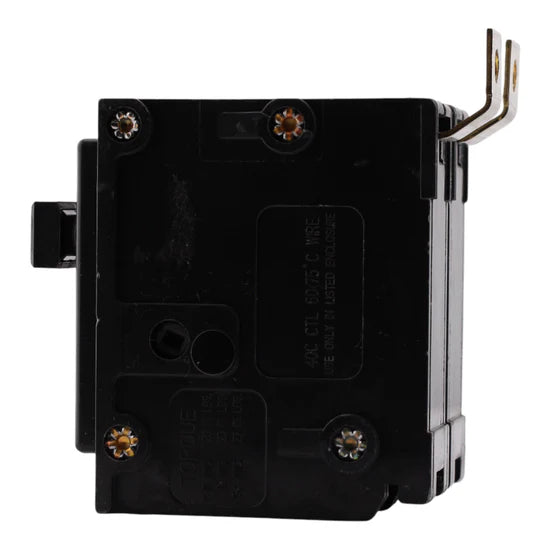

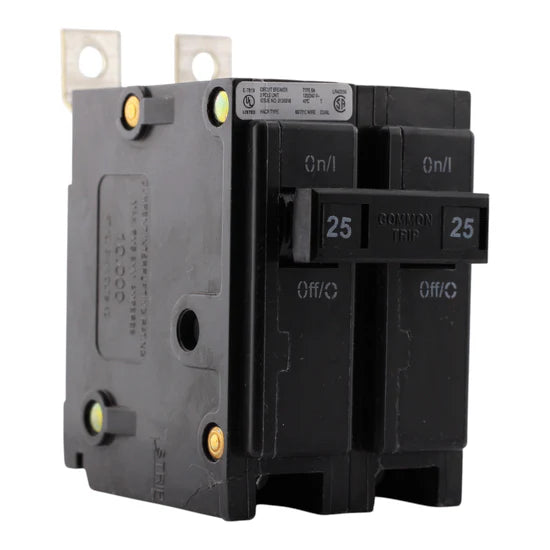

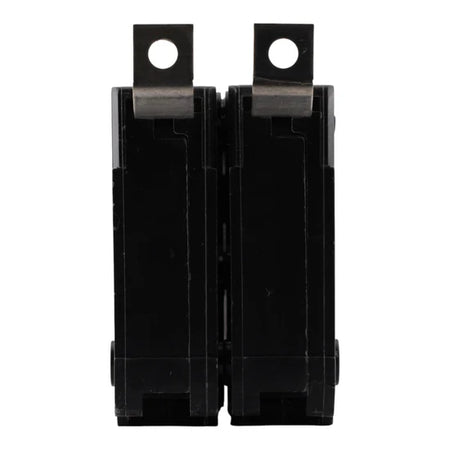

Eaton BAB2025 25A 2-Pole Thermal-Magnetic – Bolt-On – 120/240V

The Eaton BAB2025 is a 25 Amp, 2-Pole Quicklag thermal-magnetic circuit breaker designed for BAB panelboards. Featuring bolt-on mounting, a 10kA interrupt rating, and switching neutral capability, it provides reliable overload and short-circuit protection for commercial and light industrial applications.

Voltage and Rating

• Amperage: 25 Amps
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC

Key Specifications

• Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
• Poles: 2-Pole
• Mounting Mode: Bolt-On
• Connections Terminals: Extended Tang Line Terminal, Box Lug Load Terminal, Switching Neutral
• Wire Size: #14–4 AWG Cu/Al

Product Data

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Model Number: BAB2025
• UPC: 786679302255

• Dimensions:

  • Height: 3.5 in
  • Width: 2 in
  • Depth: 3.5 in
  • Weight: 0.65 lbs

• Certifications: UL Listed, HACR Rated, CSA
