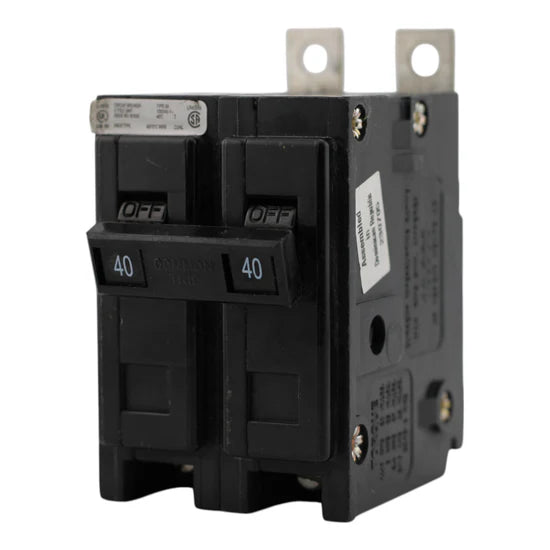

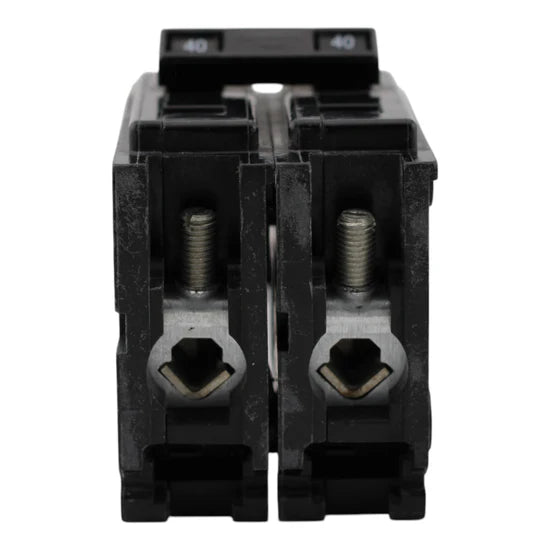

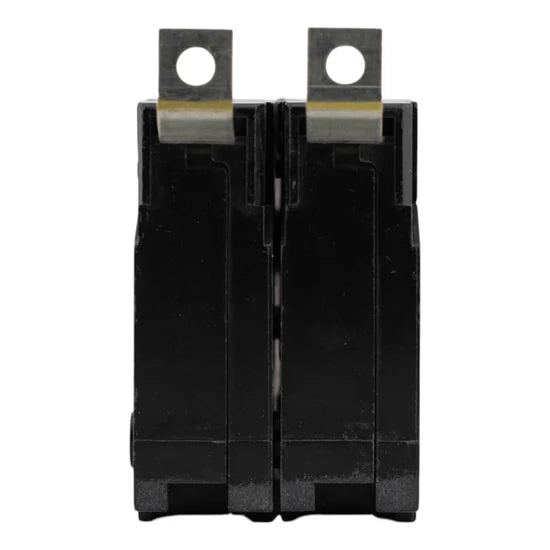

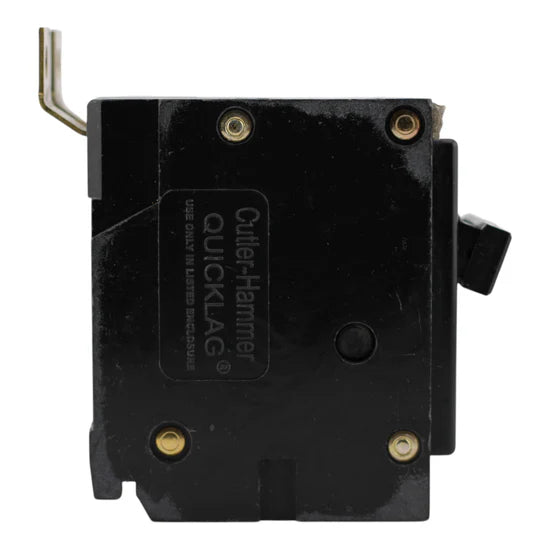

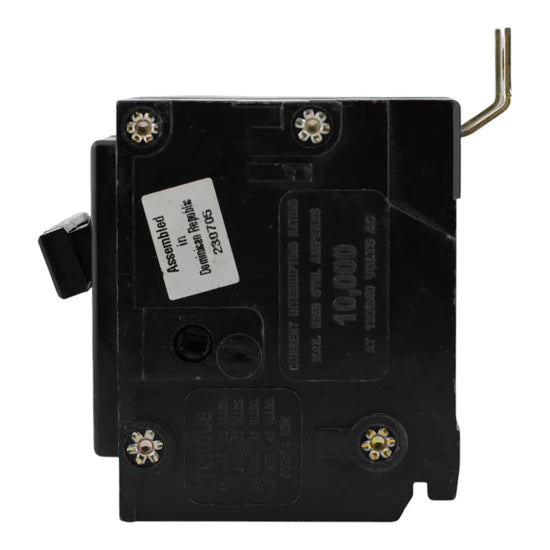

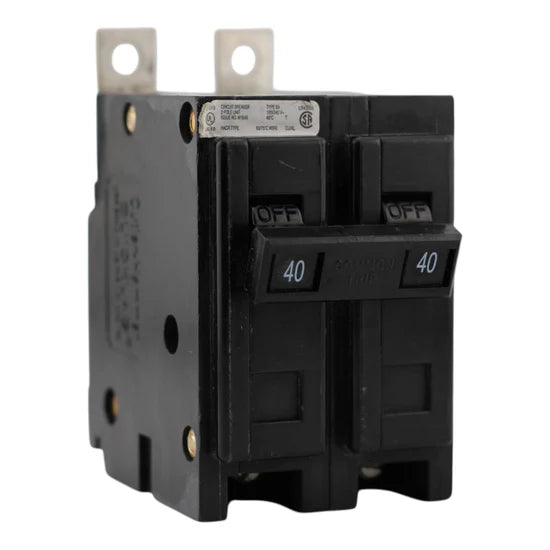

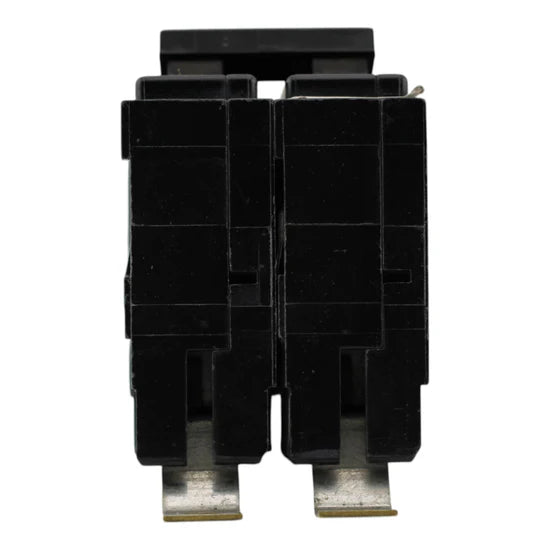

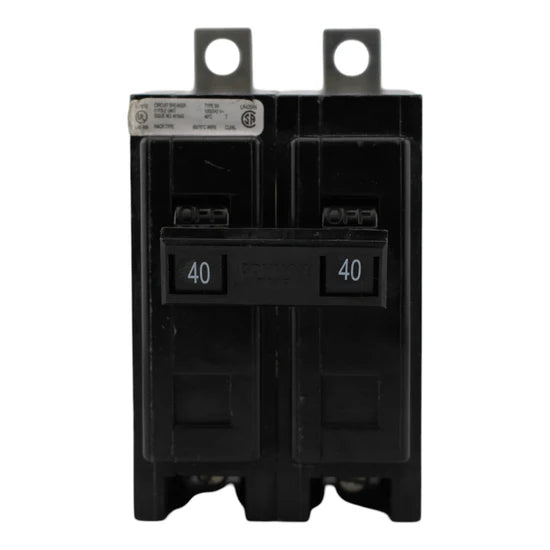

Eaton BAB2040 40A 2-Pole Thermal-Magnetic Circuit Breaker – Bolt-On – 120/240V

The Eaton BAB2040 40 Amp two-pole thermal-magnetic circuit breaker provides reliable protection against overloads and short circuits for industrial and commercial electrical systems. Designed with a bolt-on mounting method, it ensures secure installation in compatible panels. HACR rated and UL/CSA certified, this breaker delivers dependable performance in demanding applications.

Voltage and Rating

• Current Rating: 40 Amps
• Voltage Rating: 120/240 Volts
• Interrupting Capacity: 10 kAIC
• Poles: 2-Pole

Key Specifications

• Breaker Type: BAB Quicklag Industrial
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Application: Industrial and commercial circuit protection
• Special Features: HACR Rated

Certifications

• UL Listed
• CSA Certified

Product Data

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: BAB2040
  • UPC: 786679302408
  • Dimensions (H × W × D): 2.9 × 2 × 3.1 in
  • Weight: 0.6 lb
