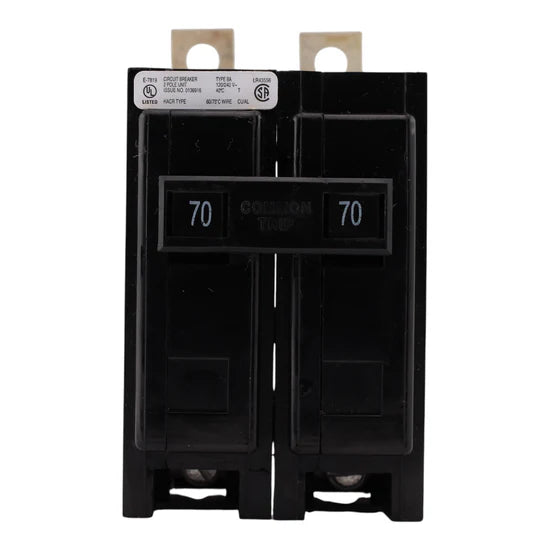

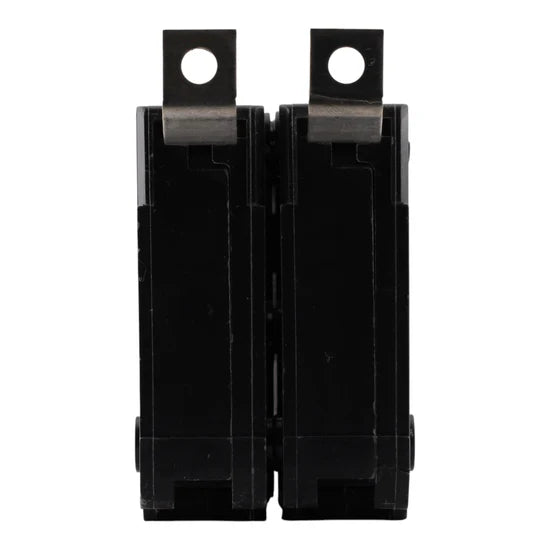

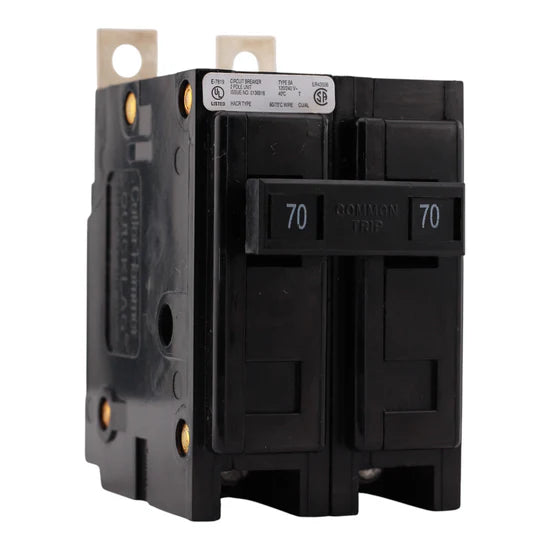

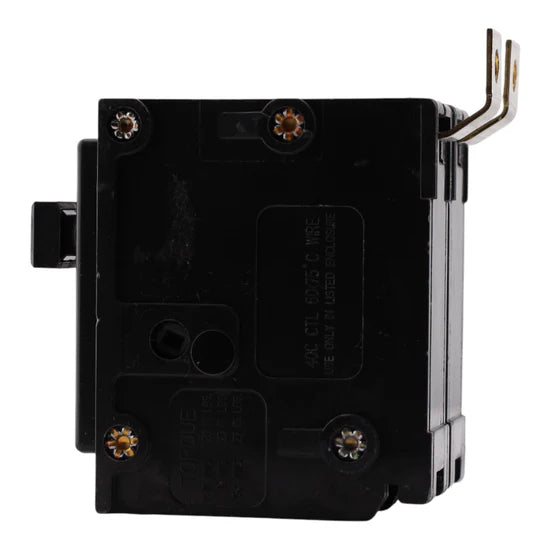

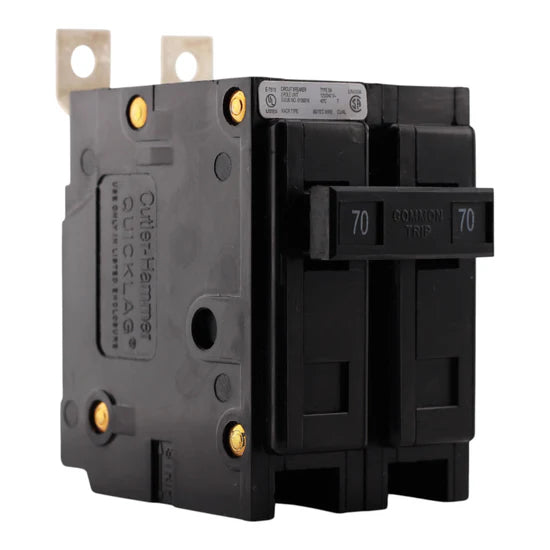

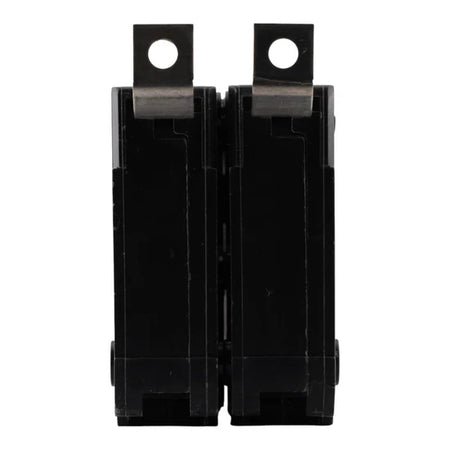

Eaton BAB2070 70A 2-Pole Thermal-Magnetic – Bolt-On – 120/240V

The Eaton BAB2070 is a 70 Amp, 2-Pole Quicklag thermal-magnetic circuit breaker designed for BAB panelboards. With bolt-on mounting, a 10kA interrupt rating, and extended tang line terminals, it delivers reliable overload and short-circuit protection for commercial and light industrial applications.

Voltage and Rating

• Amperage: 70 Amps
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC

Key Specifications

• Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
• Poles: 2-Pole
• Mounting Mode: Bolt-On

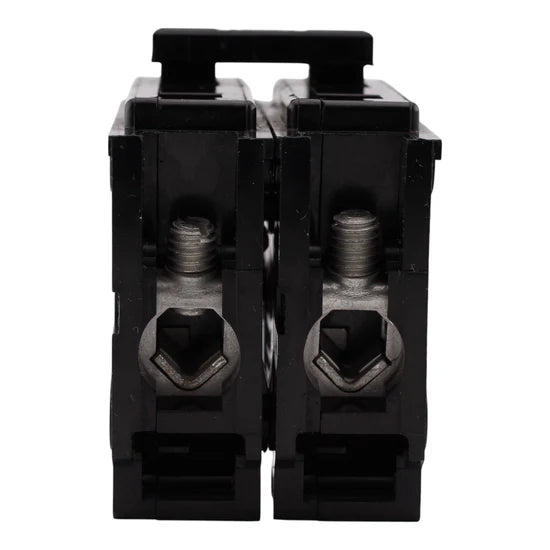

• Connections Terminals: Extended Tang Line Terminal, Box Lug Load Terminal
• Wire Size: #8–1/0 AWG Cu/Al

Product Data

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Model Number: BAB2070
• UPC: 786679302705
• Dimensions:
• • Height: 4.8 in
  • Width: 2.2 in
  • Depth: 3.8 in
  • Weight: 1.5 lbs

• Certifications: UL Listed, HACR Rated, CSA
