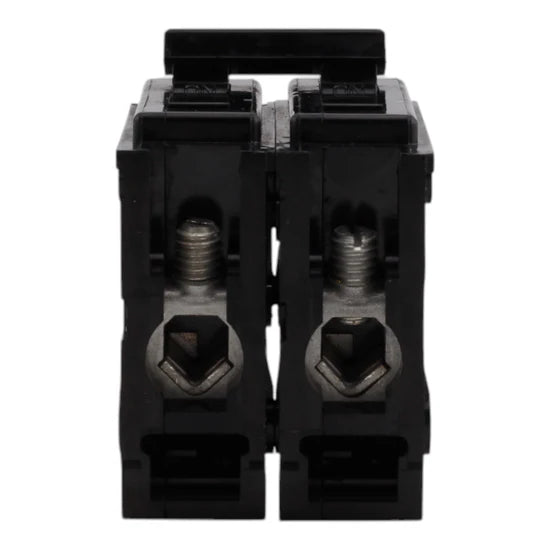

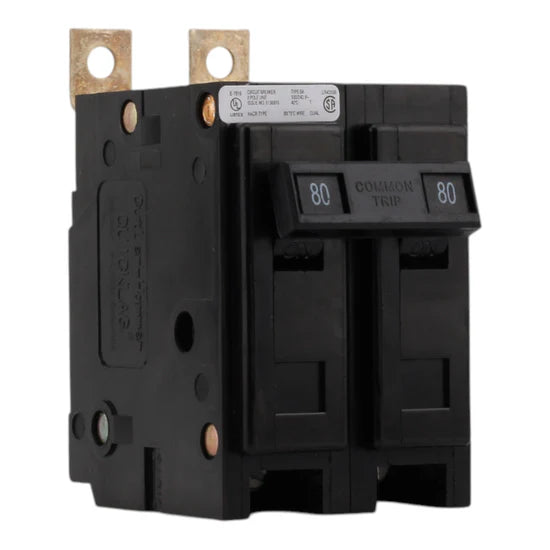

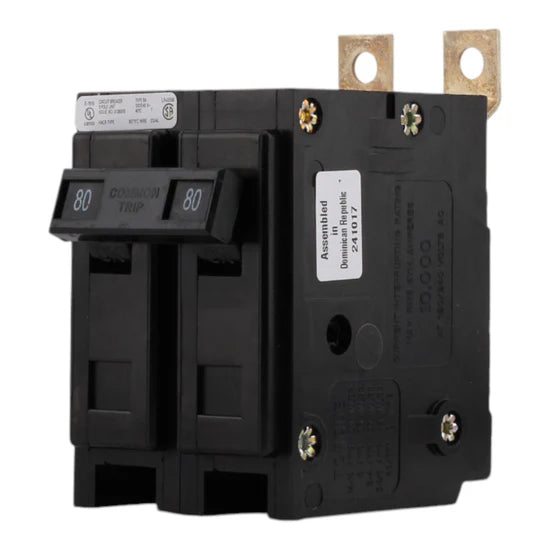

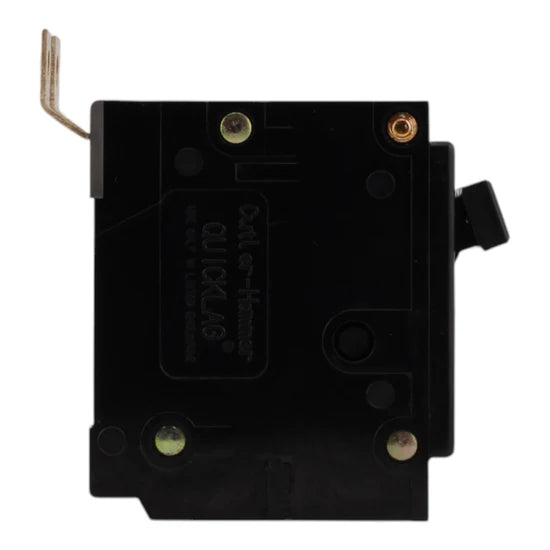

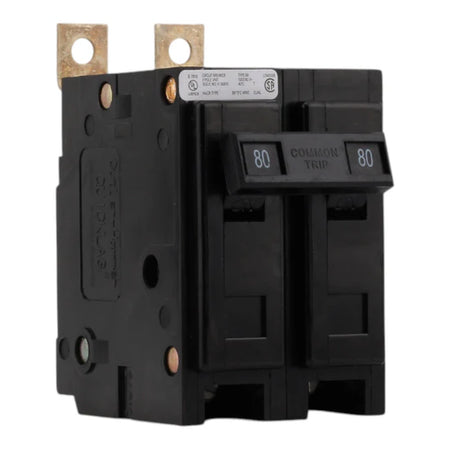

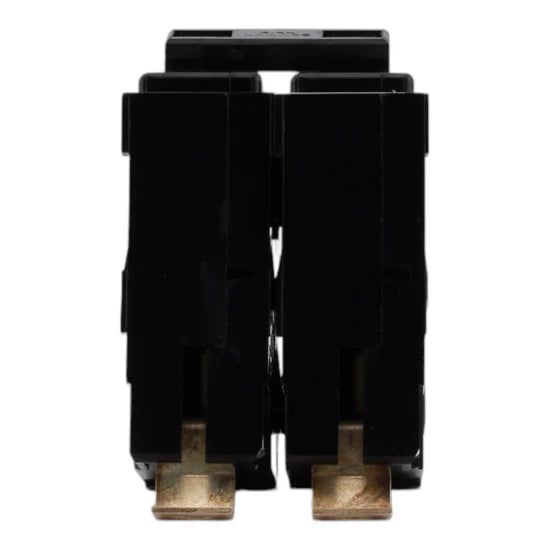

Eaton BAB2080 80A 2P Thermal-Magnetic Circuit Breaker – Bolt-On – 120/240V

The Eaton BAB2080 circuit breaker provides dependable 80A, 2-pole thermal-magnetic protection for 120/240V electrical systems. Designed for Quicklag loadcenters, this bolt-on breaker delivers reliable overcurrent protection for residential, commercial, and light industrial applications.

Voltage and Rating

• Current Rating: 80 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Poles: 2-Pole
• Breaker Type: Thermal-Magnetic Circuit Interrupter

Key Features

• Thermal-magnetic trip mechanism for reliable overload and short-circuit protection
• Bolt-on mounting for secure panel installation
• HACR rated for HVAC applications
• Compatible with Eaton Quicklag loadcenters
• Durable construction for long service life

Installation Details

• Mounting Mode: Bolt-on
• Terminal Type: Bolt-on
• Wire Size: #4–2/0 AWG Cu/Al
• Tightening Torque: 65 lb-in

Physical Specifications

• Height: 4.8 in
• Width: 2.2 in
• Depth: 3.9 in
• Weight: 0.7 lbs

Certifications

• UL Listed
• CSA Certified
• HACR Rated

Product Information

• • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: Quicklag
  • Model Number: BAB2080
  • UPC: 786679302804
