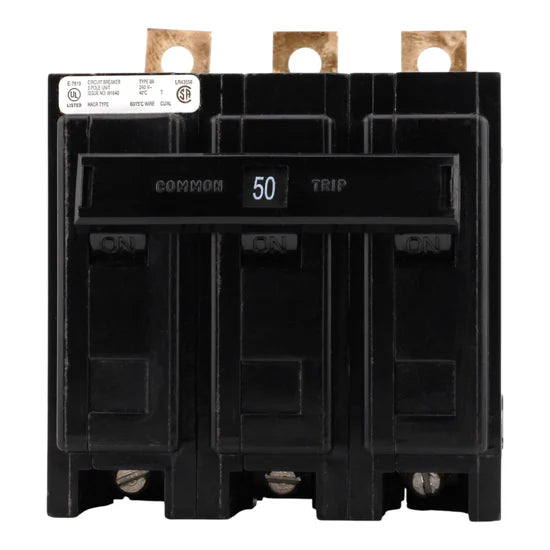

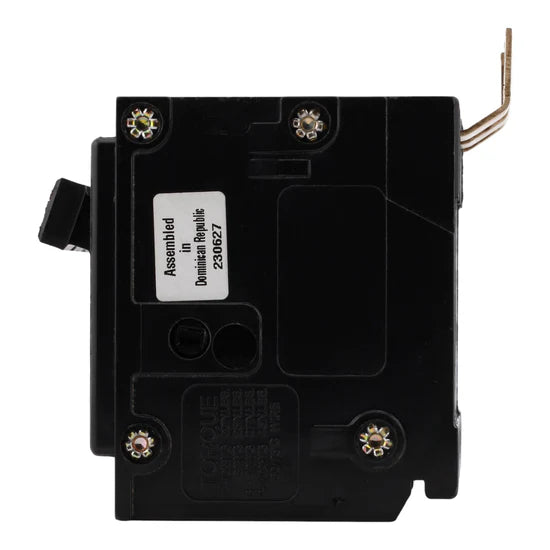

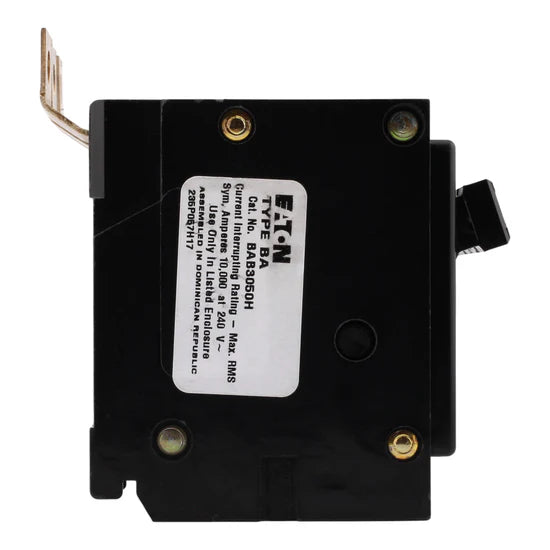

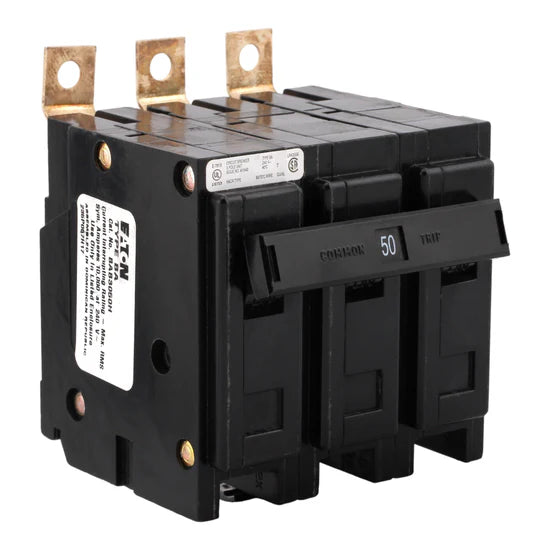

Eaton BAB3050H 50A 3-Pole Thermal-Magnetic – Bolt-On – 240V

The Eaton BAB3050H is a 50 Amp, 3-Pole thermal-magnetic circuit breaker designed for Eaton Quicklag distribution panels in three-phase, four-wire systems. It provides reliable 240V circuit protection with a 10 kAIC interrupt rating, ensuring robust performance and safety for commercial and industrial applications.

Electrical Specifications

• Breaker Type: Thermal-Magnetic
• Amperage: 50 Amps
• Poles: 3-Pole
• Voltage: 240 Volts AC
• Interrupt Rating: 10 kAIC

Mechanical & Mounting Specifications

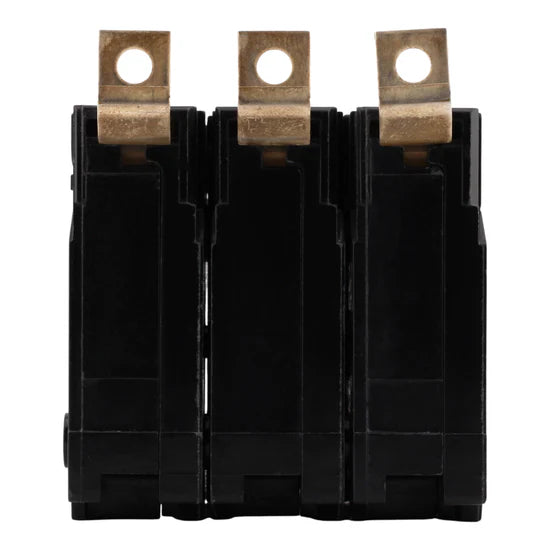

• Mounting Mode: Bolt-On

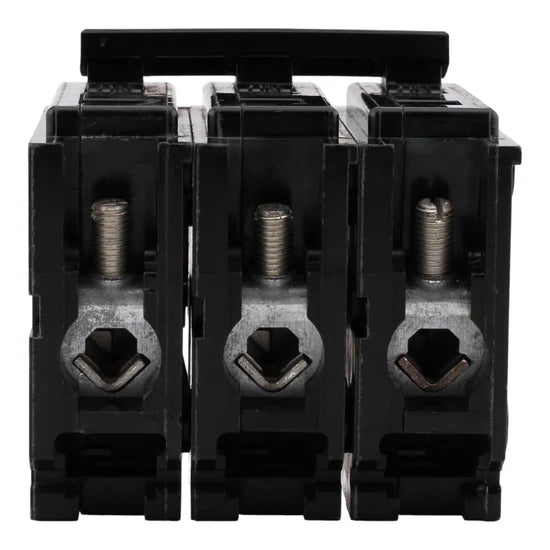

• Connection Terminals: Bolt-On
• Wire Size Range: (1) #14–4 AWG Cu/Al
• Tightening Torque: 35.4 lb-in

Certifications

• UL Listed
• CSA Certified
• HACR Rated

Physical Dimensions

• • Height: 4.9 in
  • Width: 3.2 in
  • Depth: 3.8 in
  • Weight: 1.0 lbs

Key Features

• Reliable 50A, 3-Pole thermal-magnetic protection for 240V circuits
• Bolt-on mounting for secure installation in Quicklag panels
• Designed for three-phase, four-wire systems
• UL, CSA, and HACR certified for compliance and safety
