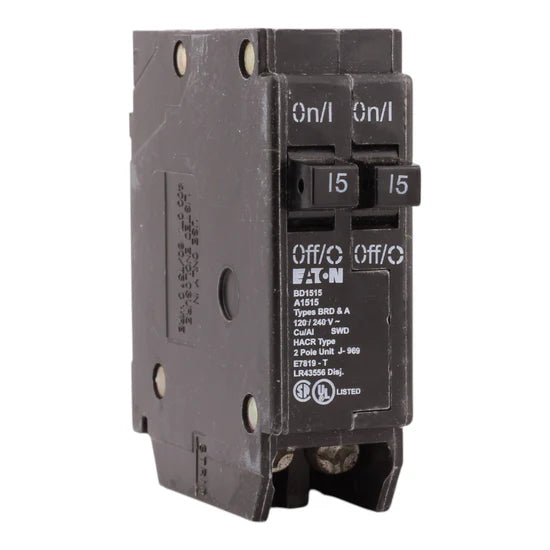

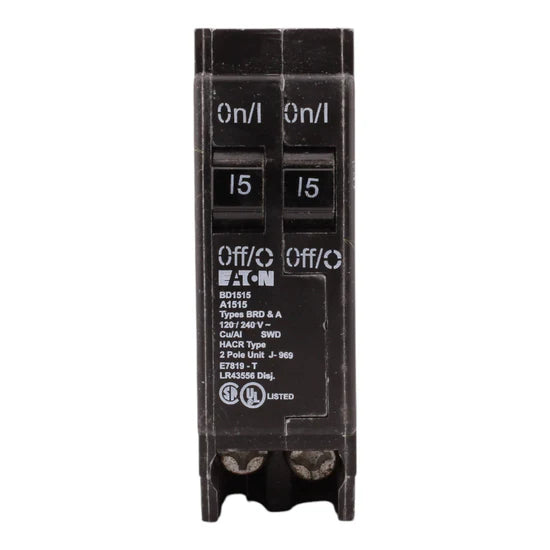

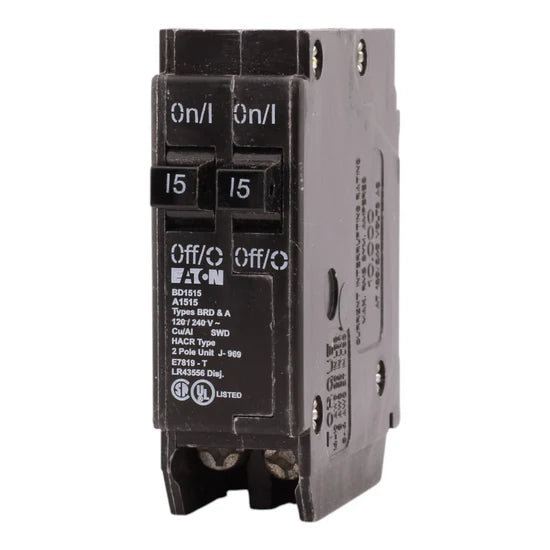

Eaton BD1515 15A/15A Duplex Thermal-Magnetic Circuit Breaker – Plug-On – 120V

The Eaton BD1515 duplex circuit breaker combines two independent 15A single-pole breakers into one compact unit, making it ideal for maximizing space in Eaton BR loadcenters. Designed with a CTL rejection tab for proper panel compatibility, this thermal-magnetic breaker provides dependable overload and short-circuit protection. Its plug-on installation simplifies setup, while HACR and switch-duty ratings make it suitable for residential and light commercial branch circuits.

Voltage and Rating

• Current Rating: 15A / 15A (Duplex)
• Voltage Rating: 120 Volts AC
• Interrupting Capacity: 10 kAIC
• Poles: Single-Pole (two independent circuits)

Key Specifications

• Breaker Type: Type BD Thermal-Magnetic
• Configuration: Duplex (two 1-pole breakers in one body)
• Mounting Method: Plug-On
• Compatibility: Eaton Type BR loadcenters
• Wire Size Compatibility: #14–4 AWG Copper/Aluminum
• Special Feature: CTL rejection tab
• Duty Ratings: HACR Rated, Switch Duty Rated
• Certifications: UL 489
• Federal Spec: W-C375 compliant

Technical Features

• Thermal-magnetic trip mechanism for reliable protection
• Space-saving duplex design
• Quick and secure plug-on installation
• Designed for branch circuit protection
• Independent operation of each 15A circuit

Product Data

• • Manufacturer: Eaton
  • Brand: BR
  • Model Number: BD1515

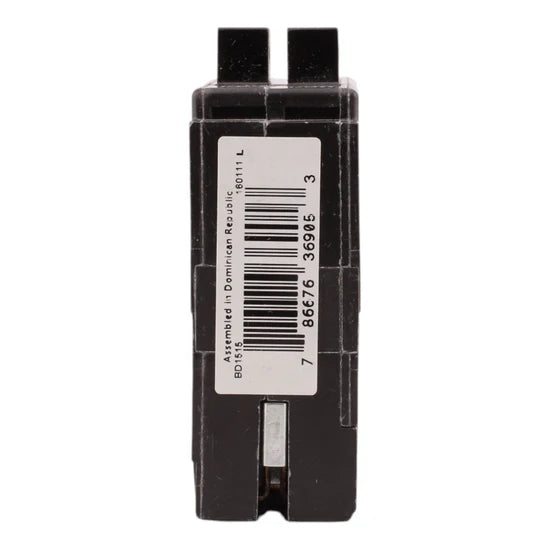

  • UPC: 786676369053
  • Dimensions: Height 2.5 in; Width 1 in; Depth 2.9 in
  • Weight: 0.35 lb
