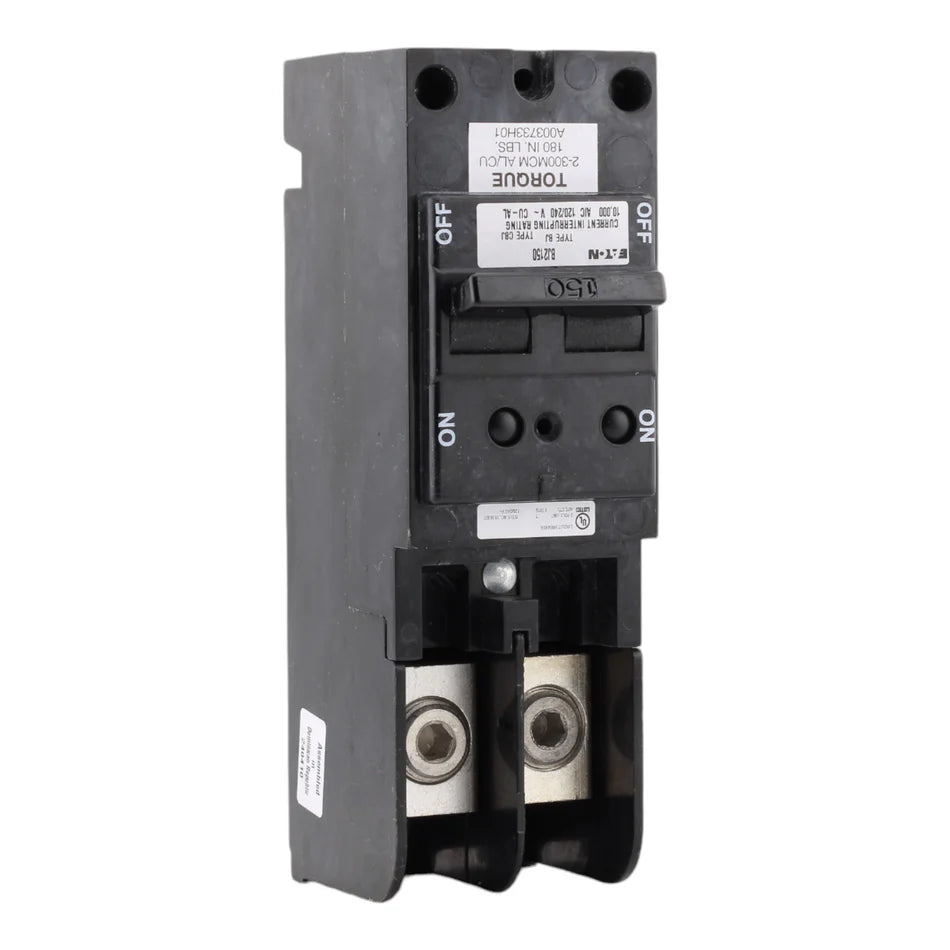

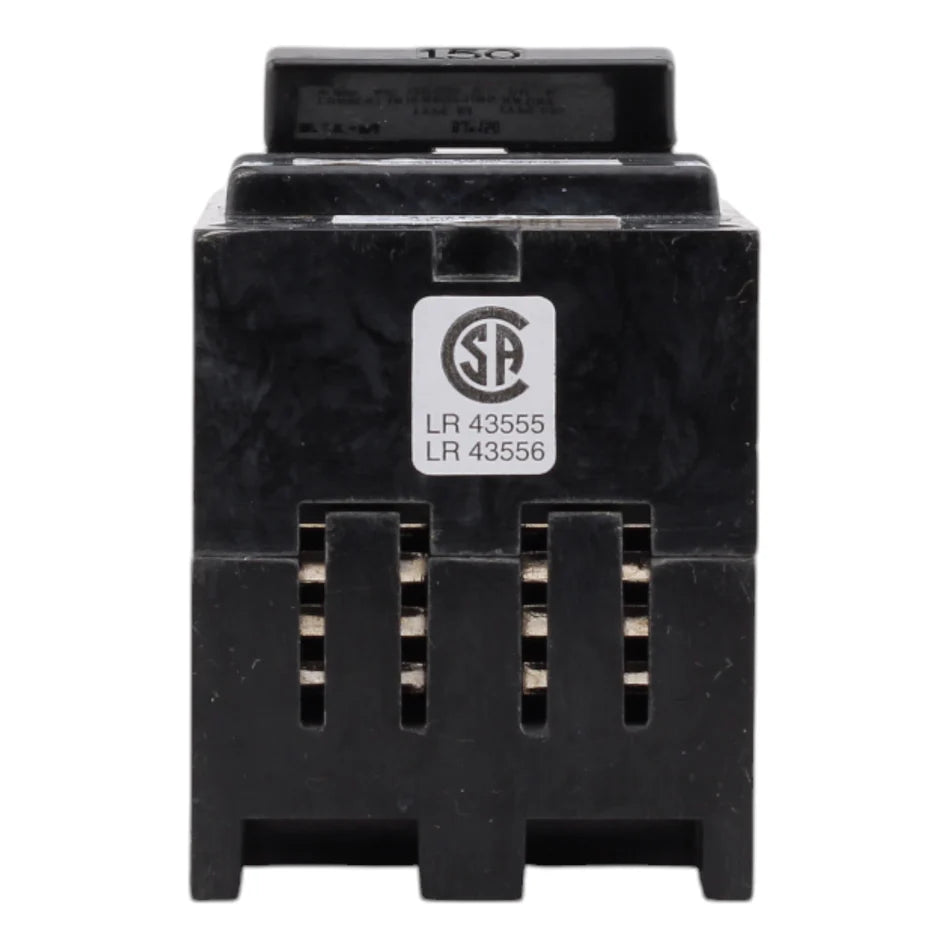

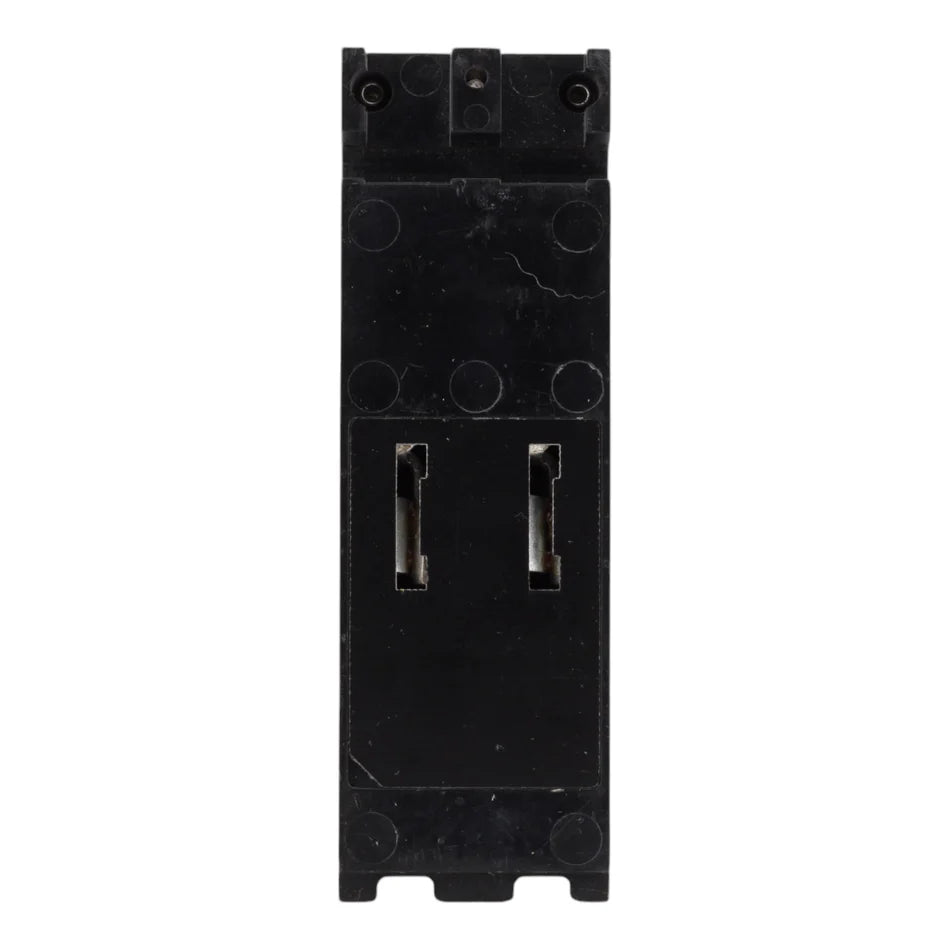

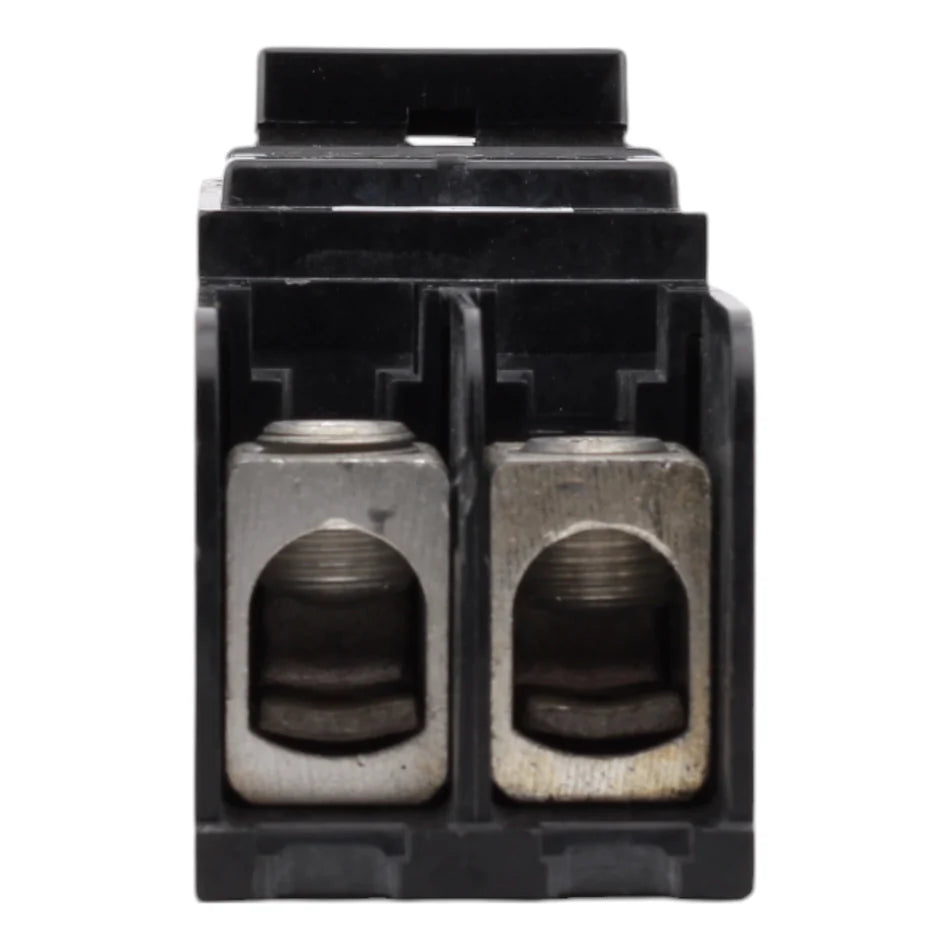

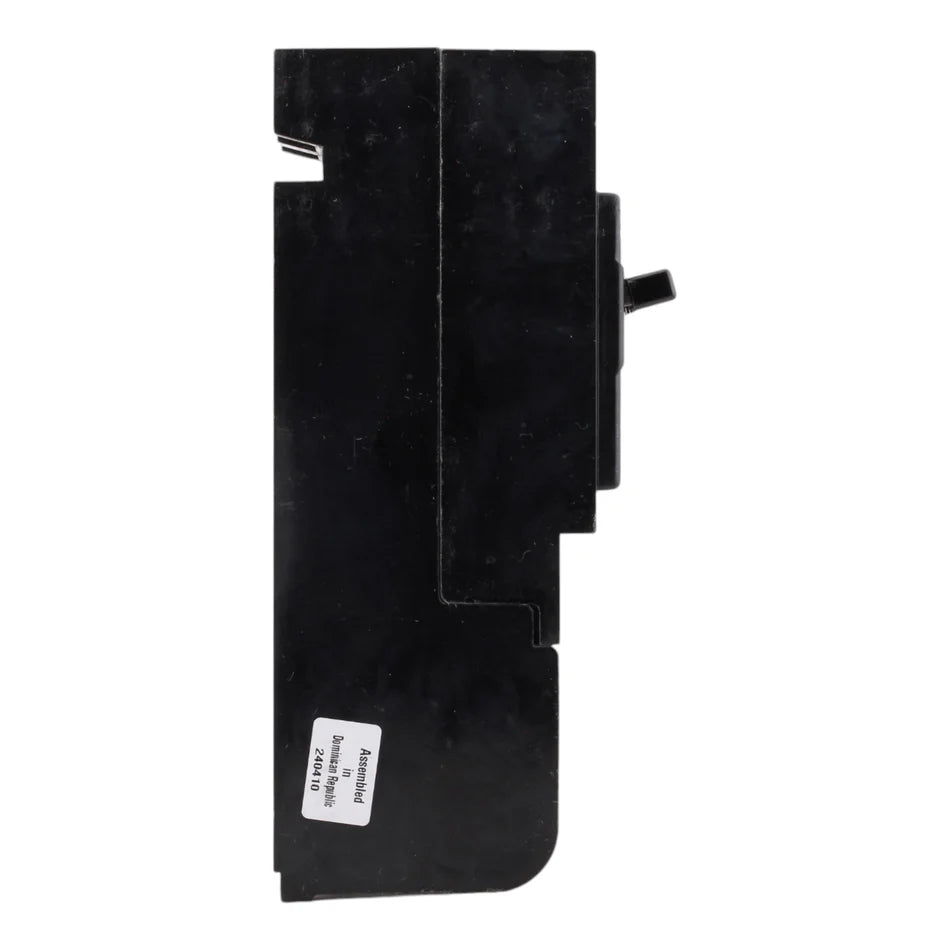

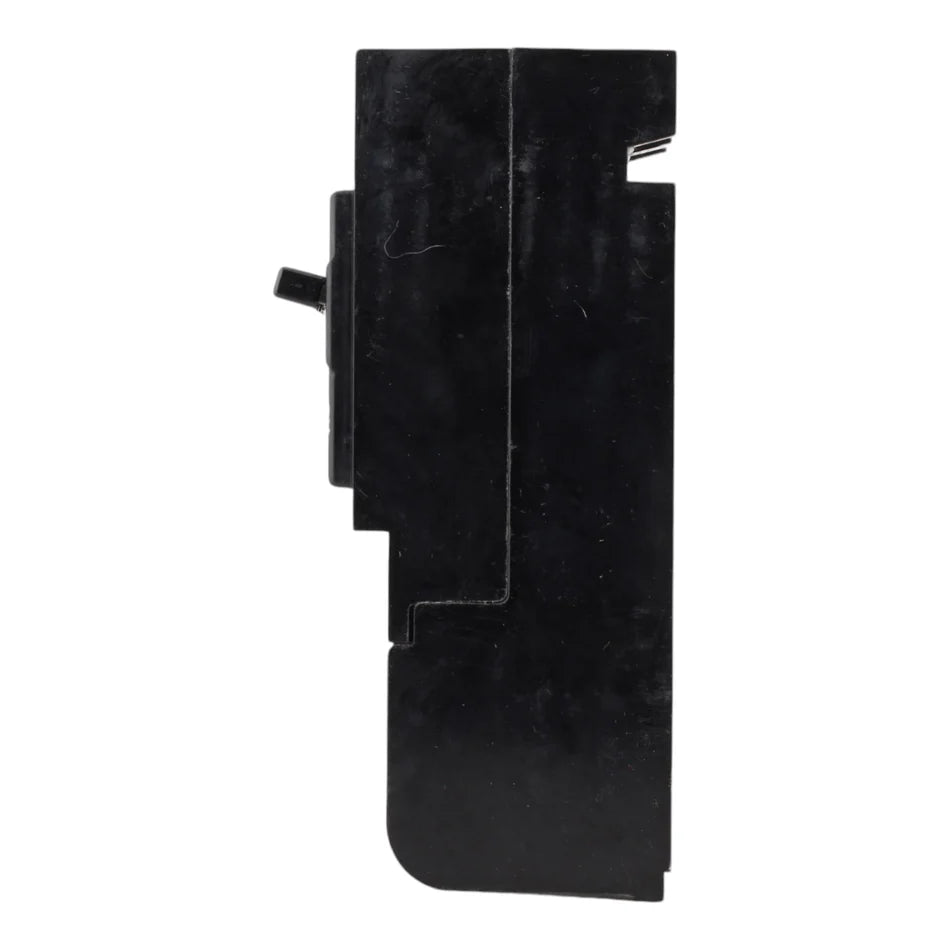

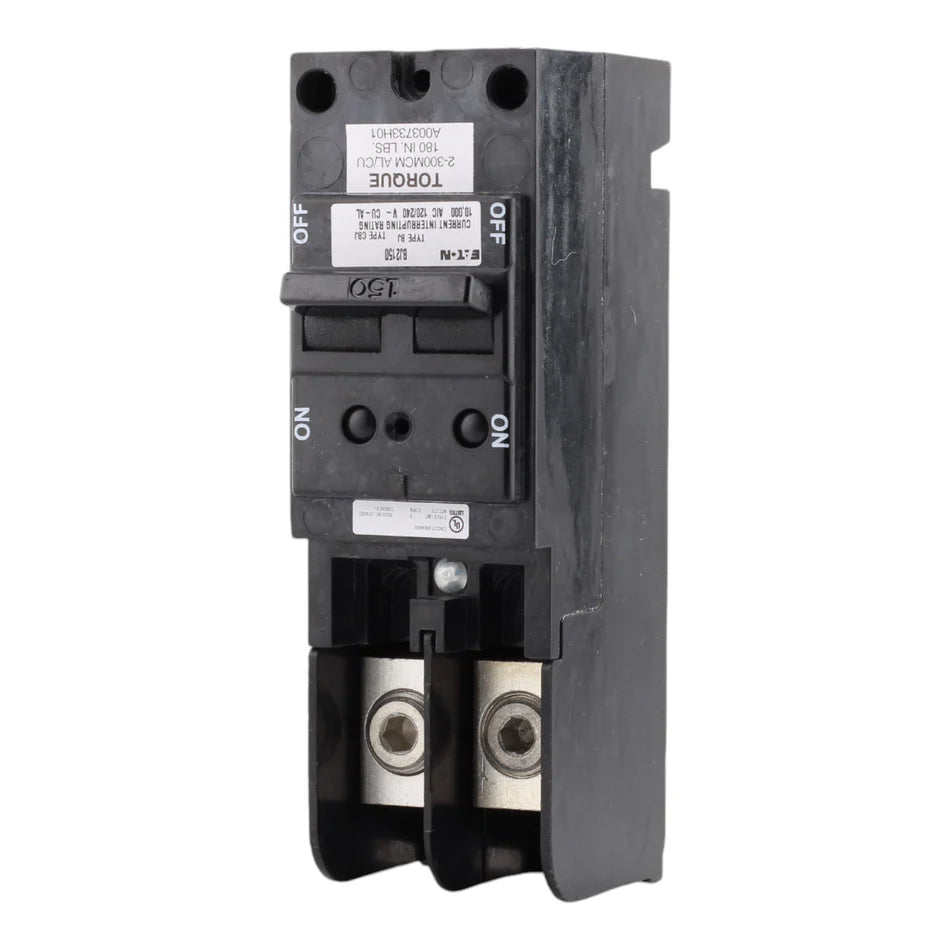

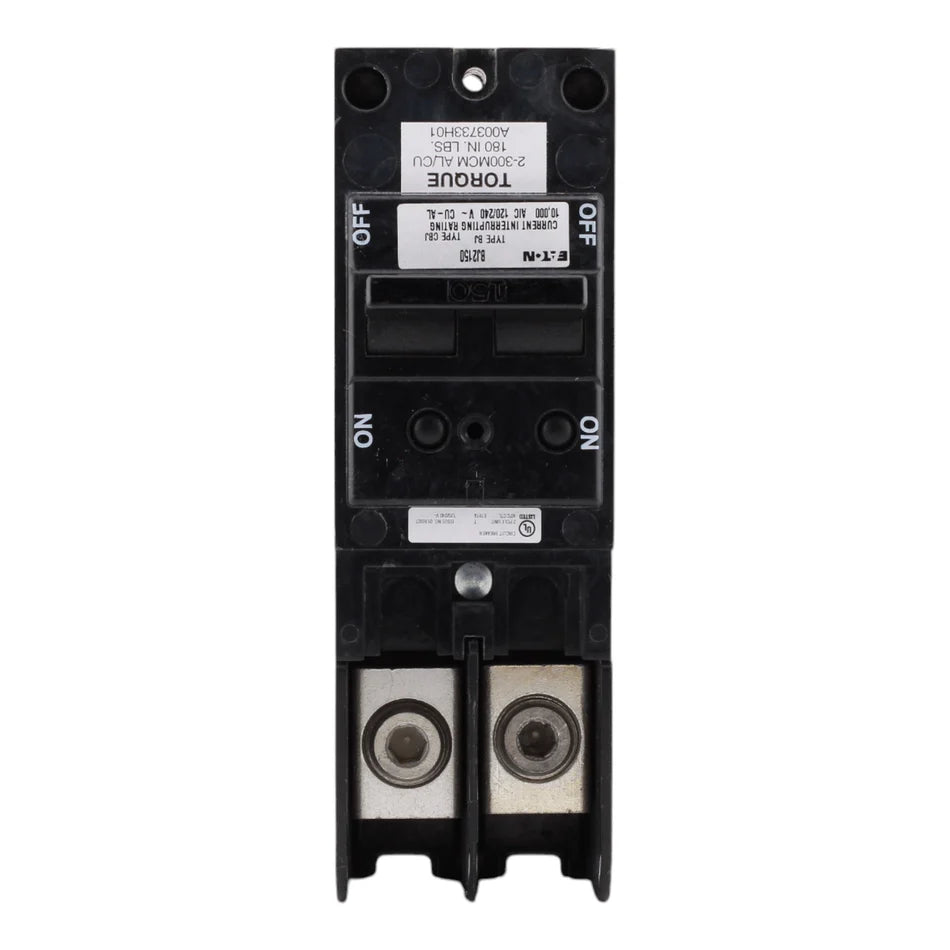

Eaton BJ2150 150 Amp Plug-On Main Circuit Breaker – 2-Pole – 120/240V

The BJ2150 Main Circuit Breaker from Eaton is engineered to deliver reliable main overcurrent and short-circuit protection for residential and light commercial electrical systems. Designed with a compact 1-inch plug-on format and common trip functionality, it installs quickly and is compatible with Eaton load centers rated 150A and above.

Voltage and Rating

• Current Rating: 150 Amps
• Voltage Rating: 120/240 Volts AC
• Short-Circuit Current Rating: 10 kAIC

Key Specifications

• Circuit Breaker Type: Main Circuit Breaker
• Number of Poles: 2-Pole
• Trip Type: Common Trip
• Protection Type: Overcurrent, Short Circuit
• Mounting Type: Plug-On
• Compatibility: Eaton 150A+ Load Centers

Technical Specifications

• Electrical Connection: Plug-On Terminal
• Wire Size Range: #2 AWG to 300 kcmil (Copper or Aluminum)
• Terminal Type: Plug-On
• Dimensions (H × W × D): 2.5 × 3.5 × 6.5 in
• Net Weight: 1.8 lbs

Certifications

• UL 489 Listed
• Federal Specifications Classification: W-C

Product Data

• • Brand: Eaton
  • Manufacturer: Eaton Corporation
  • Model Number: BJ2150
  • UPC: 786676367103
