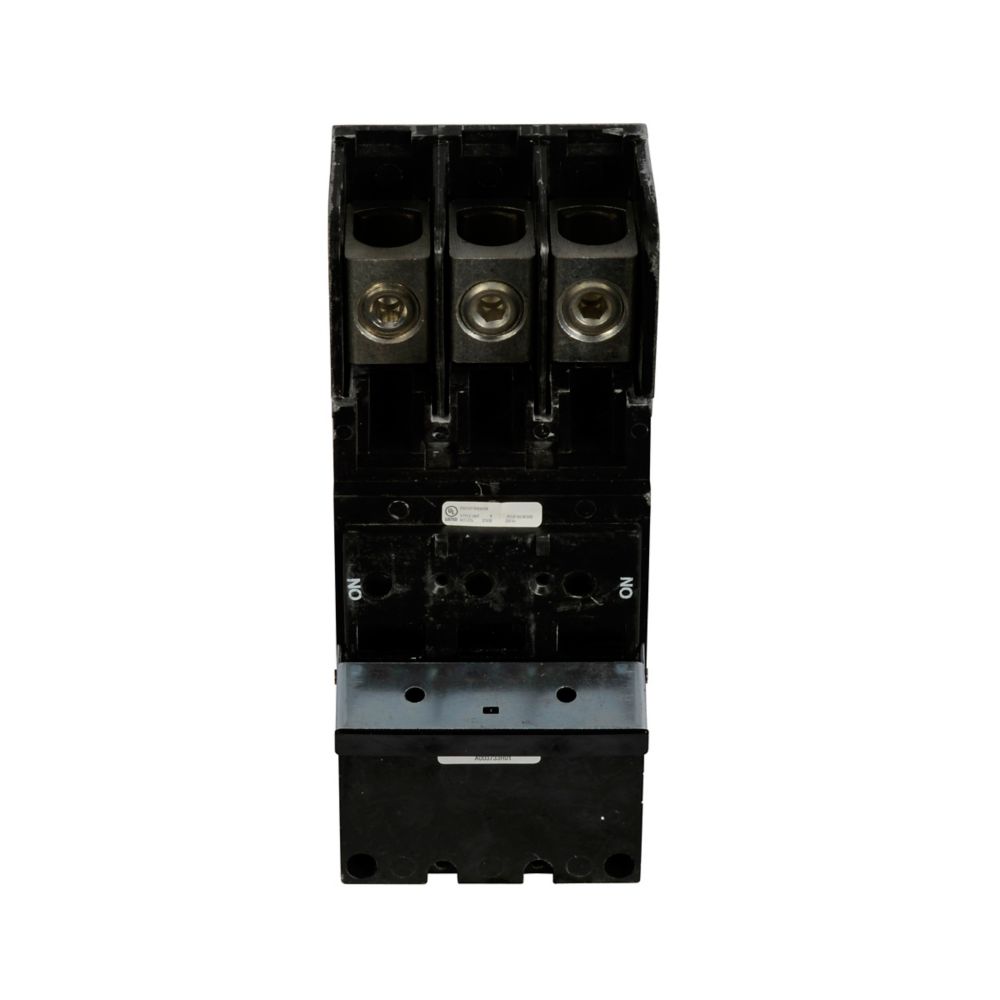

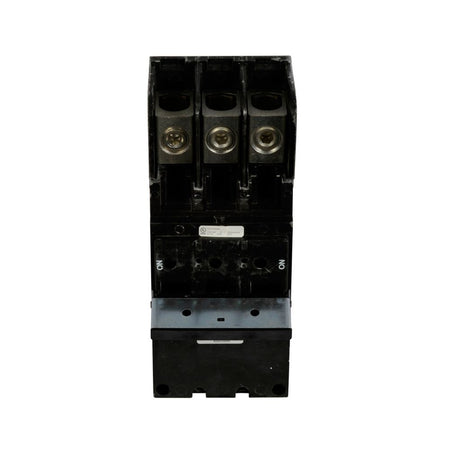

Eaton BJ3200 BJ Thermal Magnetic Circuit Breaker – 200A, 3-Pole, 240V

The Eaton BJ3200 is a thermal magnetic circuit breaker designed for residential and light commercial loadcenter applications. This three-pole breaker provides dependable overcurrent and short-circuit protection and features a plug-on mounting design for secure and efficient installation. It is intended for use in a minimum 150A loadcenter and occupies designated 1-inch pole spaces on both sides of the loadcenter. The unit is UL 489 listed and compliant with Federal Specification W-C375 for reliable safety and performance.

Voltage and Rating

• Current Rating: 200A
• Voltage Rating: 240V
• Interrupt Rating: 10 kAIC
• Number of Poles: 3-Pole
• Trip Type: Common breaker trip
• Circuit Breaker Type: BJ
• Main Circuit Breaker: BJ
• Mounting Method: Plug-on

Key Specifications

• Manufacturer: Eaton
• Catalog Number: BJ3200
• Product Type: Thermal Magnetic Circuit Breaker
• Type: Type BJ 1-inch plug-on main breaker
• Certifications: UL 489
• Compliances: Federal Specifications Classification W-C375
• Catalog Notes: Requires at least a 150A loadcenter; uses three 1-inch pole spaces on left side and three 1-inch pole spaces on right side of loadcenter
• Wire Size: #2 AWG–300 kcmil Cu/Al
• Warranty: Limited lifetime residential, 1 year commercial

Physical Details

• Product Length/Depth: 8 in
• Product Height: 3.5 in
• Product Width: 3.5 in
• Product Weight: 3.2 lb

Product Data

• Application: Residential and light commercial loadcenter protection
• Mounting Style: Plug-on configuration
• System Use: Loadcenter main breaker integration
• Frame Type: BJ series compatibility
