Eaton Cutler-Hammer

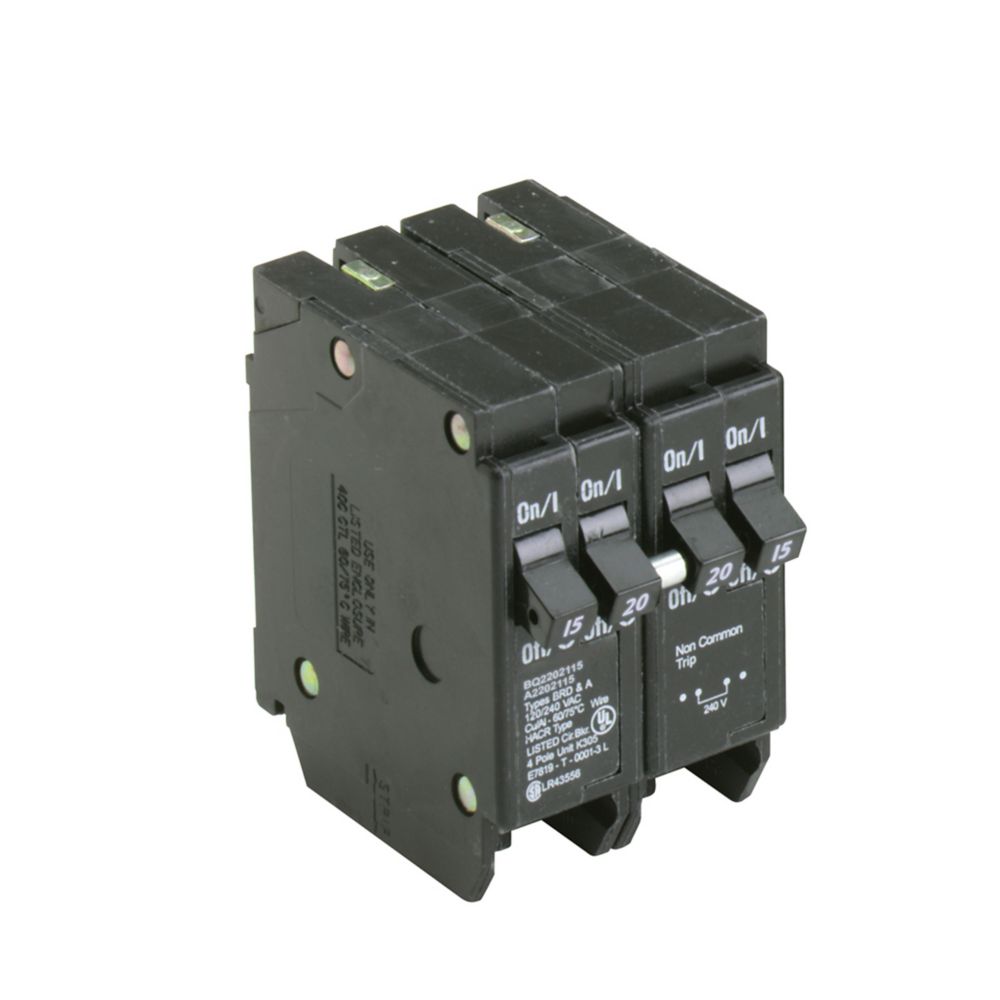

Eaton BQ2202115 BQ Thermal Magnetic Circuit Breaker – (2×15A + 20A), 4-Pole, 120/240V

In stock
SKU: BQ2202115 GTIN/UPC: 786676371353
$71.40
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton BQ2202115 is a thermal magnetic circuit breaker designed for Type BR loadcenters in residential applications. This quadplex, four-pole breaker provides reliable overcurrent protection while supporting multiple circuit configurations in a compact design. It features a plug-on mounting system and includes a rejection tab for enhanced compatibility control. The unit is UL 489 listed and suitable for HACR applications, ensuring safe and dependable operation in residential distribution systems.

Voltage and Rating

  • Current Rating: (2) Single-Pole 15A, (1) Two-Pole 20A
  • Voltage Rating: 120/240V at 20A, 120V at 20A
  • Interrupt Rating: 10 kAIC
  • Number of Poles: 4-Pole
  • Trip Type: T194
  • Circuit Breaker Type: BQ
  • Main Circuit Breaker: BQ
  • Mounting Method: Plug-on

Key Specifications

  • Manufacturer: Eaton
  • Catalog Number: BQ2202115
  • Product Type: Thermal Magnetic Circuit Breaker
  • Type: Type BQ 1-inch CTL plug-on circuit breaker
  • Used With: Type BR Loadcenters
  • Certifications: UL 489
  • Compliances: Federal Specifications Classification W-C375
  • Catalog Notes: HACR rated; 15A and 20A single poles are switch duty rated
  • Special Features: Includes rejection tab feature
  • Wire Size: #14–4 AWG Cu/Al
  • Quantity: 28
  • Warranty: Limited lifetime residential, 1 year commercial

Physical Details

  • Product Length/Depth: 3 in
  • Product Height: 3 in
  • Product Width: 2 in
  • Product Weight: 0.76 lb

Product Data

  • Application: Residential loadcenter branch circuit protection
  • Mounting Style: Plug-on configuration
  • System Use: Type BR loadcenter multi-circuit breaker solution
  • Frame Type: BQ series compatibility
  • Type Thermal Magnetic
  • Vendor Eaton Cutler-Hammer
  • Brand Eaton
