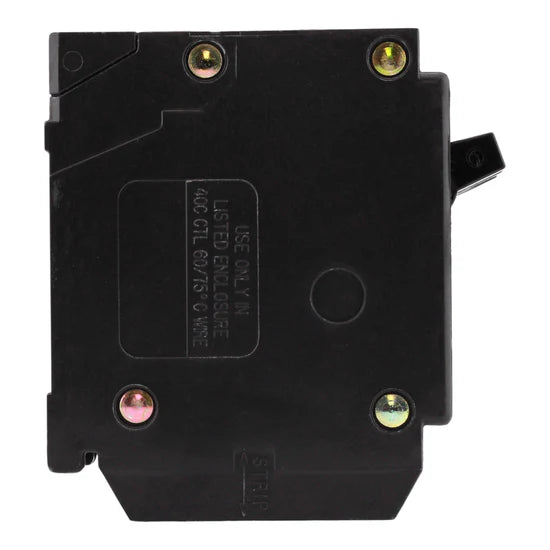

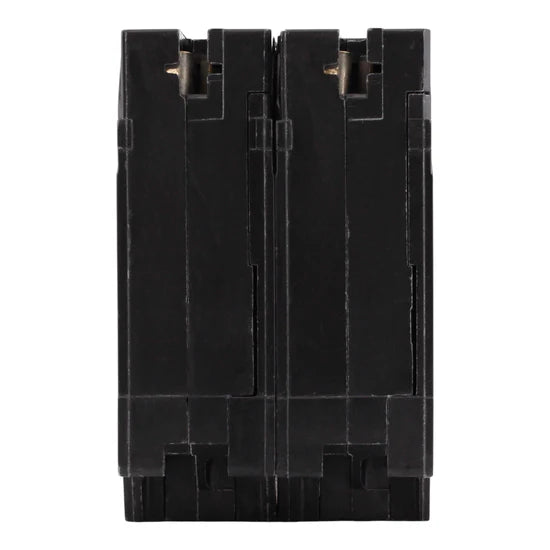

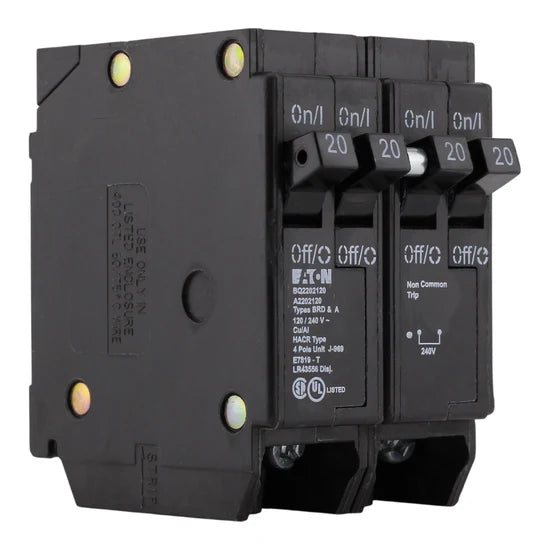

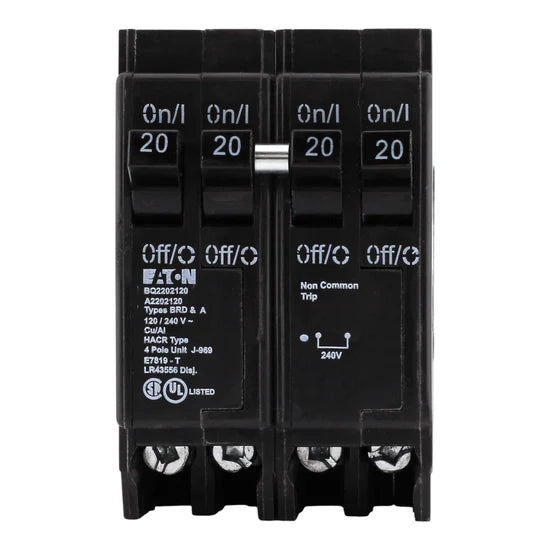

Eaton BQ2202120 20A/20A + 20A 2P 4P Quadplex Thermal-Magnetic Circuit Breaker – Plug-On – 120/240V

The Eaton BQ2202120 is a 4-pole quadplex circuit breaker combining two independent 20A single-pole breakers with one common-trip 20A two-pole breaker in a space-saving 1-inch per pole plug-on design. Featuring independent trips for the outer single-pole breakers and a common trip for the inner two-pole breaker, it includes a rejection tab for CTL compliance. Ideal for Eaton BR loadcenters, it provides reliable 120/240V overload and short-circuit protection in residential and light commercial applications.

Electrical Ratings:

• Amperage: Outer: (2) 20A Single-Pole; Inner: (1) 20A Two-Pole (common trip)
• Poles: 4-Pole configuration
• Voltage: 120/240 Volts AC

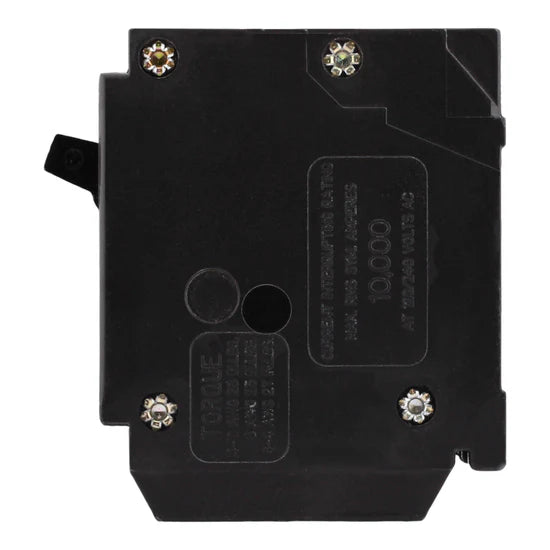

• Interrupt Rating: 10 kAIC

Key Specifications:

• Breaker Type: Thermal-Magnetic Quadplex (BQ)
• Mounting Mode: Plug-On
• Connections Terminals: Plug-On (1-inch CTL format with rejection tab)

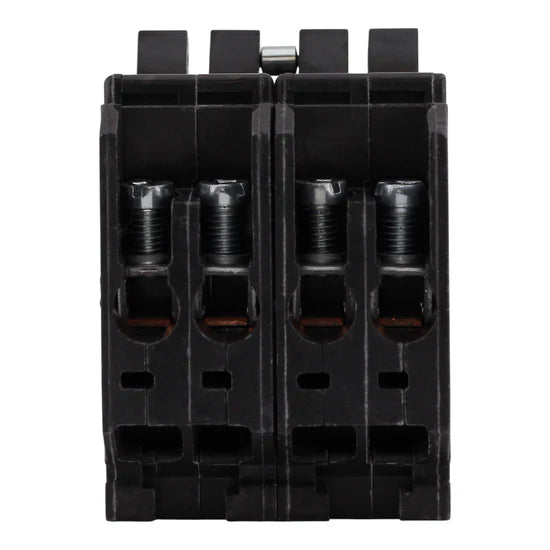

• Wire Size: #14–4 AWG Cu/Al
• Tightening Torque: 25 lb-in
• Special Features: Independent trip on outer single-pole breakers, common trip on inner two-pole breaker, CTL rejection tab for code compliance

Dimensions & Weight:

• Height: 2.5 in
• Width: 2.0 in
• Depth: 3.0 in
• Weight: 0.75 lbs

Certifications:

• UL 489 Listed
• HACR Rated
• Federal Specifications W-C375

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: BR (for Eaton BR loadcenters and equipment)
• Model Number: BQ2202120

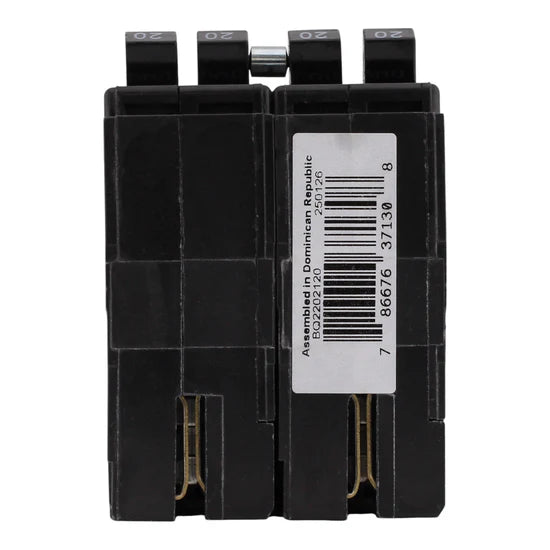

• UPC: 786676371308
