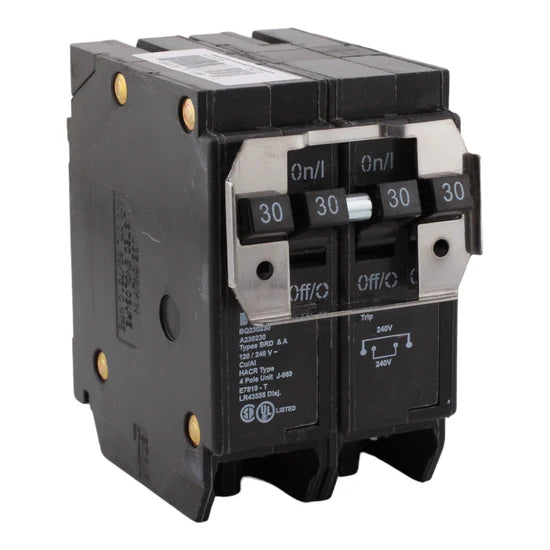

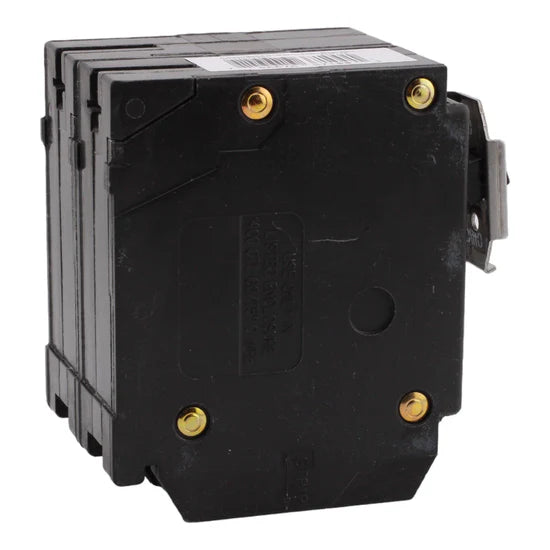

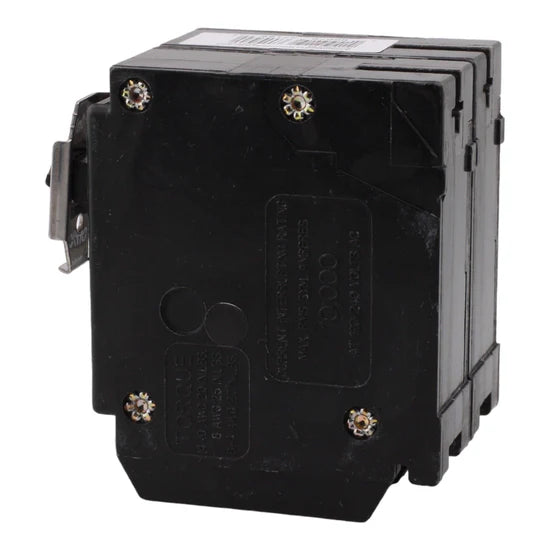

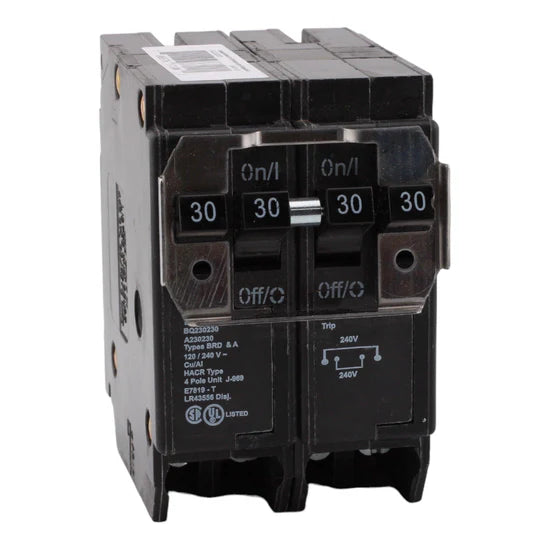

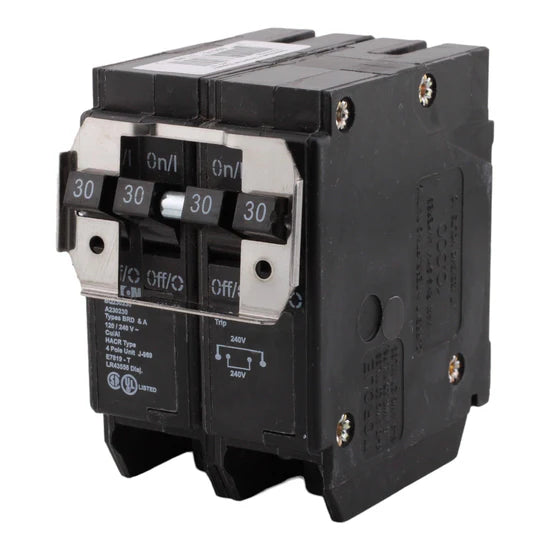

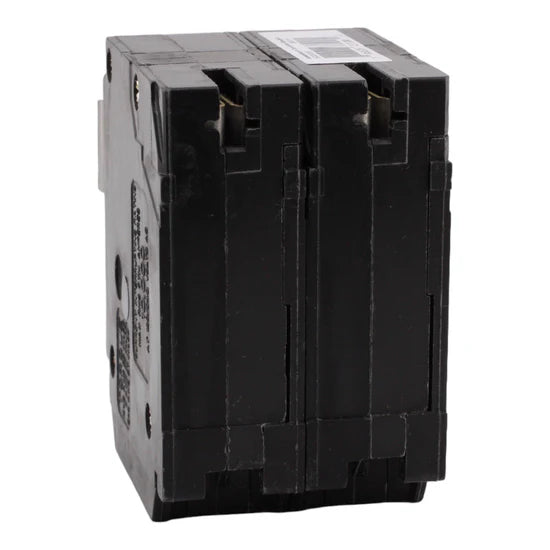

Eaton BQ230230 Quad Circuit Breaker – (2) 30A, 4-Pole, 120/240V

The Eaton BQ230230 is a Type BQ quad (CTL) plug-on circuit breaker that combines two independent 30-amp double-pole breakers into one compact unit. Designed for Eaton Type BR load centers, this thermal-magnetic breaker delivers dependable overload and short-circuit protection while maximizing panel space. Its plug-on mounting and rejection tab feature help ensure fast, secure, and code-compliant installation.

Voltage and Rating

• Current Rating: (2) Two-Pole 30 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupt Rating (SCCR): 10 kA AIR

Key Specifications

• Type: Type BQ 1-Inch CTL Plug-On Circuit Breaker
• Breaker Type: Thermal Magnetic
• Trip Type: Independent Trip
• Number of Poles: 4 Poles (Quad configuration)
• Mounting Type: Plug-On
• Compatibility: Eaton Type BR Load Centers

Electrical Details

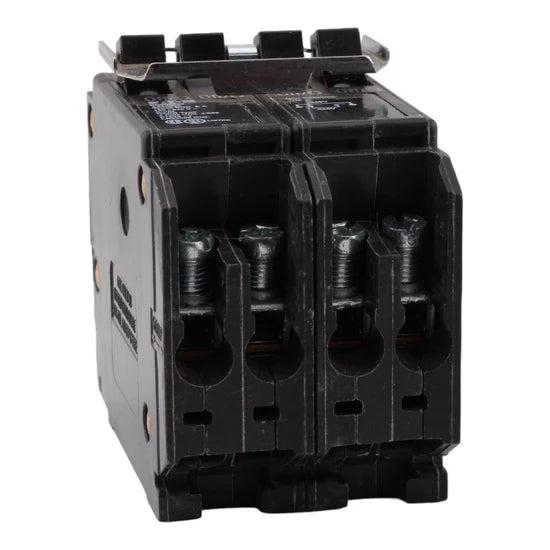

• Electrical Connection: Standard Lug
• Terminal Type: Plug-On
• Wire Size Range: #14–4 AWG Copper/Aluminum

Physical Specifications

• Dimensions (H × W × D): 3.1 × 3.2 × 1.4 in
• Weight: 2.5 lb

Certifications & Compliance

• UL 489 Listed
• Federal Specifications Classification W-C375
• HACR Rated

Key Features & Benefits

• ✔ Space-Saving Quad Design – Two 2-pole 30A breakers in one unit
• ✔ Reliable Protection – Guards against overloads and short circuits
• ✔ Quick Plug-On Installation – Simplifies panel mounting
• ✔ Rejection Tab Safety – Helps prevent improper installation
• ✔ HACR Rated – Suitable for HVAC and refrigeration circuits

Product Data

• • Manufacturer: Eaton
  • Model Number: BQ230230
  • UPC: 786676371001
