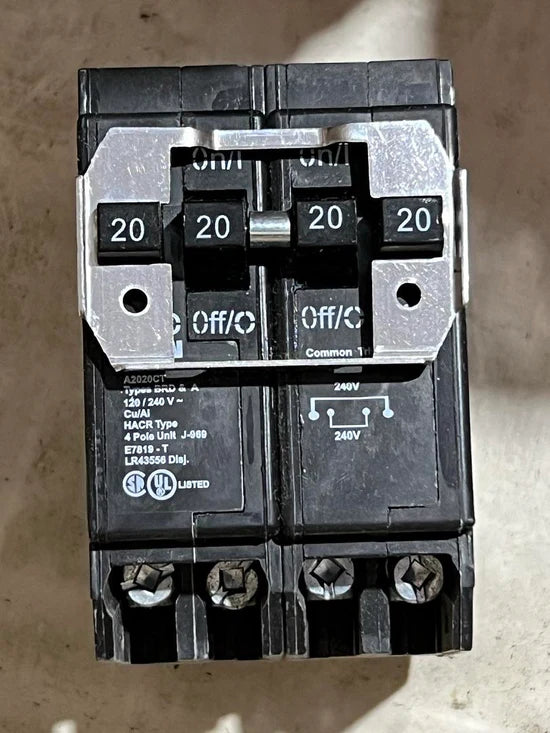

The Eaton BQC220220 thermal magnetic circuit breaker provides reliable multi-circuit protection with two independent 20 Amp double-pole breakers in a single unit. Designed for Type BR load centers, this 4-pole breaker delivers dependable overload and short-circuit protection while maximizing panel efficiency. The plug-on mounting enables quick and secure installation, and the common trip mechanism ensures coordinated multi-pole protection for residential, commercial, and light industrial applications.
Voltage and Rating
- Current Rating: (2) 20 Amp two-pole breakers
- Voltage Rating: 120/240 Volts AC
- Short Circuit Current Rating: 10 kA AIR
Key Specifications
- Type: Type BQC 1-Inch CTL Plug-On Circuit Breaker
- Circuit Breaker Type: Thermal Magnetic
- Number of Poles: 4-Pole
- Mounting Type: Plug-On
- Trip Type: Common breaker trip
- Compatibility: Type BR load centers
Technical Specifications
- Electrical Connection: Standard lug
- Wire Size Range: #14–4 AWG Copper/Aluminum
- Terminal Type: Plug-On
- Protection Function: Overload and short-circuit protection
- Certifications: UL 489, Federal Specifications Classification W-C375, HACR Rated
Key Features and Benefits
- Reliable circuit protection for overloads and short circuits
- Dual 20A double-pole breakers in a single unit for panel efficiency
- Plug-on mounting for fast installation in Type BR load centers
- 10kA interrupting capacity for high-performance protection
- Rejection tab feature prevents improper installation
- UL Listed and Federal Spec compliant
Applications
- Residential and commercial load centers
- Industrial electrical protection for warehouses and workshops
- HACR circuits for heating, air conditioning, and refrigeration
Product Data
-
- Brand: Eaton
- Manufacturer: Eaton Corporation
- Model Number: BQC220220
- UPC: 786676371841
- Dimensions (H × W × D): 2.4 × 3.0 × 2.0 inches
- Weight: 0.75 lb
