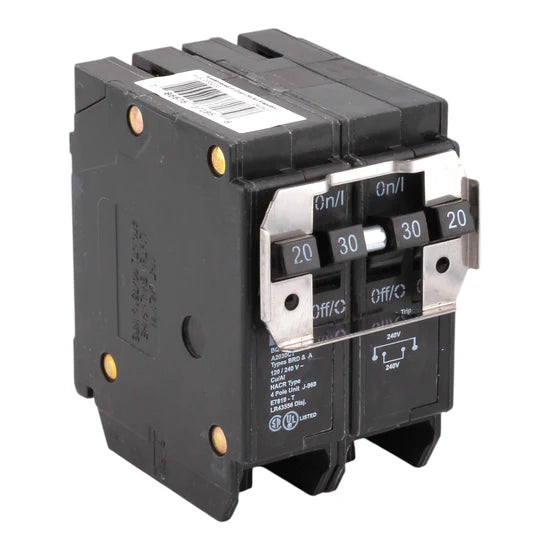

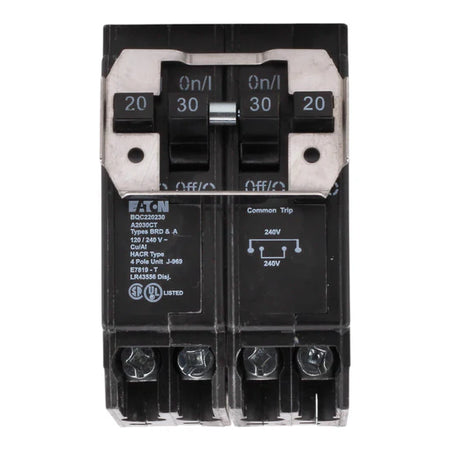

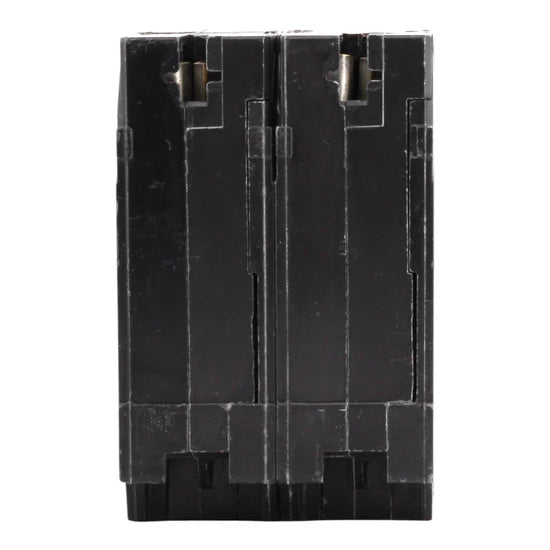

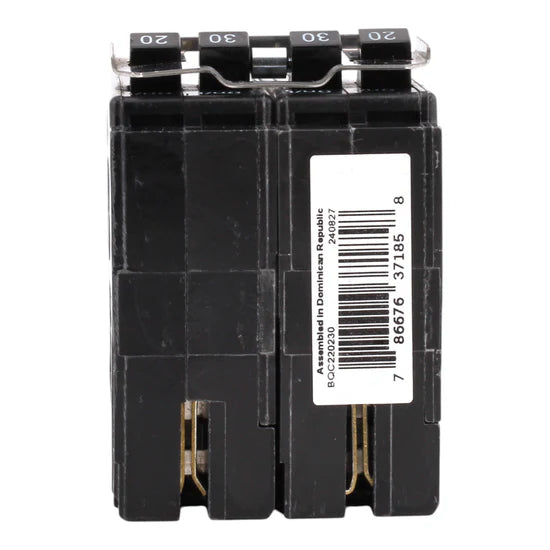

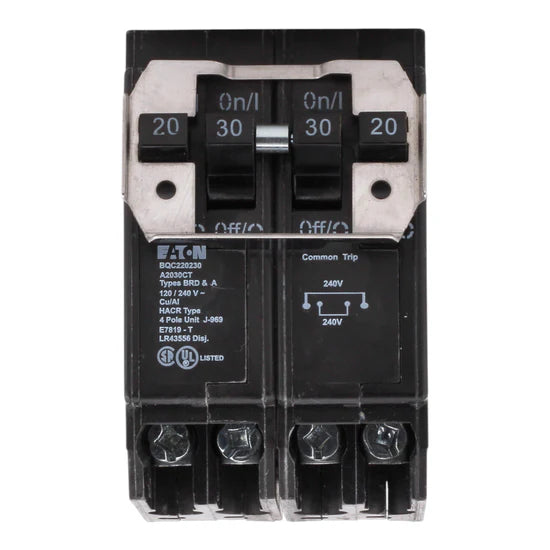

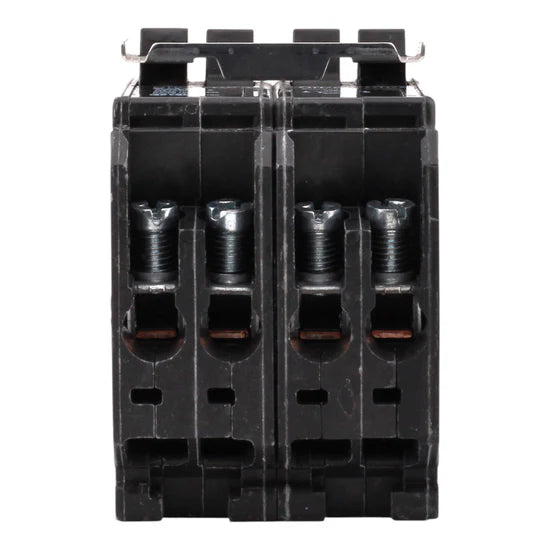

The Eaton BQC220230 quadplex CTL plug-on circuit breaker provides reliable multi-circuit protection with one 20A two-pole breaker and one 30A two-pole breaker in a single 4-pole unit. Designed for Eaton Type BR loadcenters, this thermal-magnetic breaker features a common trip for coordinated protection, a plug-on mounting for quick installation, and a 10 kA interrupt rating for dependable overload and short-circuit protection in residential and light commercial applications.
Voltage and Rating
- Amperage Rating: (1) 20A two-pole, (1) 30A two-pole
- Voltage Rating: 120/240 Volts AC
- Interrupt Rating: 10 kAIC
Key Specifications
- Type: Quadplex CTL Circuit Breaker
- Number of Poles: 4-Pole
- Mounting Mode: Plug-On
- Connections Terminals: Plug-On
- Special Features: Rejection tab feature, common breaker trip
- Compatibility: Eaton Type BR loadcenters
Technical Specifications
- Circuit Protection: Thermal magnetic
- Wire Size: #14–4 AWG Copper/Aluminum
- Tightening Torque: 35.4 lb-in
- Protection Function: Overload and short-circuit protection
- Certifications: UL Listed, HACR Rated
Product Data
-
- Brand: Eaton
- Manufacturer: Eaton
- Model Number: BQC220230
- UPC: 786676371858
- Dimensions (H × W × D): 2.4 in × 3.0 in × 2.0 in
- Weight: 0.75 lb
