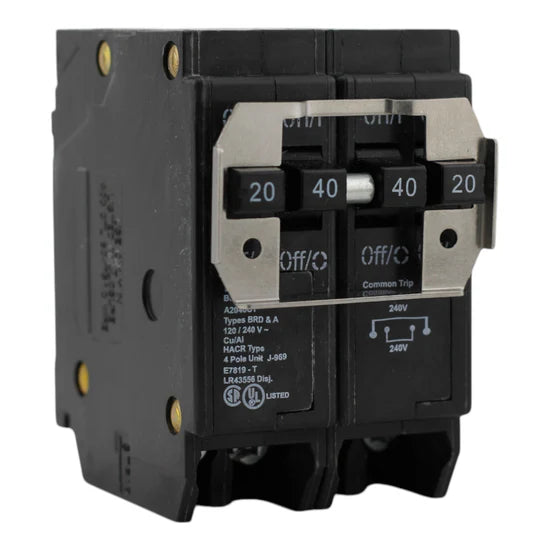

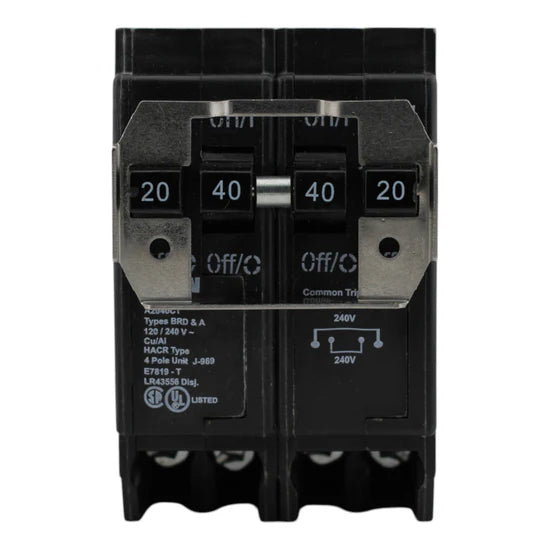

The Eaton BQC220240 quadplex circuit breaker provides multi-circuit protection with one 20A two-pole breaker and one 40A two-pole breaker combined in a single 4-pole unit. Designed for Type BR load centers, this thermal-magnetic breaker features a common trip for coordinated protection, a plug-on mounting design for fast installation, and a 10 kA interrupt rating for reliable overload and short-circuit performance in residential and commercial applications.
Voltage and Rating
- Amperage Rating: (1) 20A two-pole, (1) 40A two-pole
- Voltage Rating: 120/240 Volts AC
- Short Circuit Current Rating: 10 kA
Key Specifications
- Type: Quadplex Circuit Breaker
- Number of Poles: 4-Pole (two 2-pole breakers combined)
- Mounting Type: Plug-On
- Connection Type: Terminal
- Features: 1-Inch CTL design, rejection tab feature, common breaker trip
- Compatibility: Type BR load centers
Technical Specifications
- Circuit Protection: Thermal magnetic
- Wire Size Compatibility: 14–4 AWG Copper/Aluminum
- Protection Function: Overload and short-circuit protection
- Certifications: UL 489 Listed, HACR Rated
Product Data
-
- Brand: Eaton BR
- Manufacturer: Eaton
- Model Number: BQC220240

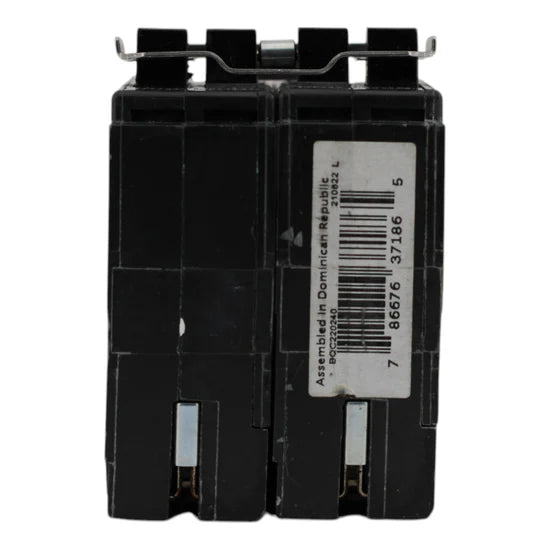

- UPC: 786676371865
- Dimensions (H × W × D): 3 in × 2 in × 3 in
- Weight: 0.9 lb
