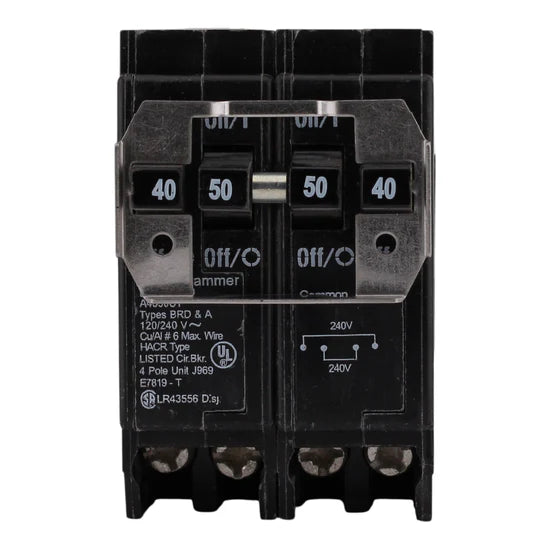

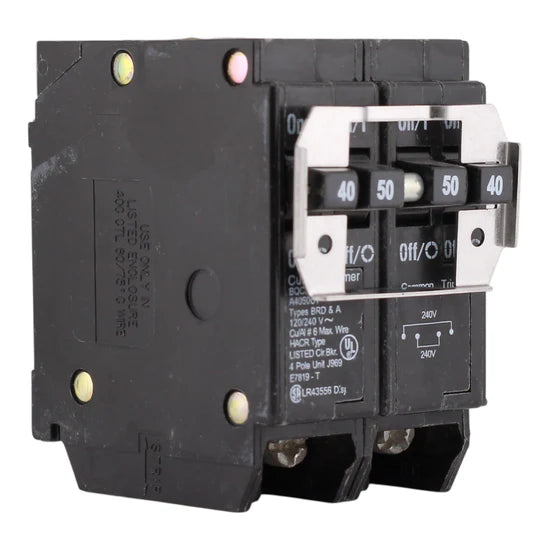

The Eaton BQC240250 quadplex circuit breaker delivers reliable multi-circuit protection by combining a 40A two-pole breaker and a 50A two-pole breaker in a single 4-pole unit. Designed for Type BR loadcenters, this thermal-magnetic breaker features a common trip for coordinated protection and a plug-on mounting for fast installation. With a 10 kA interrupt rating, it ensures dependable overload and short-circuit protection in residential panels while saving space in compact load centers.
Voltage and Rating
- Amperage Rating: (1) 40A two-pole, (1) 50A two-pole
- Voltage Rating: 120/240 Volts AC
- Interrupt Rating: 10 kAIC
Key Specifications
- Type: Quadplex Circuit Breaker
- Number of Poles: 4-Pole
- Mounting Mode: Plug-On
- Trip Type: Common breaker trip
- Wire Size: #14–4 AWG Copper/Aluminum
- Compatibility: Eaton Type BR loadcenters
Technical Specifications
- Circuit Protection: Thermal magnetic
- Protection Function: Overload and short-circuit protection
- Certifications: UL Listed, HACR Rated, CSA
Product Data
-
- Brand: Eaton (Cutler-Hammer)
- Manufacturer: Eaton
- Model Number: BQC240250

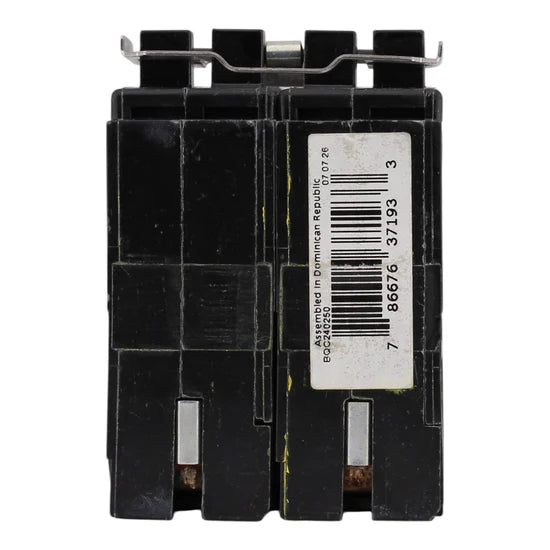

- UPC: 786676371933
- Dimensions (H × W × D): 2.6 × 2 × 3 in
- Weight: 0.8 lb
