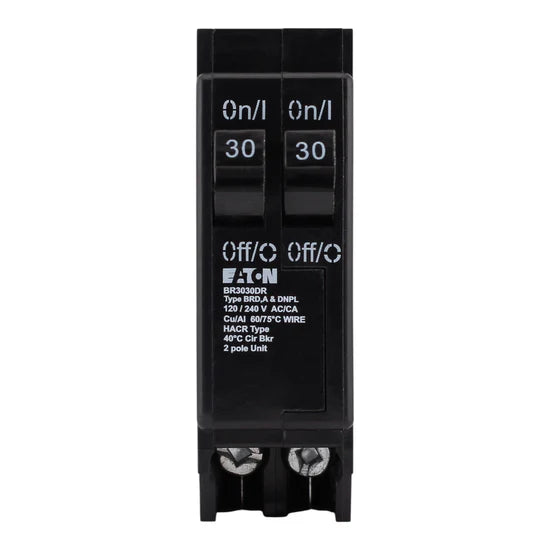

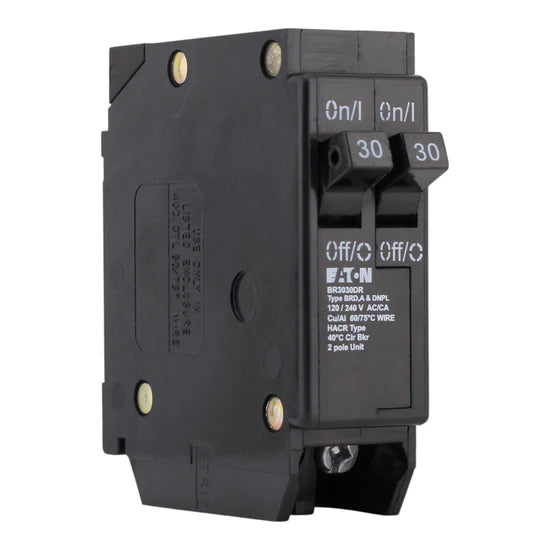

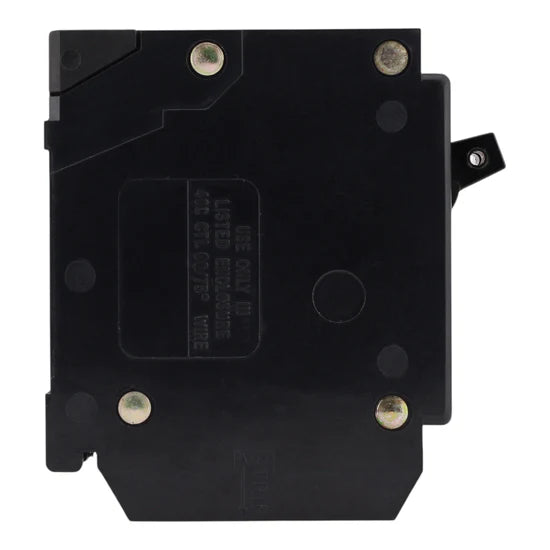

Eaton BR BR3030DR 30-30A 1-Pole Non-CTL Duplex – Plug-On – 120/240V AC

The Eaton BR BR3030DR 30-30A 1-Pole Non-CTL Duplex – Plug-On – 120/240V AC provides reliable 30-30 Amp, 1-Pole thermal magnetic protection for 120/240V AC circuits in Eaton BR loadcenters. Designed as a Non-CTL duplex breaker with independent trip, it allows two 30A circuits in a single 1-inch space and fits Cutler-Hammer, Challenger, Westinghouse, Bryant, and Siemens panels without a rejection clip.

Voltage and rating

• Current Rating: 30-30 Amps (Outside Pole / Inside Pole)
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Thermal Magnetic Duplex (Independent Trip, Non-CTL, No Rejection Clip)
• Number of Poles: 1-Pole (Tandem / Duplex — two 30A circuits in one space)
• Mounting Type: Plug-in
• Product Range: BR (for Eaton Type BR loadcenters — also fits Cutler-Hammer, Challenger, Westinghouse, Bryant, and Siemens panels)
• Application: Residential branch circuit protection

Technical Specifications

• Wire Size Range: #14–4 AWG Cu/Al
• Operating Mechanism: Thermal-magnetic
• Certifications: UL Listed (UL 489), HACR Rated

Product Data

• Manufacturer: Eaton
• Brand: Eaton / Cutler-Hammer
• Model Number: BR3030DR

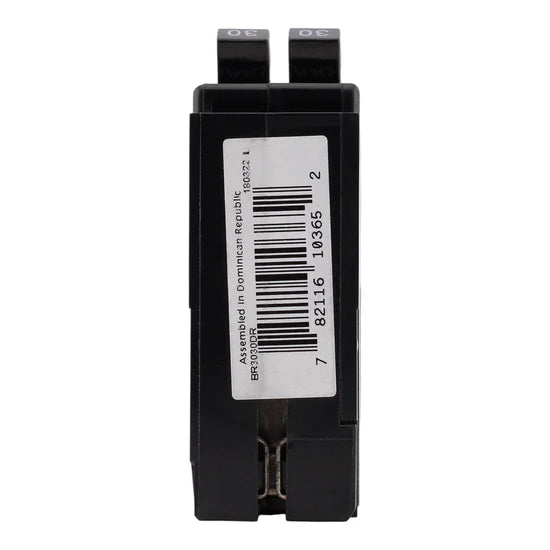

• UPC: 782116103652
• Dimensions: Standard 1-inch breaker width (fits loadcenter slots)
• Weight: Approx. 0.8–0.9 lbs
