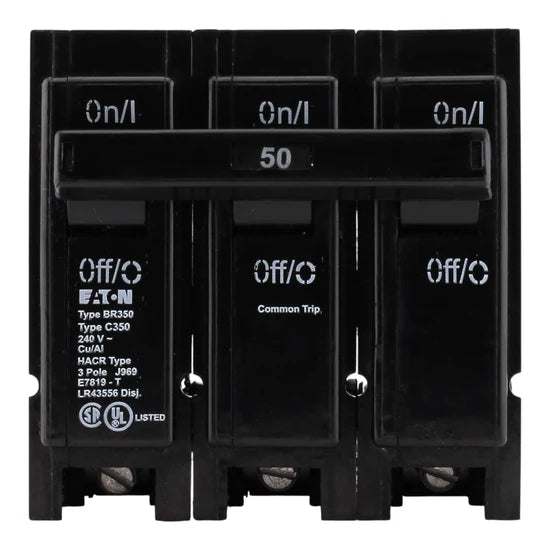

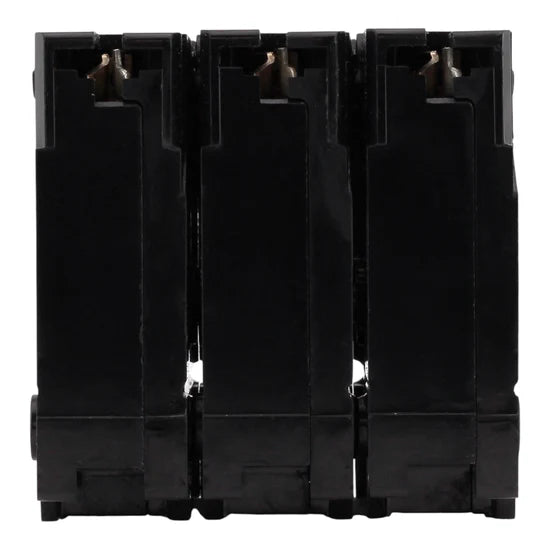

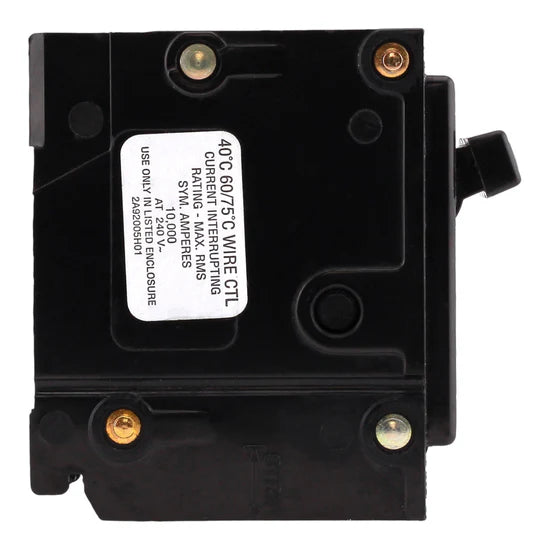

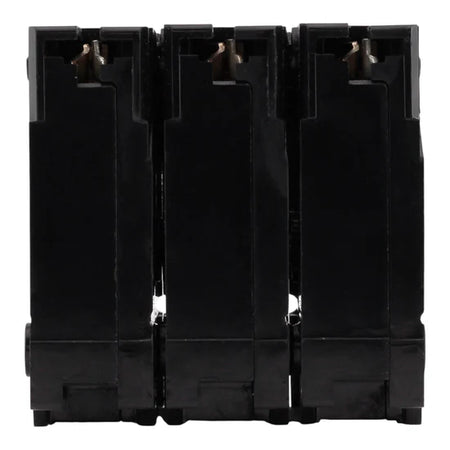

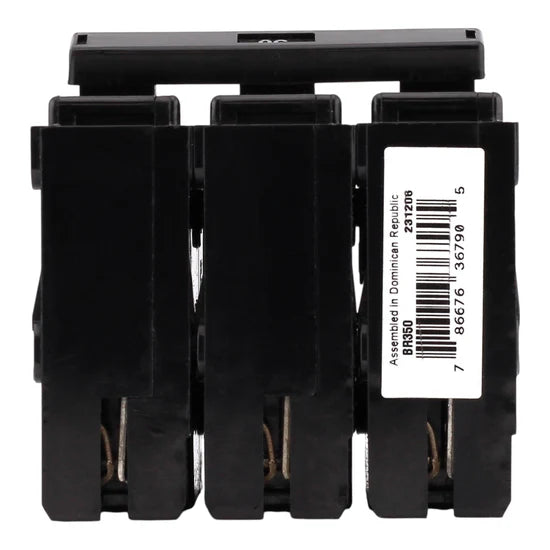

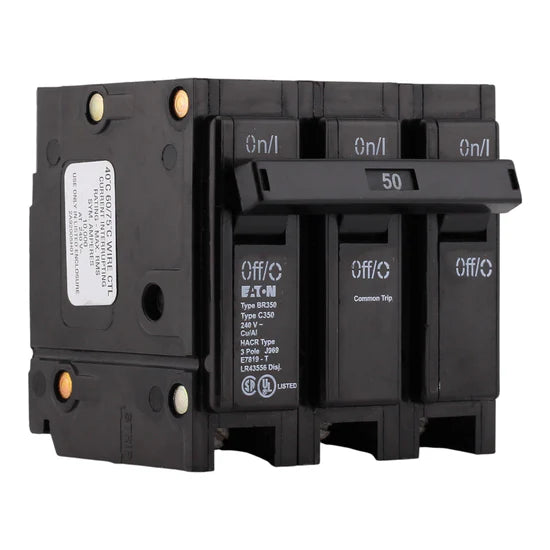

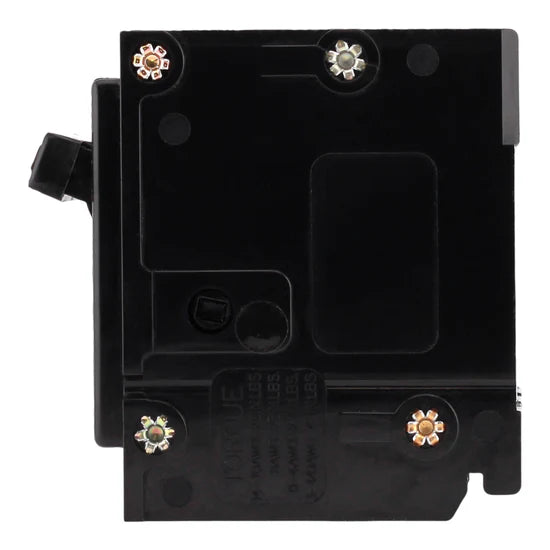

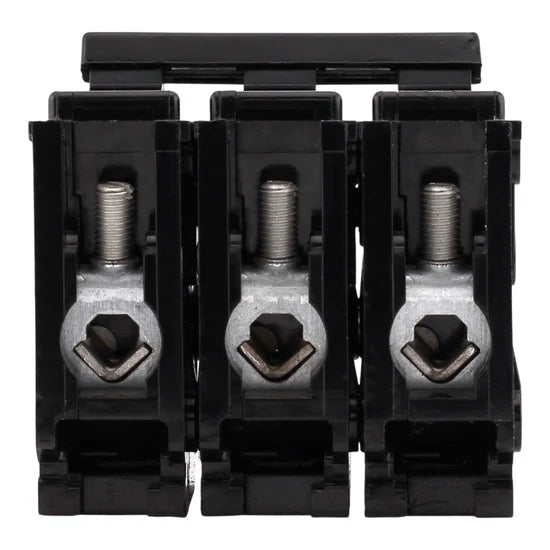

Eaton BR BR350 50A 3P Thermal-Magnetic Circuit Breaker – Plug-On – 240V

The Eaton BR BR350 is a 3-pole thermal-magnetic plug-on circuit breaker designed for Eaton BR loadcenters. Delivering 50A protection at 240V, it features a common trip configuration and a 10kA interrupt rating, providing reliable overload and short-circuit protection for residential and light commercial applications. Its plug-on mounting ensures quick and secure installation.

Electrical Ratings:

• Amperage: 50 Amps
• Poles: 3-Pole
• Voltage: 240 Volts AC
• Interrupt Rating: 10 kAIC

Key Specifications:

• Breaker Type: Thermal-Magnetic
• Mounting Mode: Plug-On
• Connections Terminals: Plug-On
• Wire Size: #14–4 AWG Cu/Al
• Tightening Torque: 25 lb-in
• Trip Type: Common breaker trip

Dimensions & Weight:

• • Height: 2.6 in
  • Width: 2.9 in
  • Depth: 2.9 in
  • Weight: 0.9 lbs

Certifications:

• UL 489 Listed

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: BR (for Eaton BR Loadcenters and equipment)
• Model Number: BR350
• UPC: 786676367905
