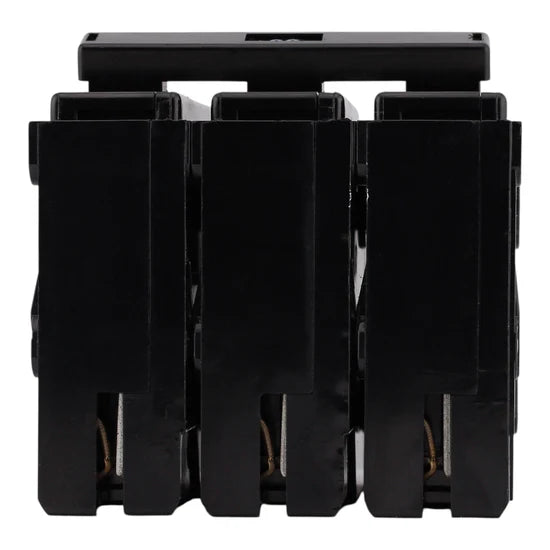

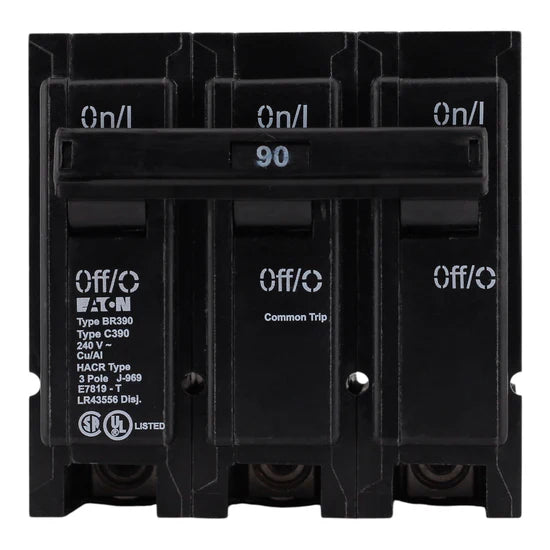

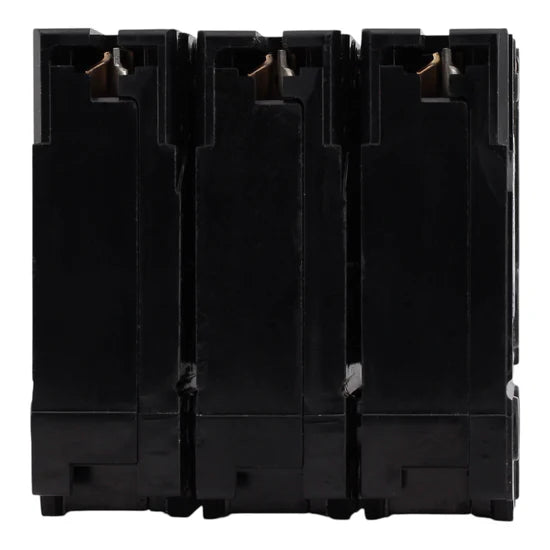

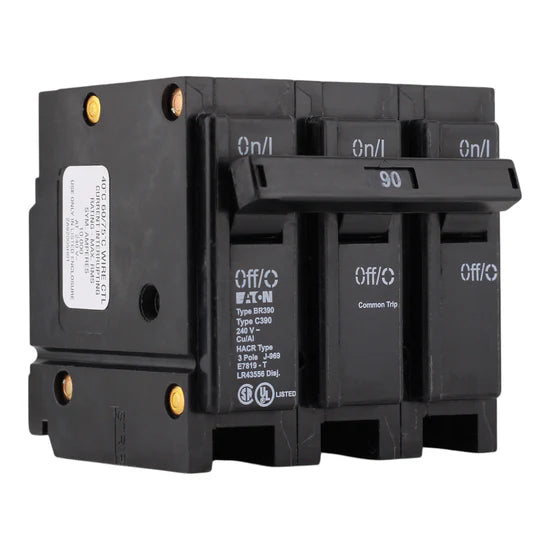

Eaton BR BR390 90A 3-Pole Thermal Magnetic – Plug-On – 240V AC

The Eaton BR BR390 90A 3-Pole Thermal Magnetic – Plug-On – 240V AC provides reliable 90 Amp, 3-Pole protection for 240V AC circuits in Eaton BR loadcenters. Designed for plug-in installation with a 10kA interrupt rating, it ensures dependable performance for residential and light commercial applications.

Voltage and rating

• Current Rating: 90 Amps
• Voltage Rating: 240 Volts AC

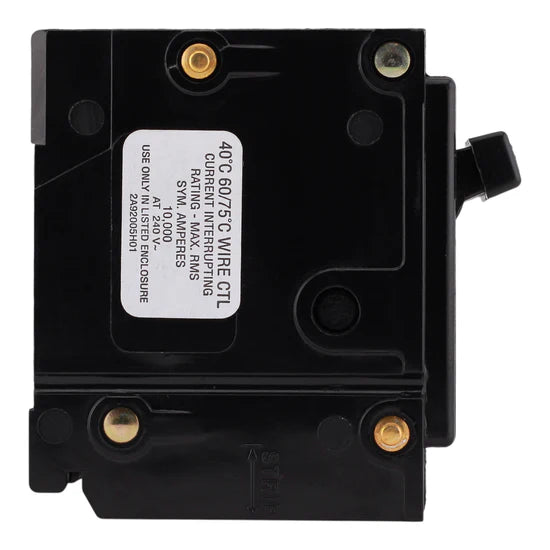

• Interrupting Capacity: 10 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Thermal Magnetic Circuit Breaker
• Number of Poles: 3-Pole
• Mounting Type: Plug-in
• Product Range: BR (for Eaton Type BR loadcenters and residential panels)
• Application: Residential and light commercial branch circuit protection

Technical Specifications

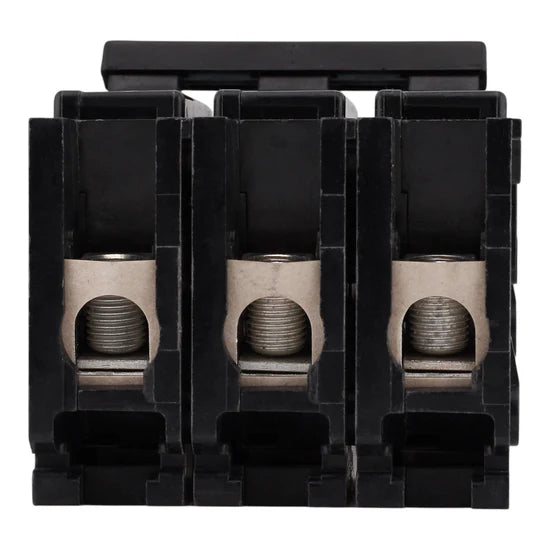

• Wire Size Range: #4–1/0 AWG Cu/Al
• Operating Mechanism: Thermal-magnetic
• Certifications: UL Listed (UL 489)

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: BR390
• UPC: 786676368056

• Dimensions:

  • Height: 3 in
  • Width: 3 in
  • Depth: 3 in
  • Weight: 0.99 lbs
