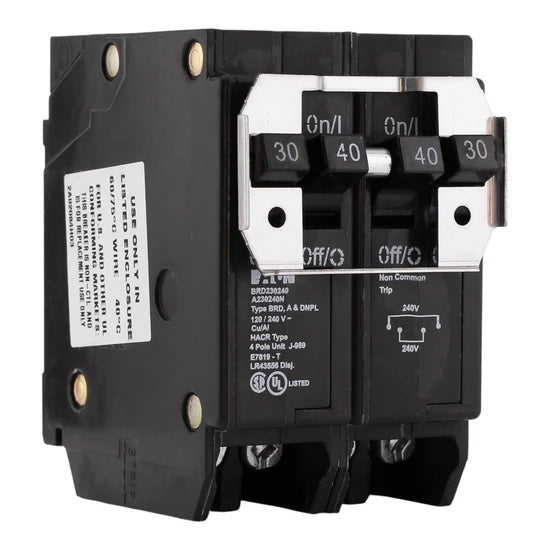

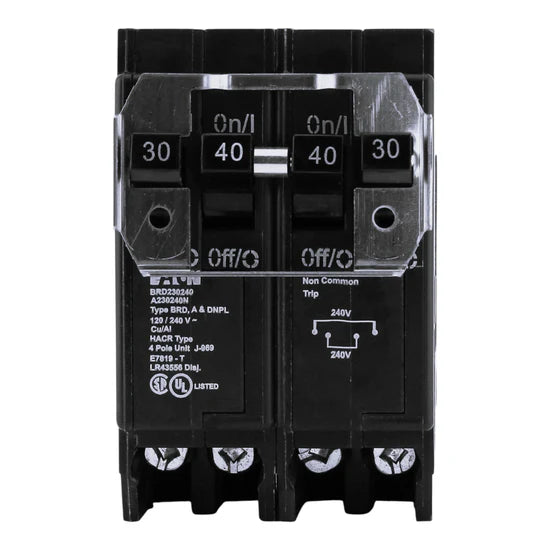

Eaton BR BRD230240 30A/40A 4-Pole Quad Thermal-Magnetic Circuit Breaker – 120/240V

The Eaton BR BRD230240 is a 4-pole quad tandem thermal-magnetic circuit breaker providing two 30A and two 40A independent trips in a compact 1-inch per pole design. Designed for Type BR loadcenters, it delivers flexible protection for 120/240V residential and light commercial applications. Each pole features independent thermal-magnetic protection, ensuring reliable overload and short-circuit defense while maximizing panel capacity.

Electrical Ratings:

• Amperage: (2) 30 Amps, (2) 40 Amps
• Poles: 4-Pole (Quad/Tandem Configuration)
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC

Key Specifications:

• Breaker Type: Thermal-Magnetic
• Mounting Mode: Plug-in
• Connections Terminals: Plug-on

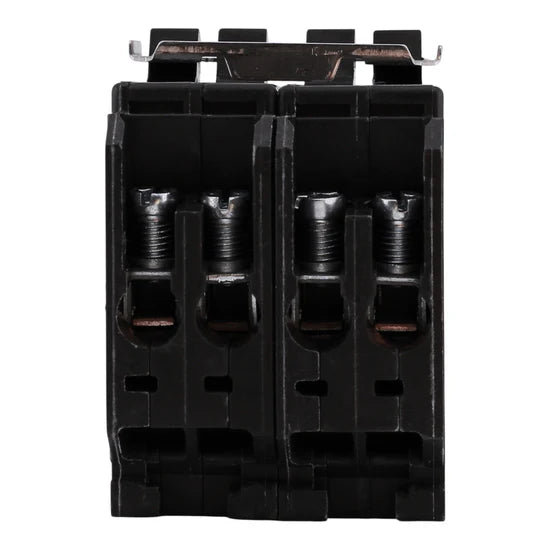

• Wire Size: #14–4 AWG Cu/Al
• Tightening Torque: 25 lb-in
• Special Features: Non-CTL quad tandem design, independent trips on all poles

Dimensions & Weight:

• • Height: 3.0 in
  • Width: 2.0 in
  • Depth: 3.0 in
  • Weight: 0.8 lbs

Certifications:

• UL 489 Listed

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: BR (for Type BR Loadcenters)
• Model Number: BRD230240

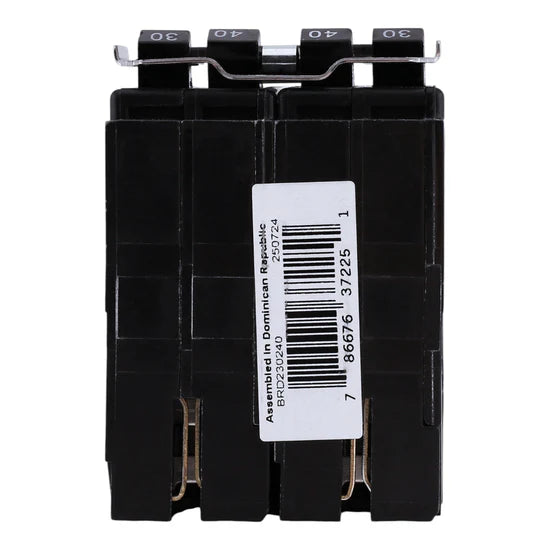

• UPC: 786676372251
