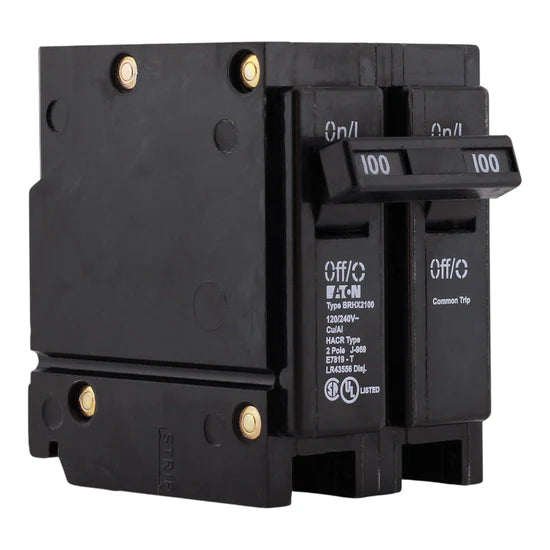

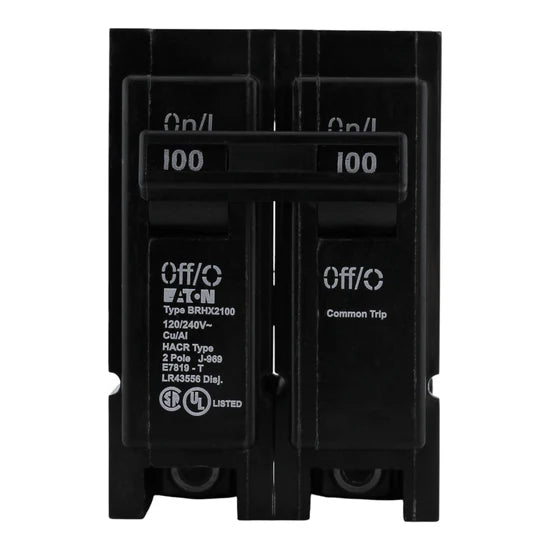

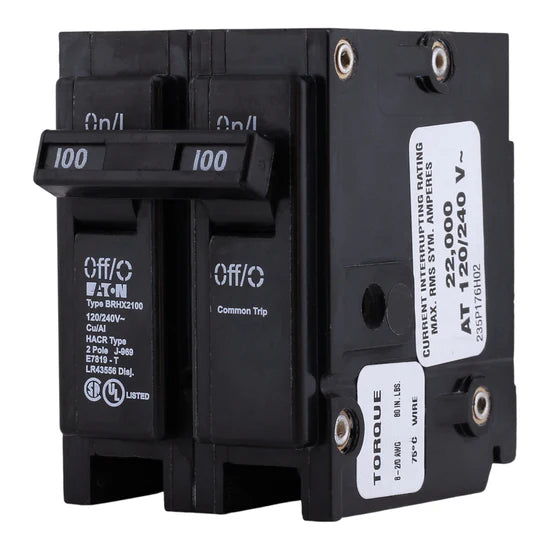

Eaton BR BRHX2100 100A 2-Pole 120/240V Thermal-Magnetic Circuit Breaker

The Eaton BR BRHX2100 is a 2-pole thermal-magnetic circuit breaker designed for 120/240V Eaton BR loadcenters. Delivering 100A protection with a 22kA interrupt rating, it provides reliable overcurrent and short-circuit protection for residential and light commercial applications. Its plug-on mounting and non-interchangeable trip design ensure secure installation and enhanced safety.

Electrical Ratings:

• Amperage: 100 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC

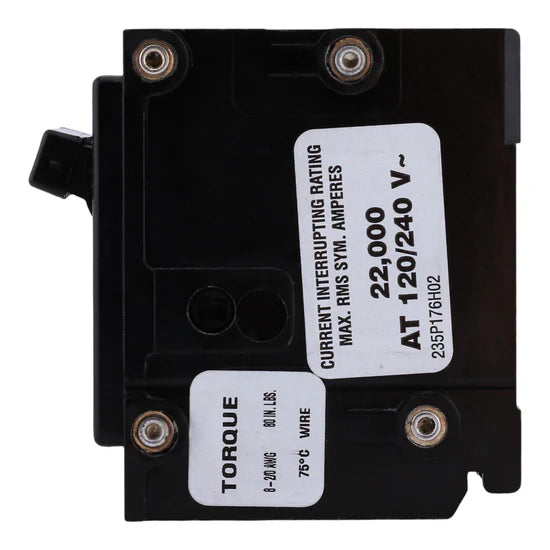

• Interrupt Rating: 22 kAIC

Key Specifications:

• Breaker Type: Thermal-Magnetic
• Mounting Mode: Plug-on
• Connections Terminals: Plug-on

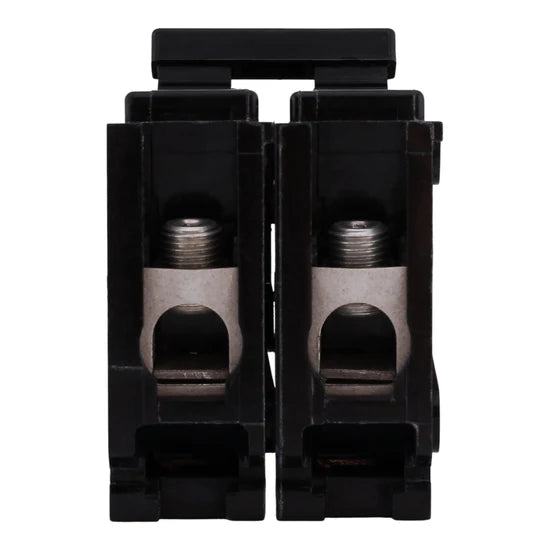

• Wire Size: #4–2/0 AWG Cu/Al
• Tightening Torque: 50 lb-in
• Trip Type: Non-Interchangeable

Dimensions & Weight:

• • Height: 3.0 in
  • Width: 2.6 in
  • Depth: 1.9 in
  • Weight: 0.75 lbs

Certifications:

• UL Listed

Product Data:

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: BR (for Eaton BR loadcenters and equipment)
• Model Number: BRHX2100

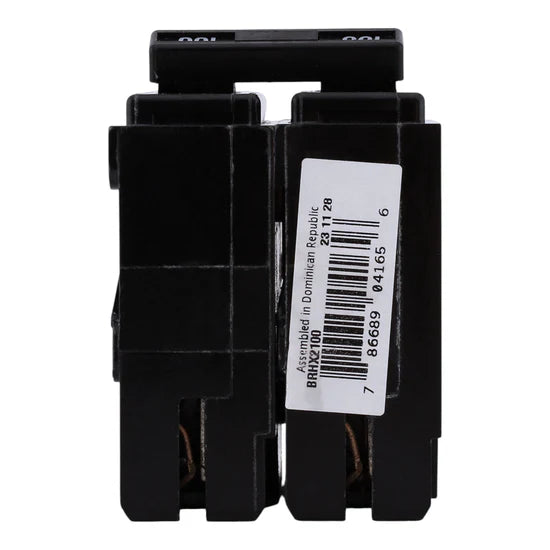

• UPC: 786689041656
