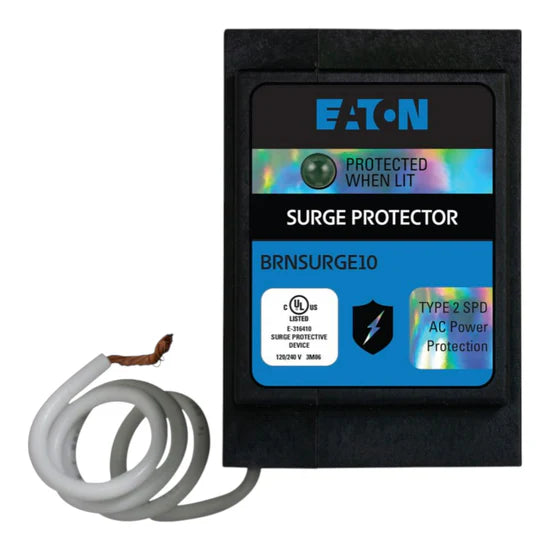

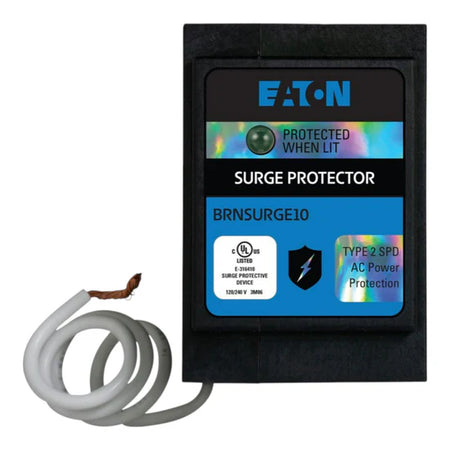

Eaton BR BRNSURGE10 2-Pole Surge Protective Device – Plug-In – 120/240V

The Eaton BRNSURGE10 pigtail neutral surge protective device provides reliable 2-pole protection for 120/240V circuits in Eaton Type BR loadcenters. With a 20kA surge current capacity and 10kA short-circuit rating, it safeguards residential and light commercial electrical systems from voltage spikes and transient surges, ensuring enhanced equipment safety and longevity.

Voltage and Rating

• Poles: 2-Pole
• Voltage Rating: 120/240 Volts AC
• Surge Current: 20 kA
• Nominal Discharge Current: 10 kA
• Short-Circuit Rating: 10 kA
• Frequency Rating: 50/60 Hz
• Maximum Continuous Operating Voltage: 150V L-N, 300V L-L

Key Specifications

• Protection Type: Line-to-Neutral, Line-to-Line
• Mounting Type: Plug-In
• Connections Terminals: Pigtail neutral
• Application: Surge protection for residential and light commercial loadcenters
• Compatible Panels: Eaton Type BR loadcenters

Technical Specifications

• Dimensions: Height: 2.25 in, Width: 3.5 in, Depth: 3.6 in
• Weight: 0.418 lbs
• Certifications: UL 1449, cUL Certified

Product Data

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: BRNSURGE10
  • UPC: 786689880828
