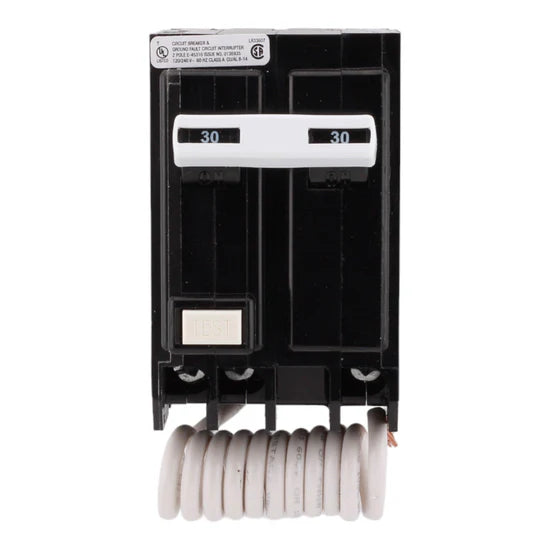

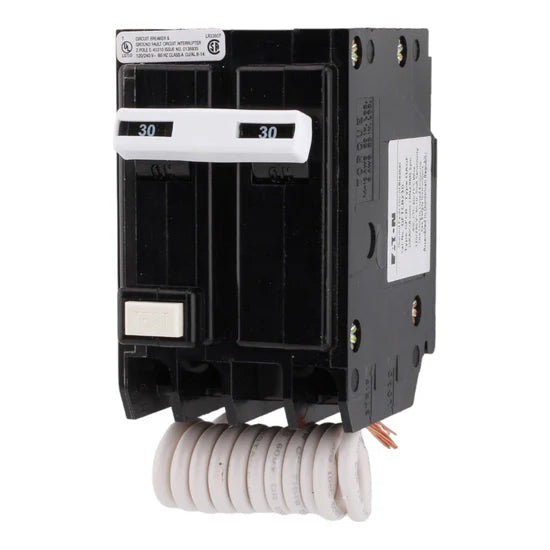

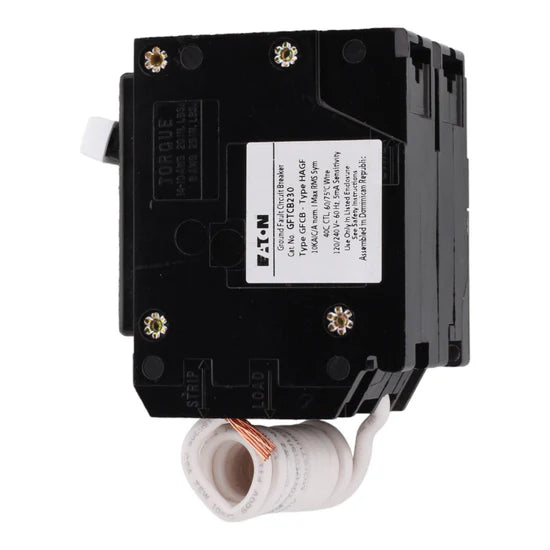

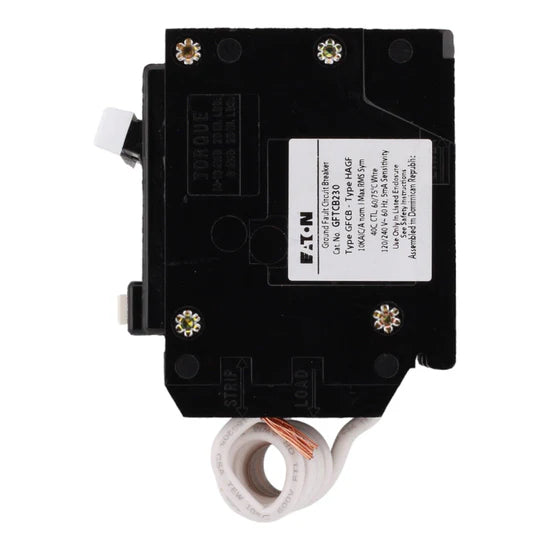

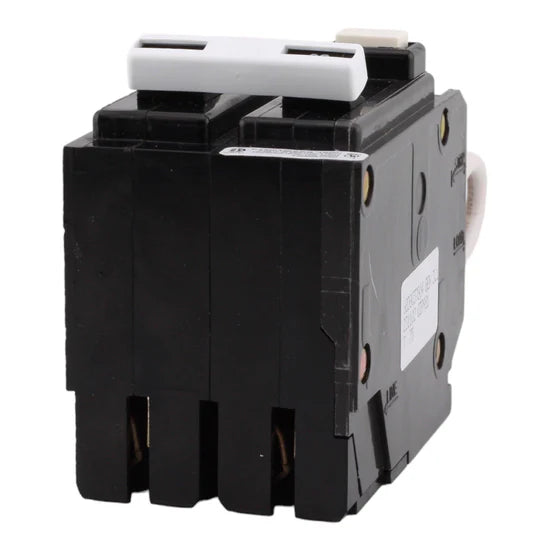

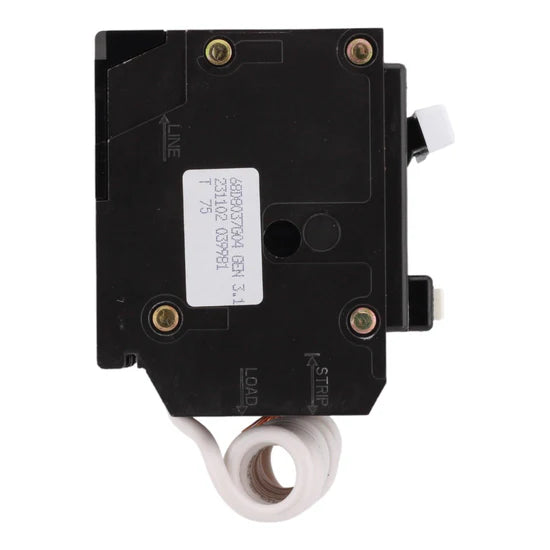

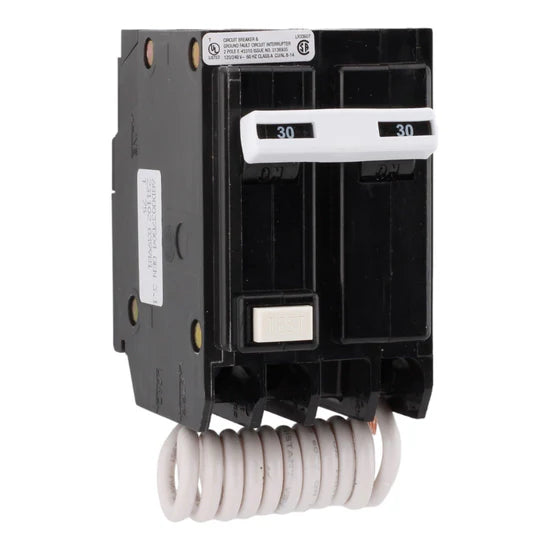

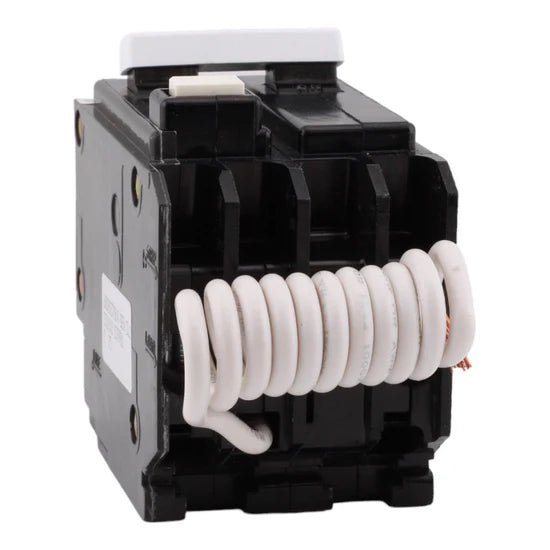

Eaton BR GFTCB230 30A 2-Pole Ground-Fault Circuit Breaker – Pigtail Neutral – 120/240V AC

The Eaton GFTCB230 is a 30 amp, 2-pole Ground-Fault Circuit Interrupter (GFCI) breaker designed for Eaton BR load centers and compatible panels including Cutler-Hammer, Bryant, Westinghouse, and Challenger. It provides reliable protection for 120/240V circuits by detecting ground faults and automatically disconnecting power to prevent electrical hazards.

With a pigtail neutral connection and 5mA trip sensitivity, this breaker ensures precise fault detection and improved safety for every branch circuit. Its thermal-magnetic trip mechanism delivers consistent performance, making it a trusted choice for applications requiring GFCI protection.

Voltage and Ratings

• Current Rating: 30 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC
• Trip Sensitivity: 5 mA

Key Specifications

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Poles: 2-Pole
• Series: BR
• Mounting Type: Plug-On
• Neutral Type: Pigtail Neutral
• Application: Branch circuit ground-fault protection
• Compatible Panels: Eaton BR load centers and compatible panels (Cutler-Hammer, Bryant, Westinghouse, Challenger)

Technical Specifications

• Wire Size Range: #14–4 AWG
• Terminal Tightening Torque: 20 lb-in
• Operating Mechanism: Thermal-magnetic with GFCI protection
• Dimensions:
  • Height: 2.0 in
  • Width: 2.75 in
  • Depth: 4.5 in

• Weight: 0.7 lbs

• Certifications: UL Listed, UL 943 Certified

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: GFTCB230
• UPC: 786676025980
