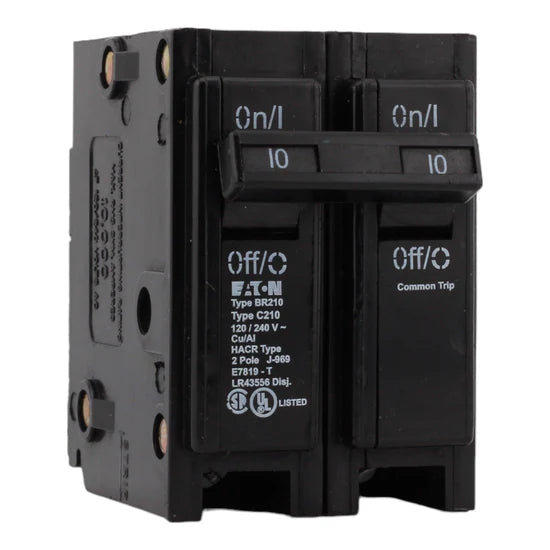

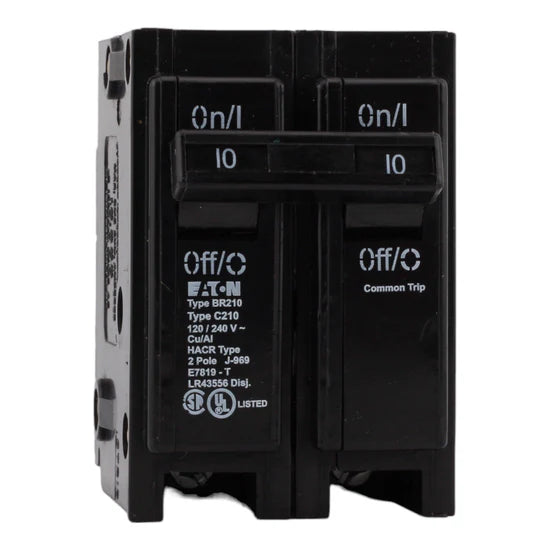

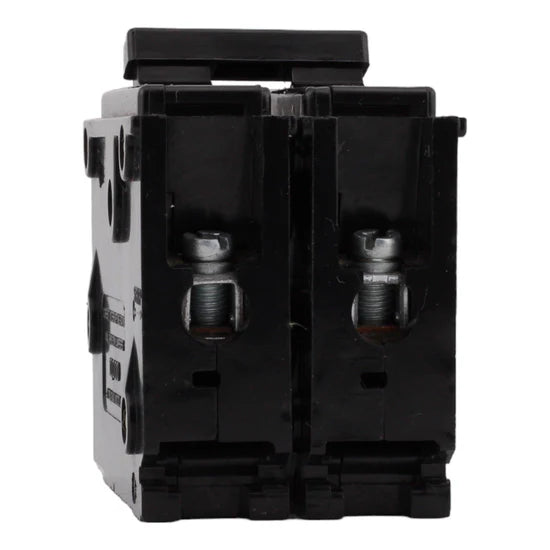

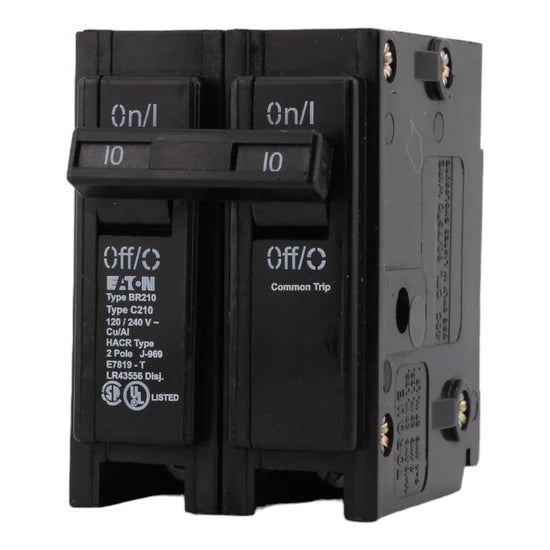

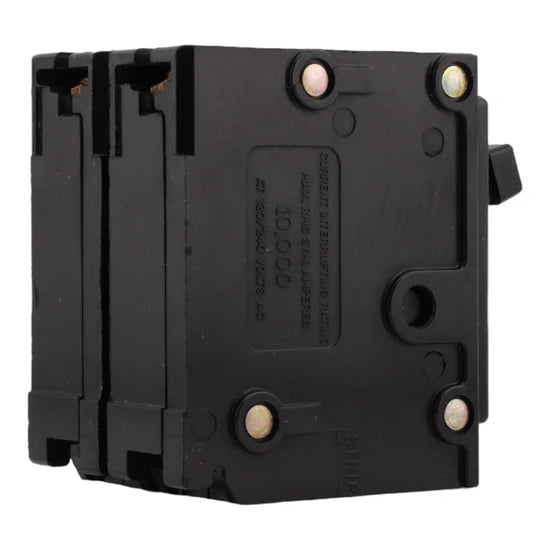

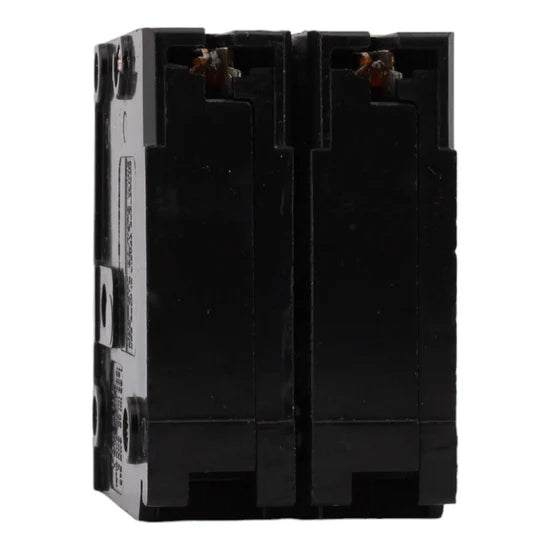

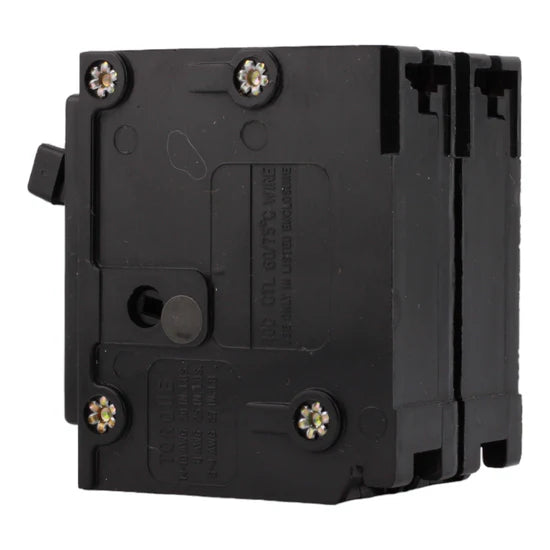

Eaton BR210 10A 2-Pole Thermal Magnetic Circuit Breaker – Plug-On – 120/240V

The Eaton BR210 10 Amp double-pole thermal magnetic circuit breaker delivers dependable overload and short-circuit protection for residential and light commercial electrical systems. Designed for Eaton BR loadcenters, this plug-on breaker combines thermal and magnetic trip mechanisms for reliable performance. Its standard interrupting capacity and compact design make it a trusted choice for protecting 120/240V branch circuits.

Voltage and Rating

• Current Rating: 10 Amps
• Voltage Rating: 120/240 Volts
• Interrupting Capacity: 10 kA
• Poles: 2-Pole

Key Specifications

• Breaker Type: Thermal Magnetic Circuit Breaker
• Mounting Type: Plug-On
• Connection: Plug-on
• Application: For Eaton BR loadcenters
• Protection: Thermal overload and magnetic short-circuit protection

Technical Specifications

• Interrupt Rating: 10 kA

Certifications

• UL Listed

Product Data

• Manufacturer: Eaton
• Model Number: BR210
• UPC: 786676362757

• Dimensions:

  • Height: 3 in

  • Length: 2.56 in

  • Width: 1 in
