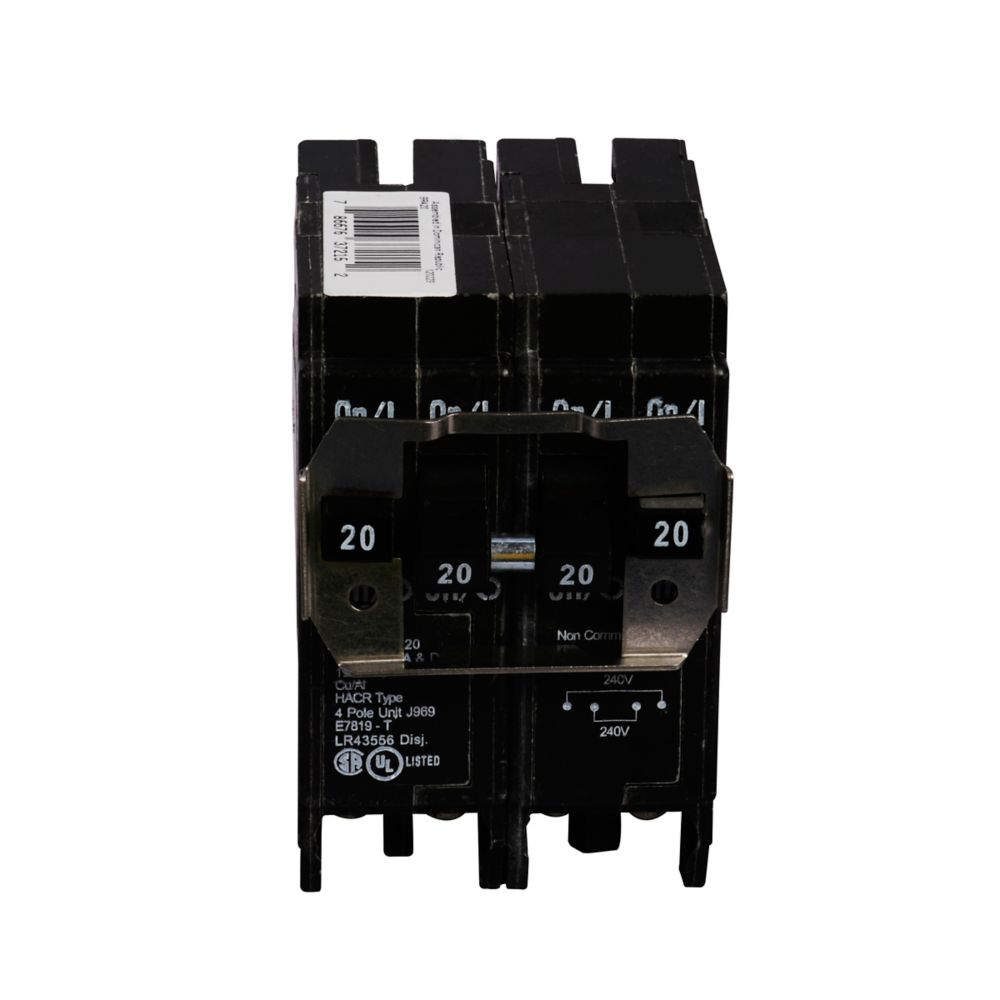

Eaton BR420 BR Thermal Magnetic Circuit Breaker – 20A, 4-Pole, 120/240V
Couldn't load pickup availability
Ask an expert
The Eaton BR420 thermal magnetic circuit breaker is a Type BR plug-on breaker designed for reliable branch circuit protection in Eaton Type BR loadcenters. This 4-pole 20A breaker features thermal magnetic overcurrent protection and a T194 trip configuration, providing dependable performance in residential electrical distribution systems. Its non-CTL design means it does not include a rejection tab feature.
Voltage and Rating
- Current Rating: 20A
- Voltage Rating: 120/240V
- Interrupt Rating: 10 kAIC
- Number of Poles: Four-pole
- Trip Type: T194
- Circuit Breaker Type: BR
- Mounting Method: Plug-on
Key Specifications
- Manufacturer: Eaton
- Catalog Number: BR420
- UPC: 786676372152
- Product Type: Thermal magnetic circuit breaker
- Type: Type BR 1-Inch plug-on circuit breaker
- Used With: Type BR Loadcenters
- Main Circuit Breaker: BR
- Wire Size: #14–4 AWG Cu/Al
- Certifications: UL 489
- Compliances: Federal Specifications Classification W-C375
- Quantity: 28
- Special Features: Non-CTL (no rejection tab feature)
Physical Details
- Product Length/Depth: 3 in
- Product Height: 3 in
- Product Width: 2 in
- Product Weight: 0.5 lb
Product Data
- Application: Residential branch circuit protection
- Compatibility: Eaton Type BR Loadcenters
- Mounting Style: Plug-on design
- HACR Rated: Not specified in listing
- Type Thermal Magnetic
- Vendor Eaton Cutler-Hammer
- Brand Eaton
