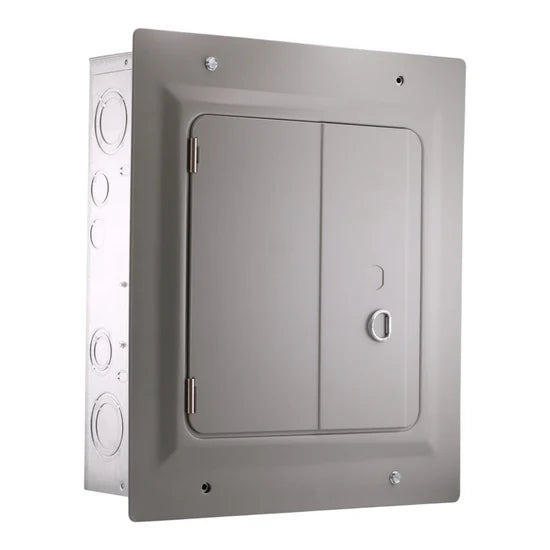

Eaton BR816L125FDGP 125A 8-Space 16-Circuit Main Lug Loadcenter – Flush Mount – 120/240V

The Eaton BR816L125FDGP main lug loadcenter provides dependable 125A, 8-space, 16-circuit power distribution for 120/240V single-phase systems. Designed for residential and light commercial applications, it features a flush-mount NEMA 1 indoor metallic enclosure and aluminum bus for durability. Dual ground bars (GBK5 and GBK520) ensure secure grounding, making it ideal for safe and efficient electrical setups.

Voltage and Rating

• Amperage: 125 Amps
• Number of Spaces: 8
• Number of Circuits: 16
• Phase: Single-Phase
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Mounting Type: Flush Mount
• Bus Material: Aluminum
• Wire Size Range: #14–1 AWG Cu/Al
• Enclosure Rating: NEMA 1 Indoor

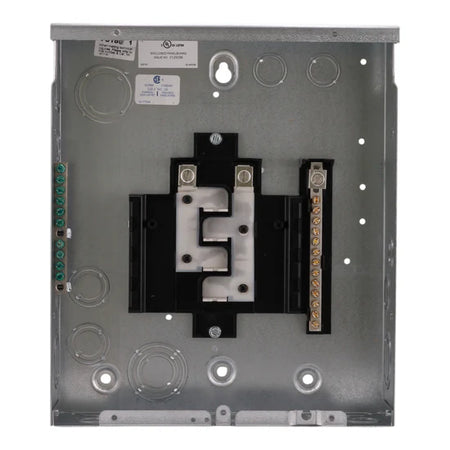

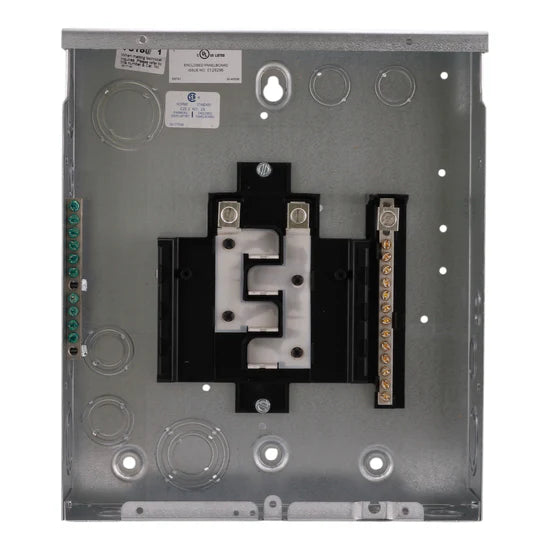

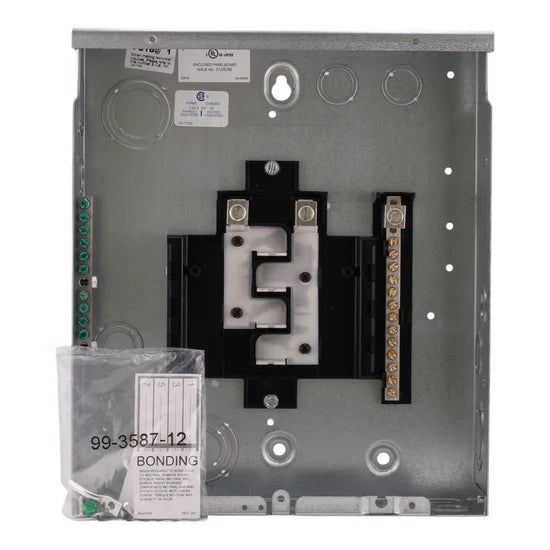

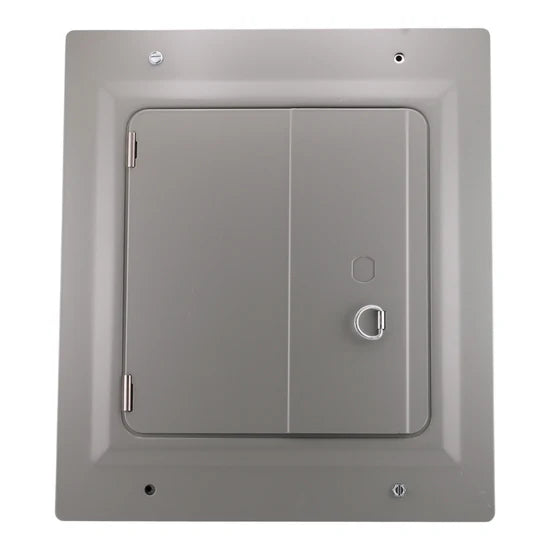

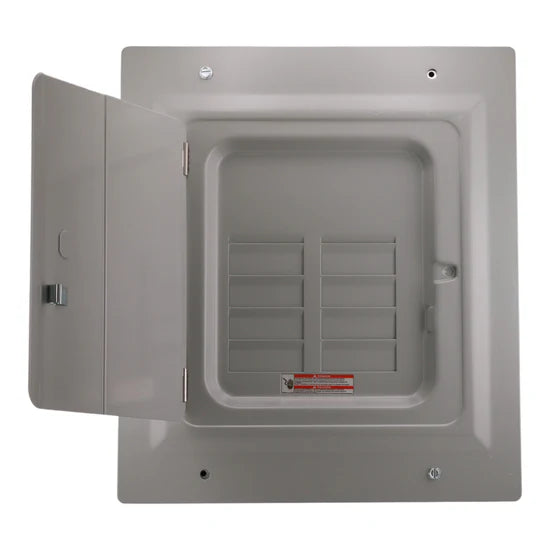

• Special Features: Dual ground bars (GBK5 and GBK520), includes cover
• Compatible Breakers: Eaton Type BR 1-inch breakers

Technical Specifications

• Dimensions: Height: 13.0 in, Width: 11.0 in, Depth: 3.56 in
• Weight: 12.8 lbs
• Enclosure Material: Metallic
• Certifications: UL 67, UL 50

Product Data

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: BR816L125FDGP
  • UPC: 786676002172
