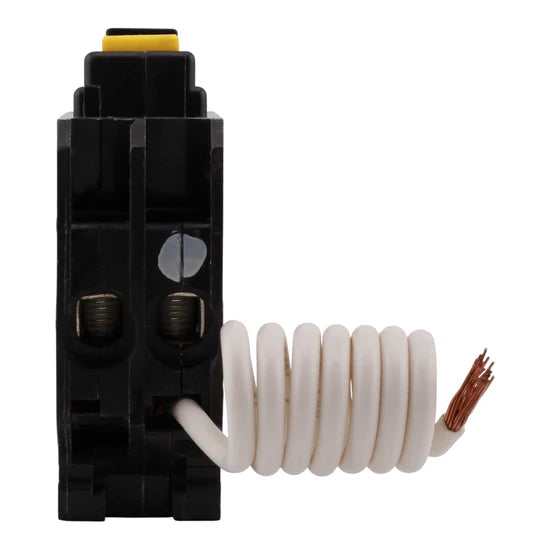

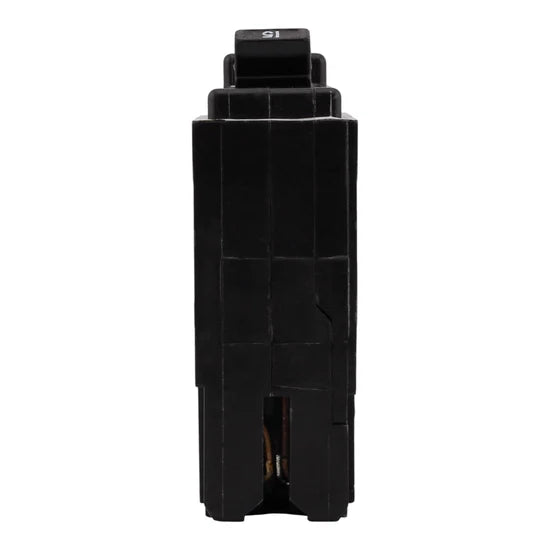

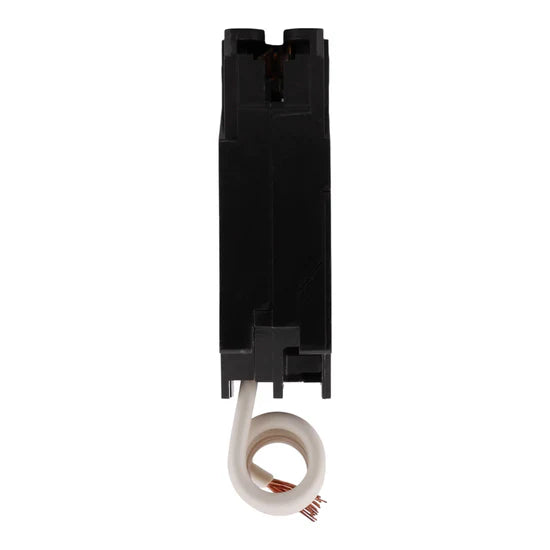

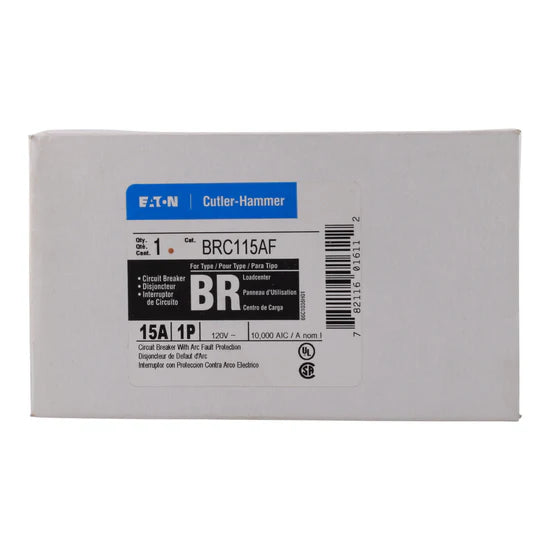

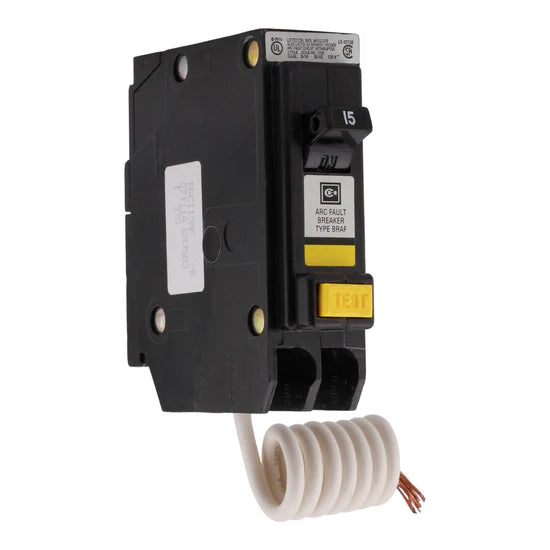

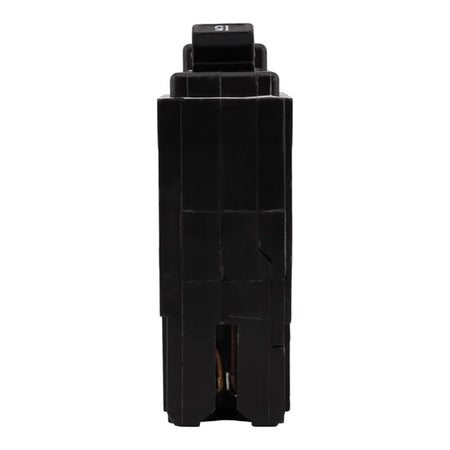

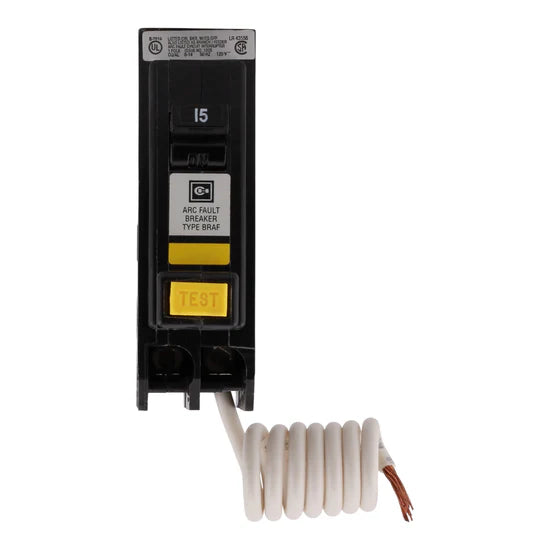

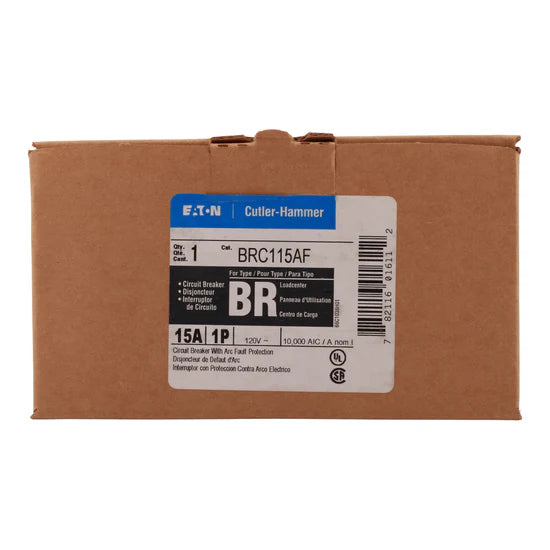

The Eaton BRC115AF single-pole AFCI circuit breaker delivers dependable arc-fault protection for 120V residential circuits. Designed for Eaton Type BR load centers, this breaker features a pigtail neutral connection and reliable thermal-magnetic operation. With a 10 kA interrupt rating and UL listing, it helps protect wiring from dangerous arc faults while supporting safe and efficient electrical system performance.
Voltage and Rating
- Amperage Rating: 15 Amps
- Voltage Rating: 120 Volts AC
- Interrupt Rating: 10 kAIC
Key Specifications
- Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
- Number of Poles: 1-Pole
- Mounting Type: Plug-In
- Connection Type: Pigtail Neutral
- Product Range: BR Series
- Applications: Residential branch circuit arc-fault protection
- Compatibility: Eaton Type BR, Westinghouse, Challenger, and Bryant load centers
Technical Specifications
- Circuit Protection: Thermal-magnetic with AFCI protection
- Wire Size: #14–4 AWG Copper/Aluminum
- Tightening Torque: 35.4 lb-in
- Protection Function: Arc fault and overload protection
- Certifications: UL Listed
Product Data
-
- Brand: Eaton
- Manufacturer: Eaton
- Model Number: BRC115AF
- UPC: 782116049103
- Dimensions (H × W × D): 1.25 × 4.75 × 3.0 in
- Weight: 0.78 lbs
