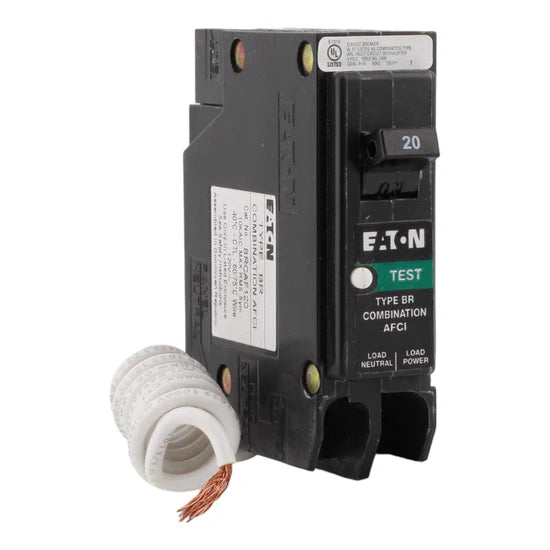

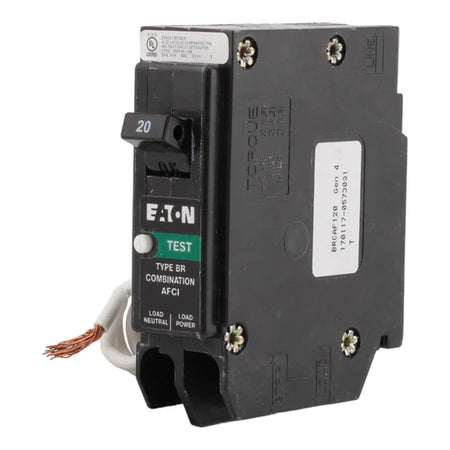

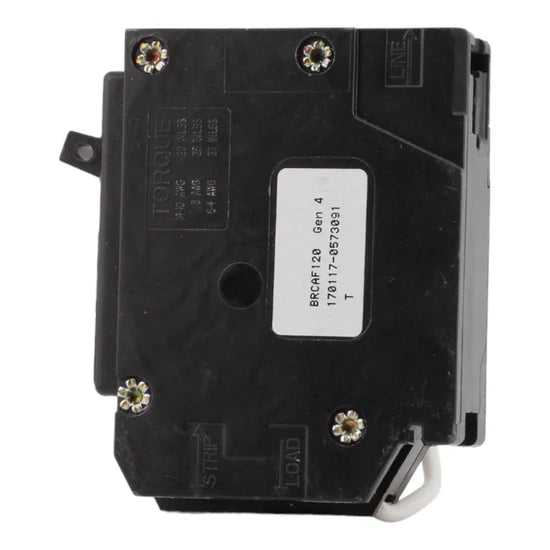

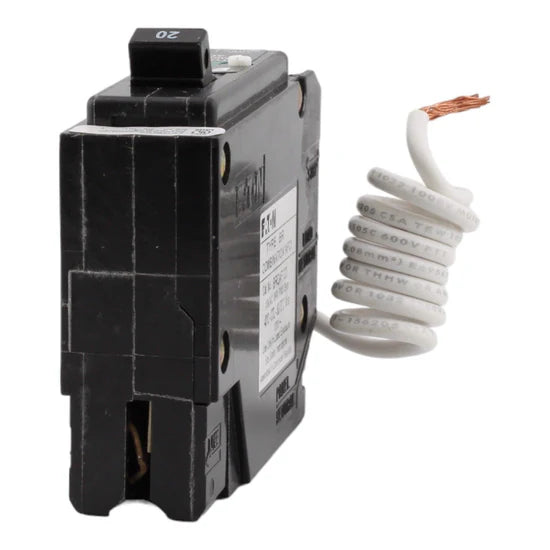

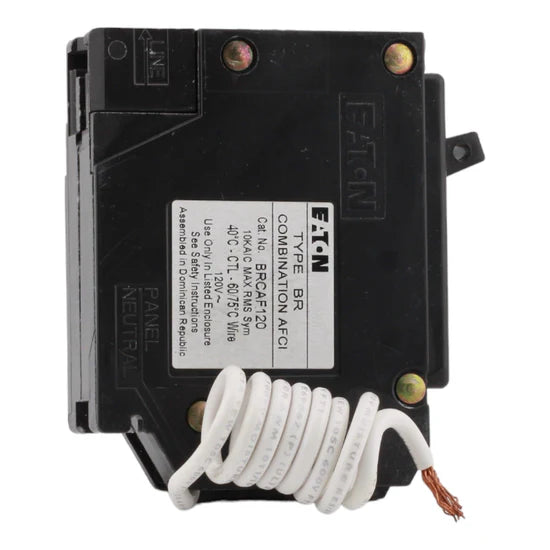

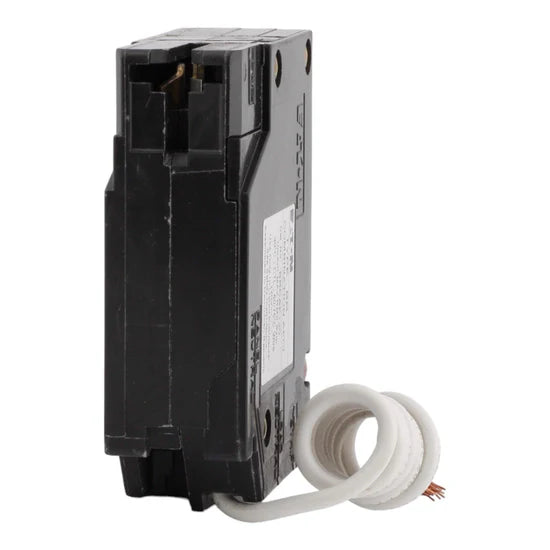

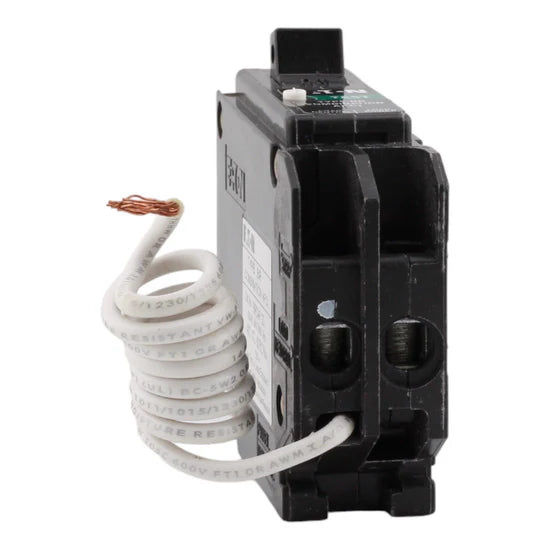

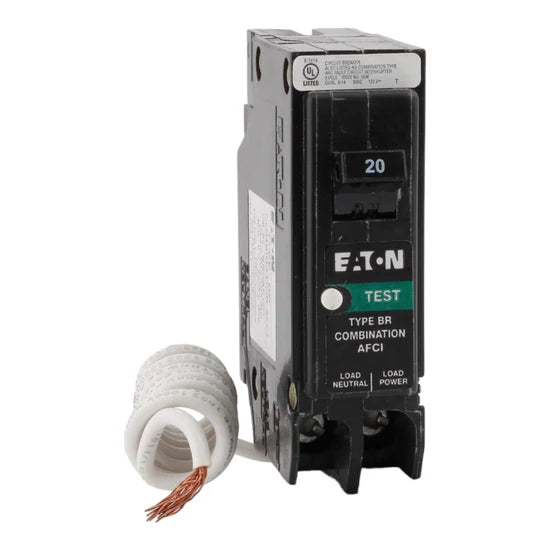

The Eaton BRCAF120 is a 20 Amp single-pole Combination Arc Fault Circuit Interrupter (AFCI) designed to protect 120V circuits from arc faults, enhancing residential electrical safety. Compatible with Eaton BR load centers, this breaker features a plug-on neutral connection for easy installation and reliable performance.
Voltage and Rating
- Current Rating: 20 Amps
- Voltage Rating: 120 Volts AC
- Interrupt Rating: 10 kA
Key Specifications
- Breaker Type: Combination Arc Fault Circuit Interrupter (AFCI)
- Number of Poles: 1-Pole
- Mounting Type: Plug-On
- Connection Type: Pigtail Neutral
- Compatibility: Eaton BR Loadcenters
Technical Specifications
- Wire Size: #14–4 AWG (Copper/Aluminum)
- Dimensions (H × W × L): 1.25 × 3.5 × 6 in
- Net Weight: 0.5 lb
Certifications
- UL Listed
- Federal Specifications Classification W-C375
Product Data
-
- Manufacturer: Eaton
- Model Number: BRCAF120
- UPC: 786685514338
