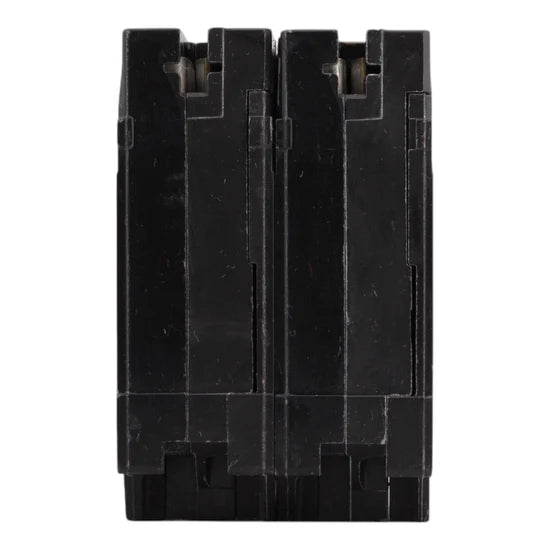

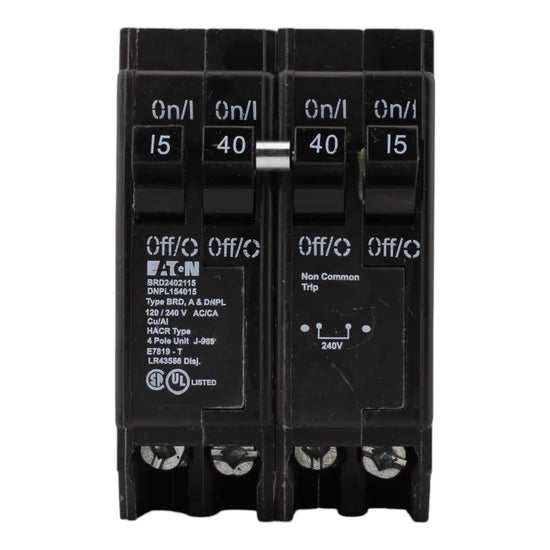

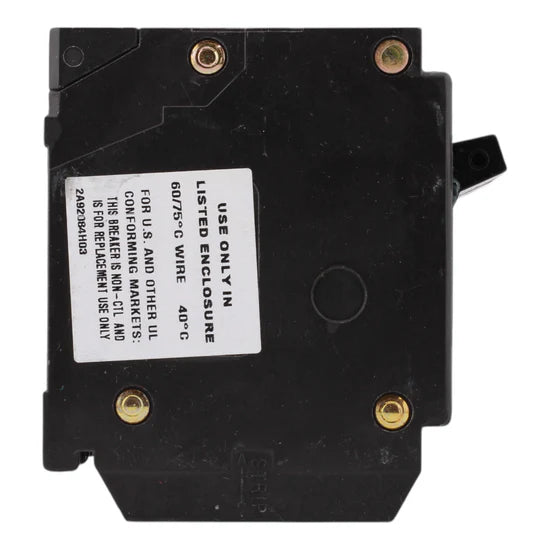

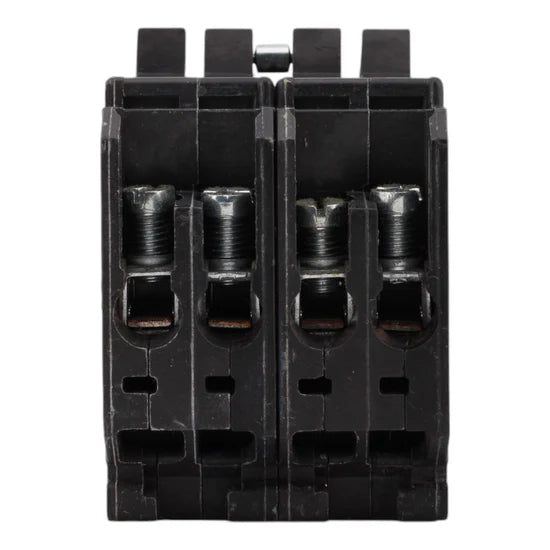

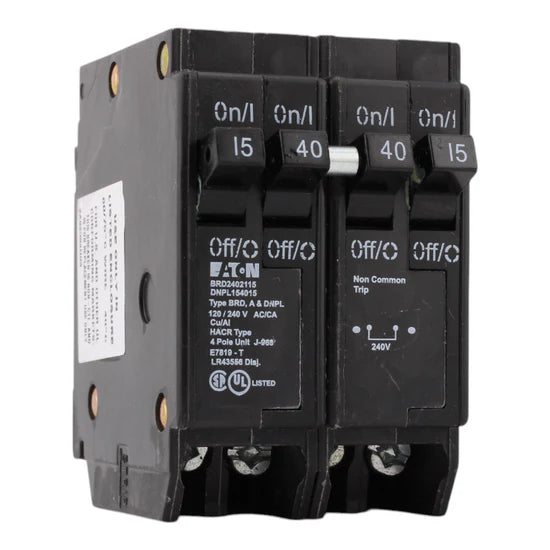

The Eaton BRD2402115 quad circuit breaker provides multi-circuit protection in a single compact unit, combining two single-pole circuits and one double-pole circuit for efficient panel utilization. Designed for Eaton, Bryant, Westinghouse, and other compatible load centers, the plug-in design allows for quick installation, while thermal-magnetic protection ensures reliable overload and short-circuit defense for residential and light commercial applications.
Voltage and Rating
- Amperage Rating: 15 Amps / 15 Amps / 40 Amps (2 Single-Pole, 1 Double-Pole)
- Voltage Rating: 120/240 Volts AC
Key Specifications
- Family: BR Quad Plug-In Breaker
- Type: Quad Circuit Breaker (Two Single-Pole + One Double-Pole)
- Number of Poles: Two 1-Pole + One 2-Pole
- Connection Type: Plug-In
- Applications: Multi-circuit branch protection
- Compatibility: Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline load centers
Technical Specifications
- Circuit Protection: Thermal magnetic
- Mounting Style: Plug-in breaker
- Protection Function: Overload and short-circuit protection
- Wire Size: 14–4 AWG Aluminum/Copper
- Certifications: UL Listed, CSA Approved
Product Data
-
- Brand: Eaton
- Manufacturer: Eaton
- Model Number: BRD2402115
- UPC: 622588019306
- Dimensions (H × W × L): 3 in × 2 in × 3 in
- Weight: 0.73 lb
