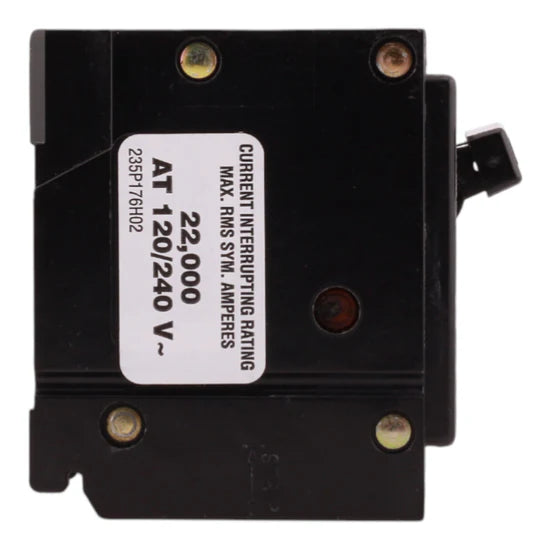

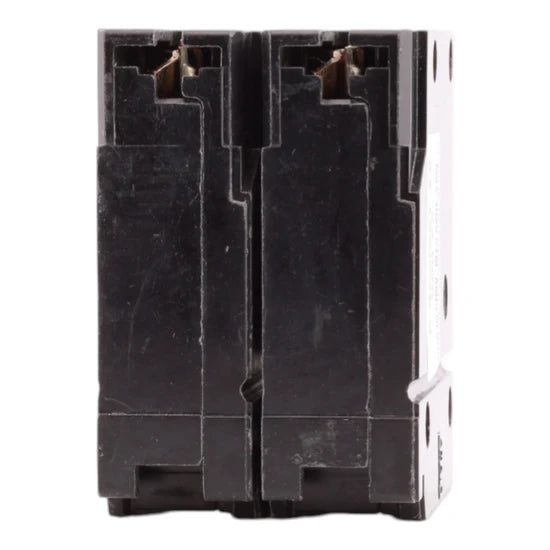

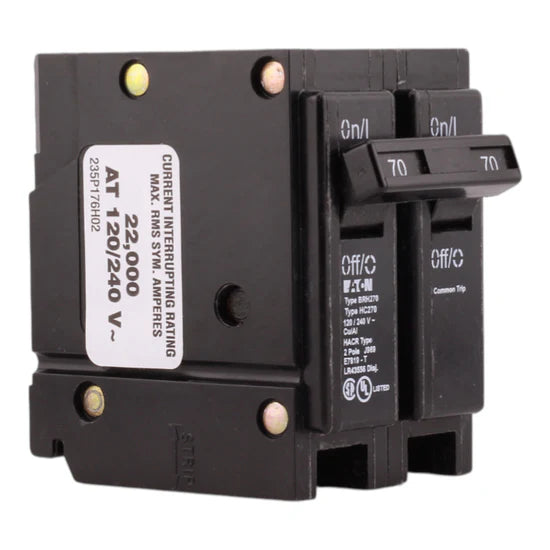

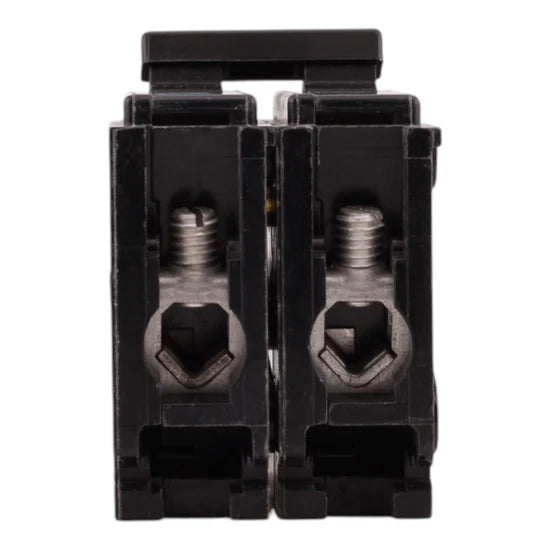

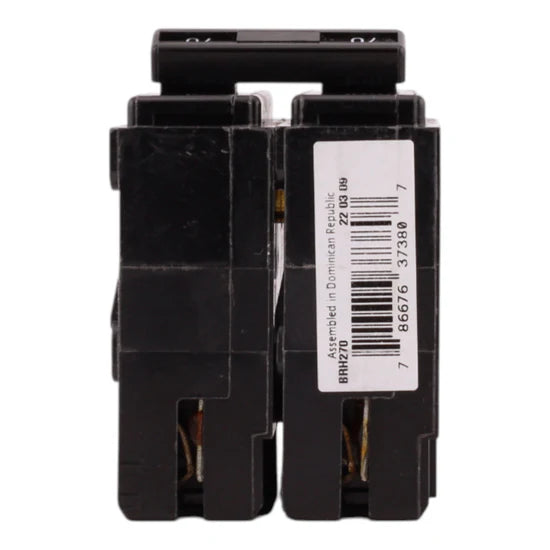

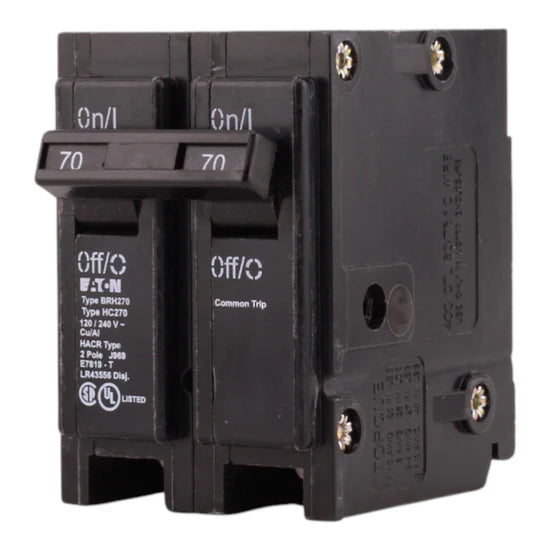

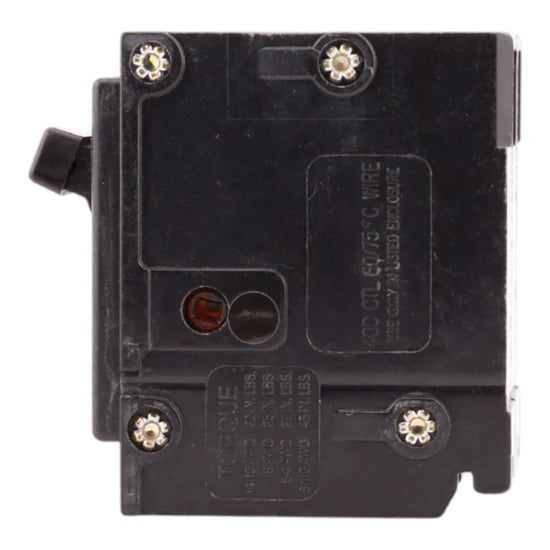

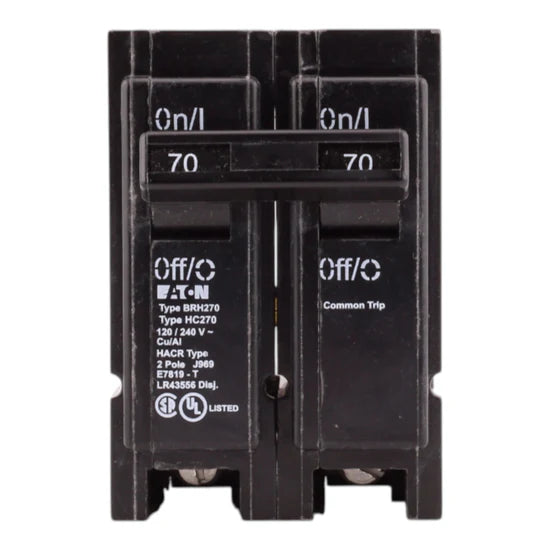

Eaton BRH270 70A 2-Pole Thermal Magnetic Breaker – Plug-On – 120/240V

The Eaton BRH270 plug-on circuit breaker provides dependable 70A, 2-pole thermal-magnetic protection for 120/240V circuits. Designed for Eaton Type BR load centers, this high-magnetic breaker features a robust 22 kAIC interrupt rating for enhanced safety and performance in residential and light commercial electrical systems.

Voltage and Rating

• Amperage: 70 Amps
• Poles: 2-Pole
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 22 kAIC

Key Specifications

• Breaker Type: Thermal Magnetic
• Mounting Type: Plug-On
• Product Range: BR
• Application: Residential and light commercial branch circuit protection
• Compatible Panels: Eaton Type BR load centers

Technical Specifications

• Wire Size Range: #4–1/0 AWG Copper/Aluminum
• Connection Terminals: Plug-on
• Certifications: UL 489, HACR Rated

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: BRH270
• UPC: 786676373807

Dimensions

• • Height: 3.0 in
  • Width: 2.0 in
  • Depth: 3.0 in
  • Weight: 0.6 lbs
