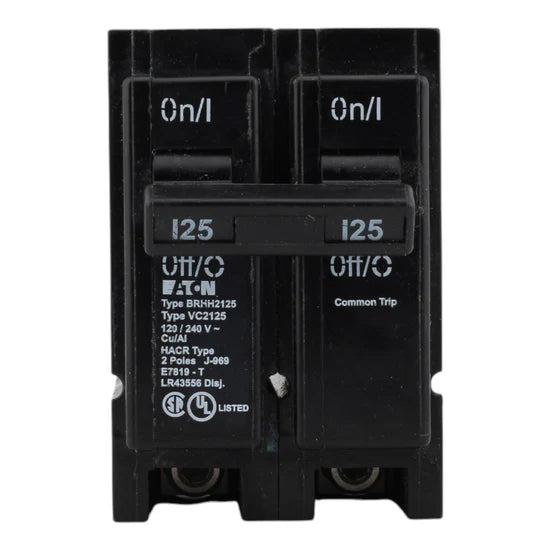

The Eaton BRHH2125 125 Amp 2-Pole Circuit Breaker is part of the BRH series and is designed for use in Type BR loadcenters. Featuring a thermal-magnetic trip mechanism with common trip functionality, it provides dependable overload and short-circuit protection. With a high 42kA interrupt rating and plug-on mounting design, this breaker ensures reliable performance for residential and light commercial electrical distribution systems.
Voltage & Ratings
- Current Rating: 125 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupt Rating: 42kA SCCR
Key Specifications
- Breaker Type: Thermal-Magnetic (BRH Series)
- Number of Poles: 2-Pole
- Mounting Type: Plug-On
- Trip Type: Common Breaker Trip
- Breaker Width: 1-Inch Plug-On
- Application: Electrical distribution
- Compatible Load Centers: Type BR Loadcenters
- Technical Specifications
- Wire Size Compatibility: #4–2/0 AWG Copper or Aluminum
- Certifications: UL 490 Listed
- Compliances: Federal Specifications W-C376
Product Data
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: BRHH2125
- UPC: 786676377003
Dimensions:
- Height: 3 in
- Width: 2 in
- Depth: 3 in
- Weight: 0.55 lbs
