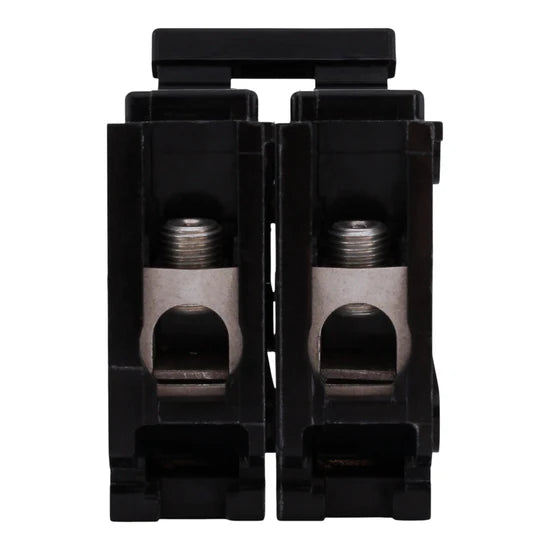

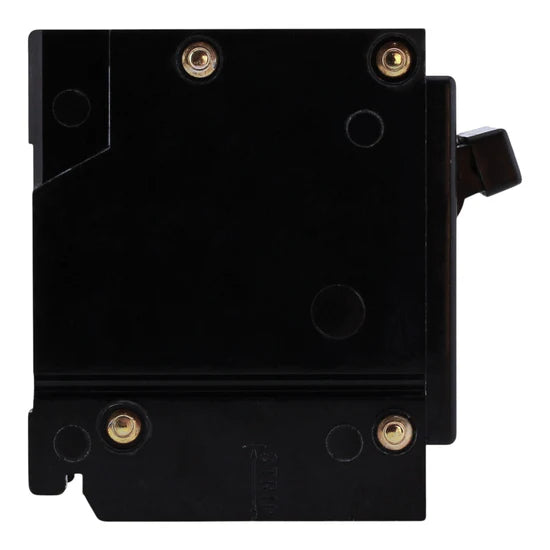

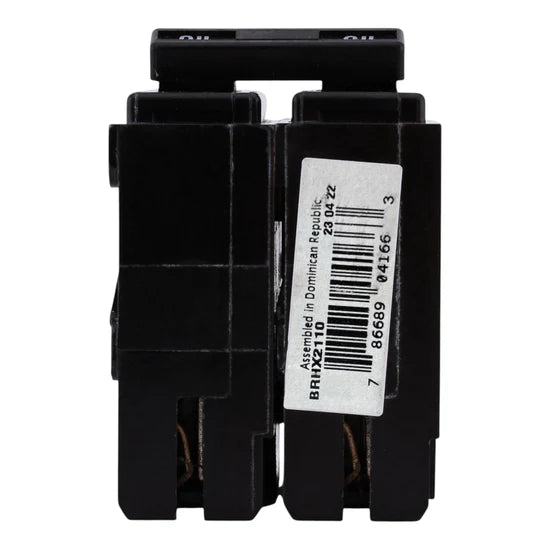

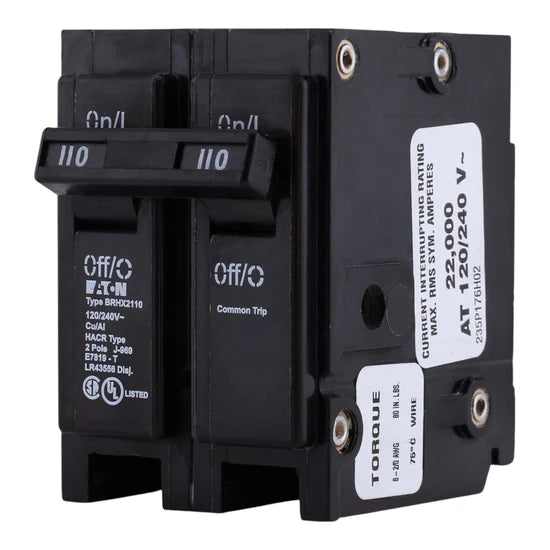

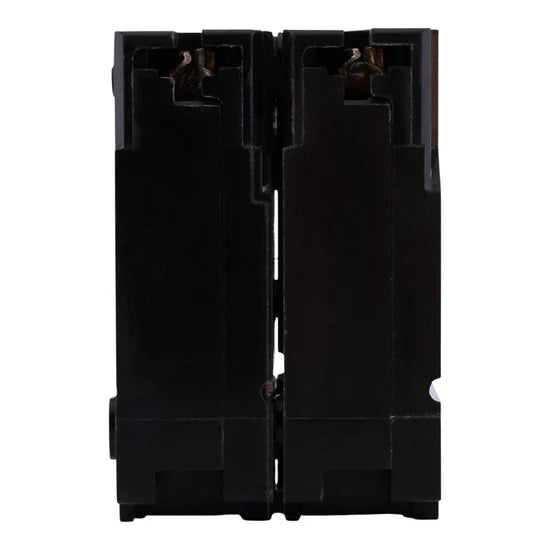

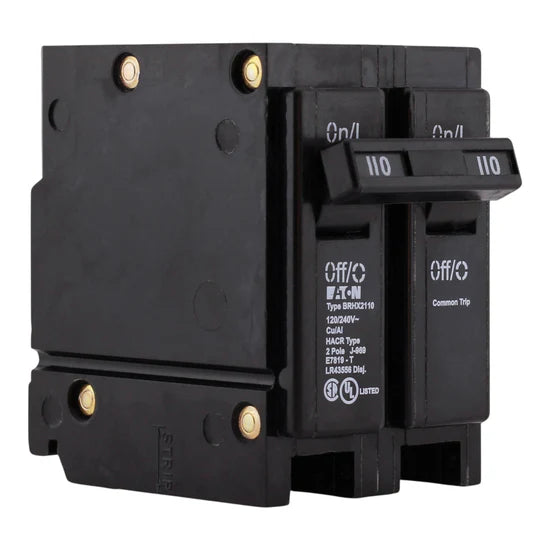

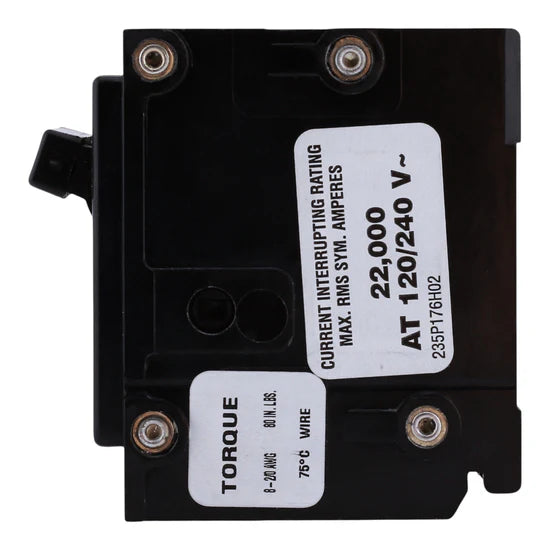

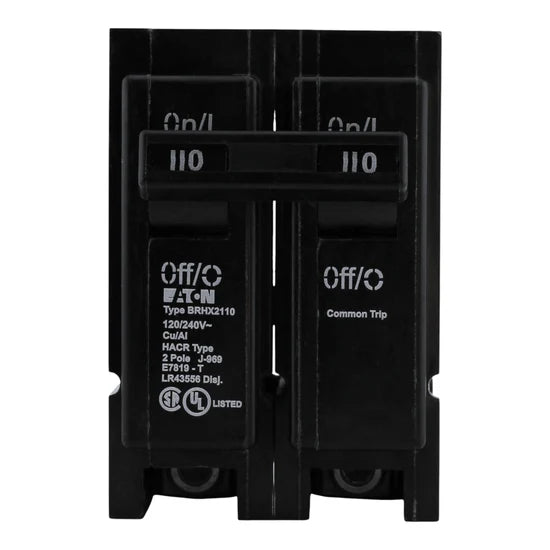

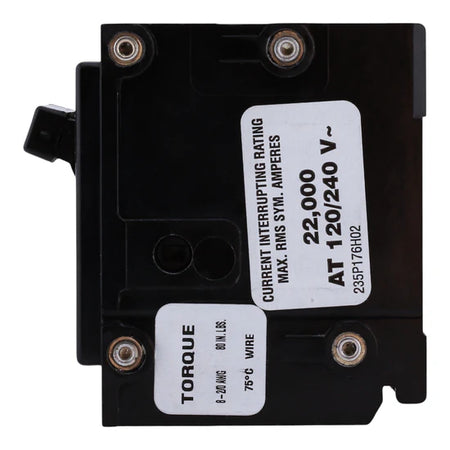

Eaton BRHX2110 110A 2-Pole Thermal-Magnetic – Quicklag – 120/240V

The Eaton BRHX2110 is a 110 Amp, 2-Pole Quicklag Type BRHX thermal-magnetic circuit breaker designed for BR loadcenters and residential panels. With plug-on mounting and 22kA interrupt rating, it provides reliable overload and short-circuit protection for residential and light commercial applications.

Voltage and Rating

• Amperage: 110 Amps
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22 kAIC

Key Specifications

• Breaker Type: Thermal-Magnetic Circuit Breaker
• Trip Type: Quicklag Type BRHX, Non-interchangeable
• Poles: 2-Pole
• Mounting Mode: Plug-On
• Wire Size: #4–1/0 AWG Cu/Al

Product Data

• Manufacturer: Eaton
• Brand: BR
• Model Number: BRHX2110
• UPC: 786689041663

• Dimensions:

  • Height: 2 in
  • Width: 1.9 in
  • Depth: 2.6 in
  • Weight: 0.75 lbs
  • Certifications: UL Listed, HACR Rated
