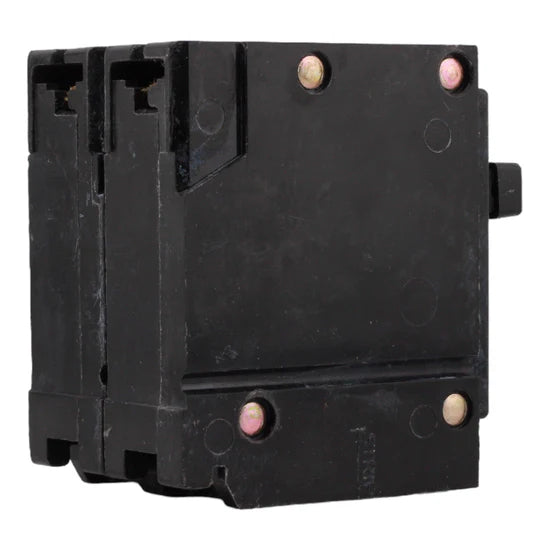

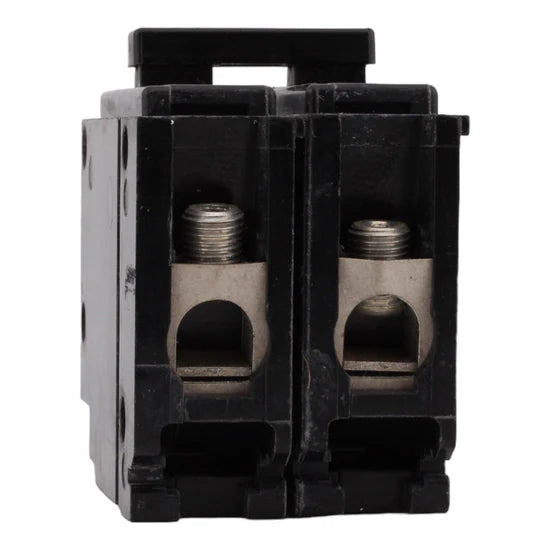

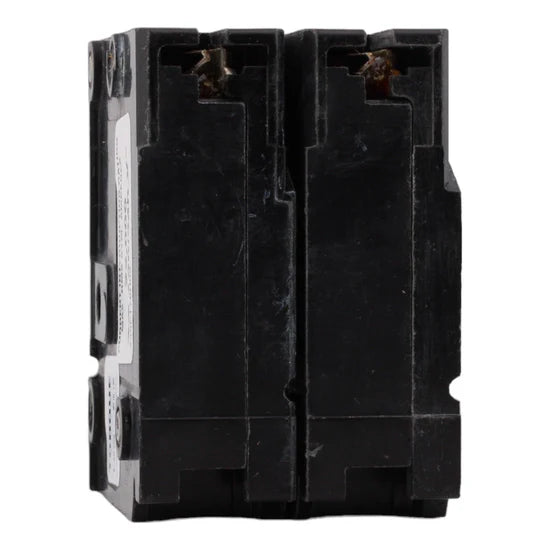

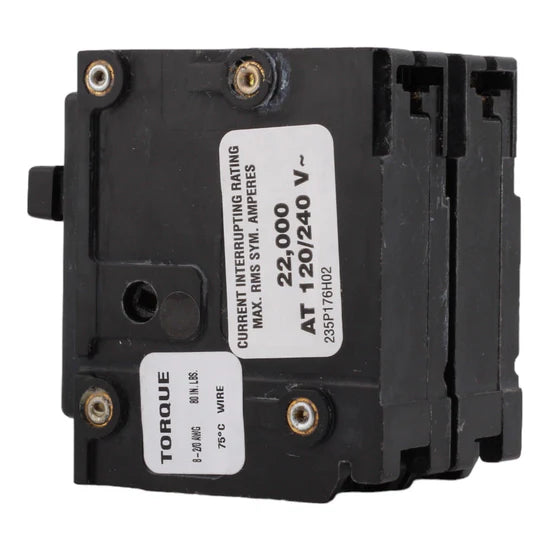

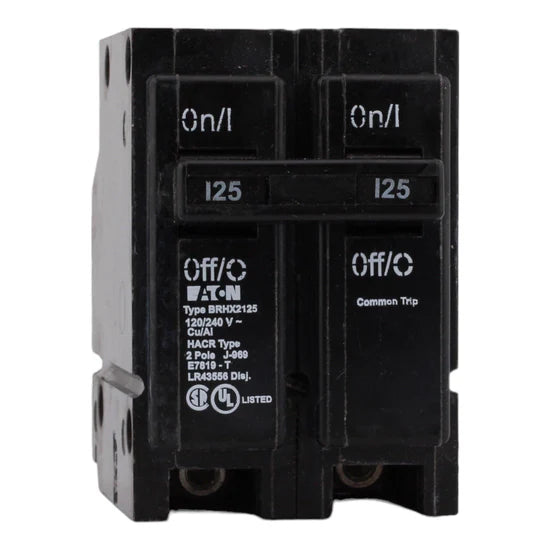

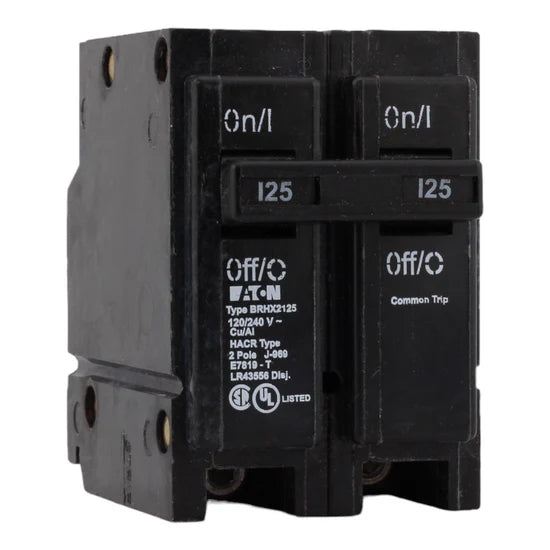

Eaton BRHX2125 125A 2-Pole Thermal Magnetic Circuit Breaker – Plug-On – 120/240V

The Eaton BRHX2125 125 Amp double-pole thermal magnetic circuit breaker delivers high-performance overload and short-circuit protection for residential and light commercial electrical systems. Designed specifically for Eaton BR loadcenters, this plug-on breaker features a higher 22 kAIC interrupting capacity for enhanced protection in demanding applications. Its robust construction and reliable trip mechanism make it a dependable solution for protecting 120/240V circuits.

Voltage and Rating

• Current Rating: 125 Amps
• Voltage Rating: 120/240 Volts
• Interrupting Capacity: 22 kAIC
• Poles: 2-Pole

Key Specifications

• Breaker Type: Thermal Magnetic Circuit Breaker
• Mounting Type: Plug-On
• Terminal Type: Line and load lug
• Application: For Eaton BR loadcenters
• Protection: Thermal overload and magnetic short-circuit protection

Technical Specifications

• Wire Size: #4 to 2/0 AWG (Copper/Aluminum)

Certifications

• UL 489

Product Data

• • Manufacturer: Eaton
  • Model Number: BRHX2125
  • UPC: 786689041670
  • Dimensions (H × W × L): 2.938 × 2 × 2.48 in
  • Weight: 0.6 lbs
