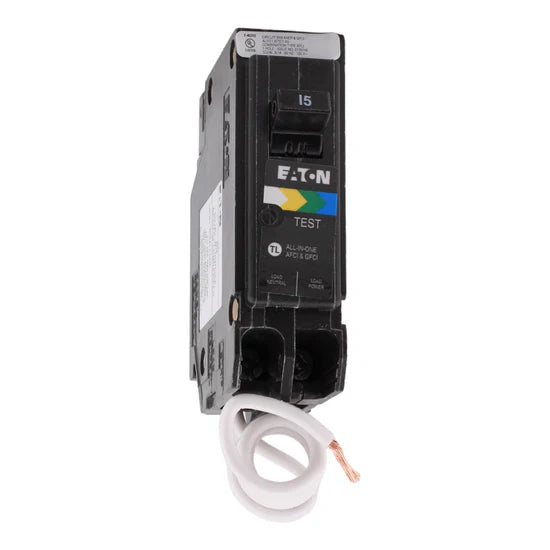

The Eaton BRN115A1CS 15 Amp single-pole dual-function circuit breaker provides advanced arc-fault and ground-fault protection for residential branch circuits. Designed for Eaton Type BR load centers, this breaker combines AFCI and GFCI protection in one compact device to help reduce the risk of electrical fires and shock hazards. The pigtail neutral design supports reliable installation and code compliance for modern residential wiring.
Voltage and Rating
- Amperage: 15 Amps
- Voltage: 120 Volts AC
- Interrupt Rating: 10 kA
Key Specifications
- Breaker Type: Dual Function AFCI/GFCI
- Product Type: Miniature Circuit Breaker
- Number of Poles: 1-Pole
- Mounting Mode: Plug-in
- Neutral Type: Pigtail neutral
- Product Range: BR
- Applications: Residential branch circuit protection
- Compatibility: Eaton Type BR load centers
Technical Specifications
- Wire Size: AWG 14 to AWG 4 (Copper or Aluminum)
- Terminal Tightening Torque: 20 lbf-in (2.3 N·m)
- Protection Functions: Arc-fault and ground-fault detection
- Certifications: UL Listed
Product Data
- Manufacturer: Eaton
- Brand: Eaton
- Model Number: BRN115A1CS
- UPC: 786689166311
-
Dimensions:
- Height: 2.5 in
- Width: 1.0 in
- Depth: 3.0 in
- Weight: 0.4 lb
