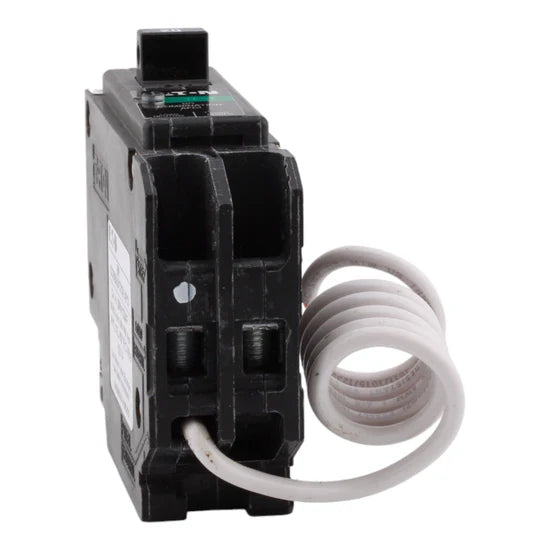

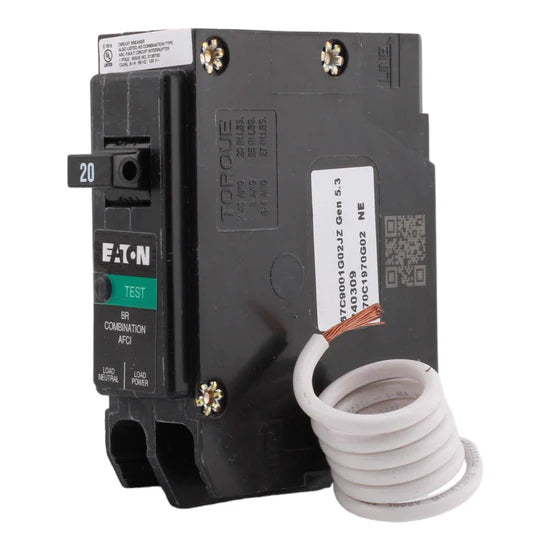

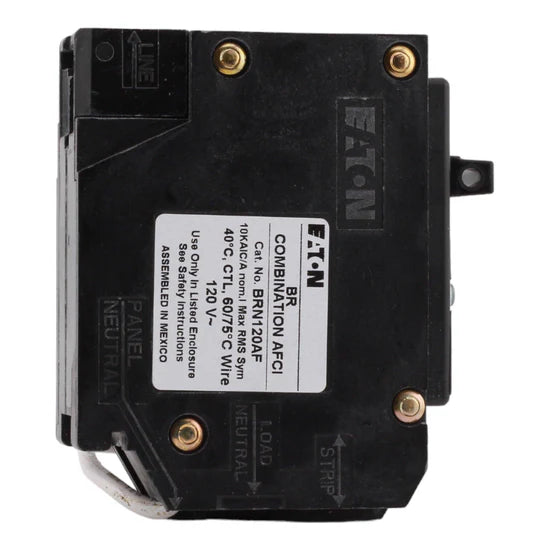

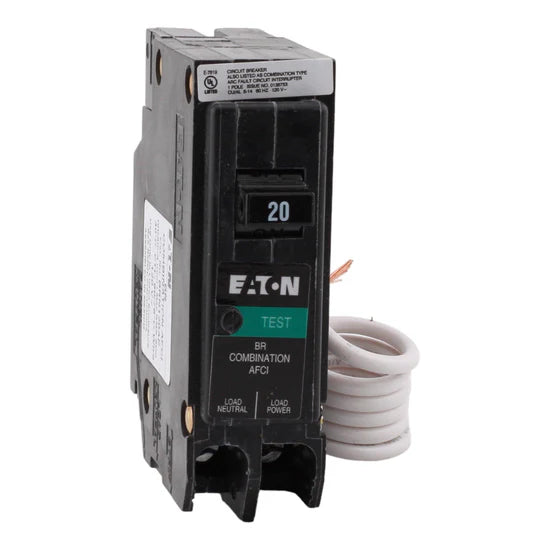

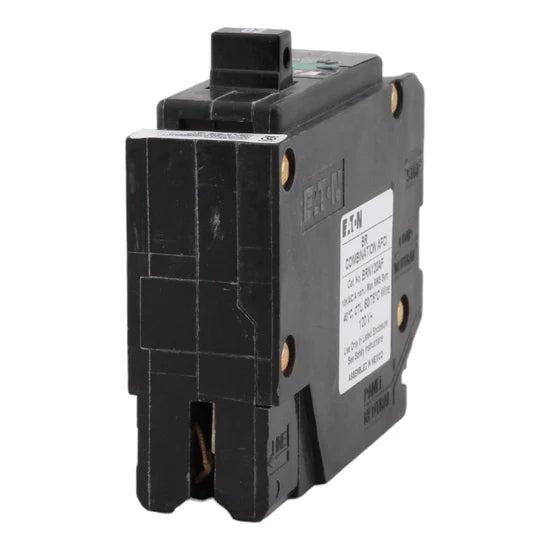

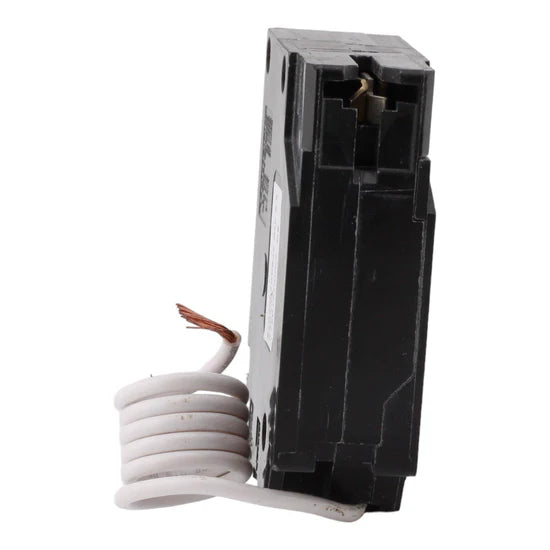

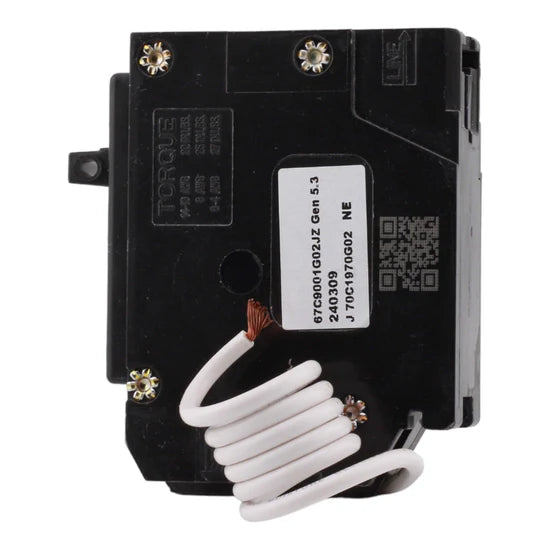

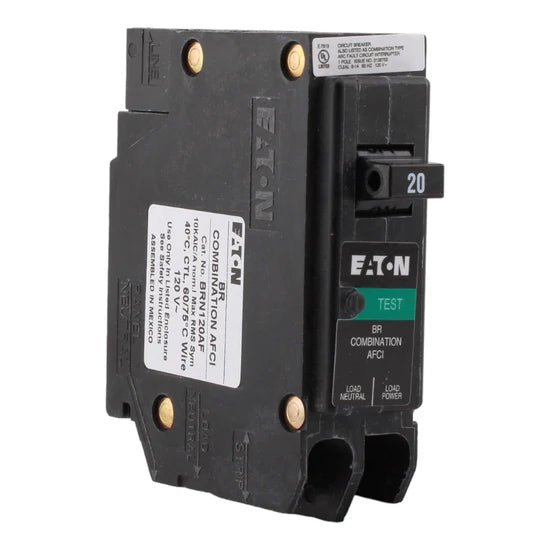

Eaton BRN120AF 20A 1-Pole AFCI Circuit Breaker – Plug-In (Pigtail Neutral) – 120V

The Eaton BRN120AF is a 20 Amp single-pole Arc Fault Circuit Interrupter (AFCI) designed to provide enhanced protection against arc-fault hazards in residential electrical systems. Built for Eaton BR load centers, this breaker features a plug-in mounting design with a pigtail neutral connection for secure installation and reliable performance.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Interrupt Rating: 10 kA

Key Specifications

• Breaker Type: Arc Fault Circuit Interrupter (AFCI)
• Number of Poles: 1-Pole
• Mounting Type: Plug-In
• Connection Type: Pigtail Neutral
• Compatibility: Eaton BR Loadcenters

Technical Specifications

• Wire Size Compatibility: AWG 14 to AWG 8 (Copper or Aluminum)
• Dimensions (H × W × D): 4.00 × 1.00 × 3.50 in
• Weight: 0.45 lb

Certifications

• UL Listed
• CSA Approved

Product Data

• Manufacturer: Eaton
• Model Number: BRN120AF
• UPC: 786689040895
