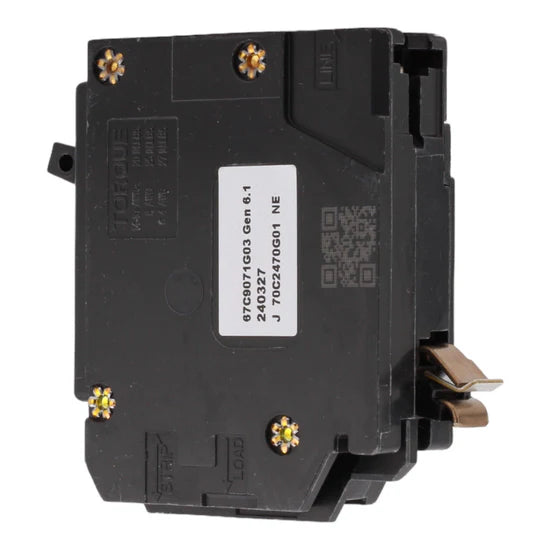

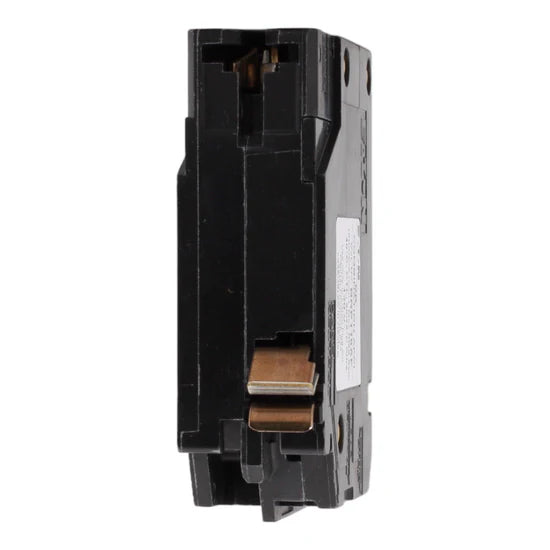

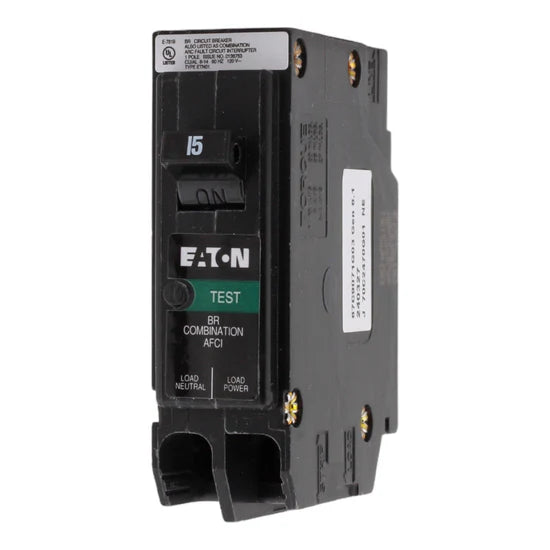

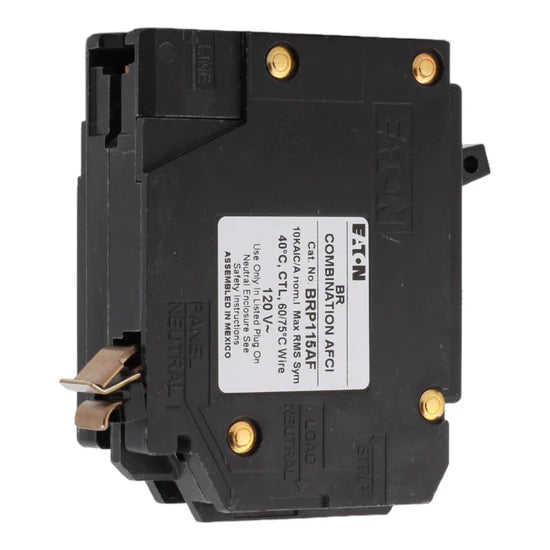

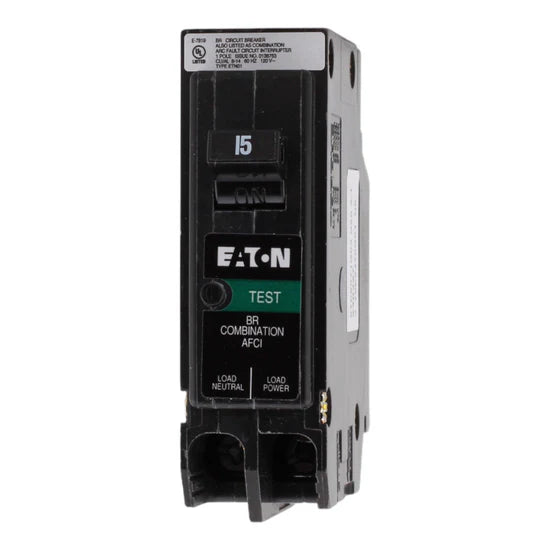

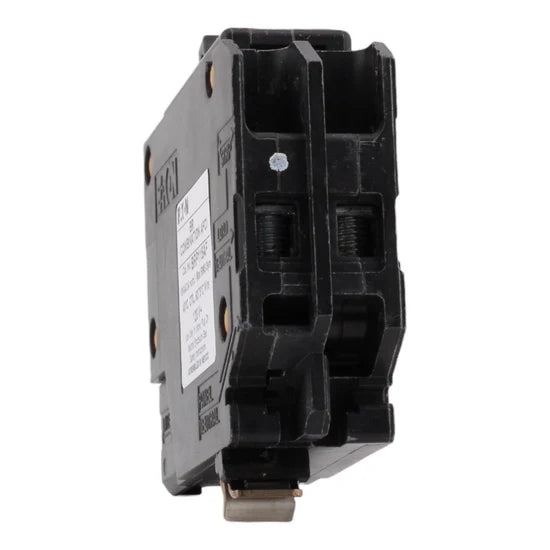

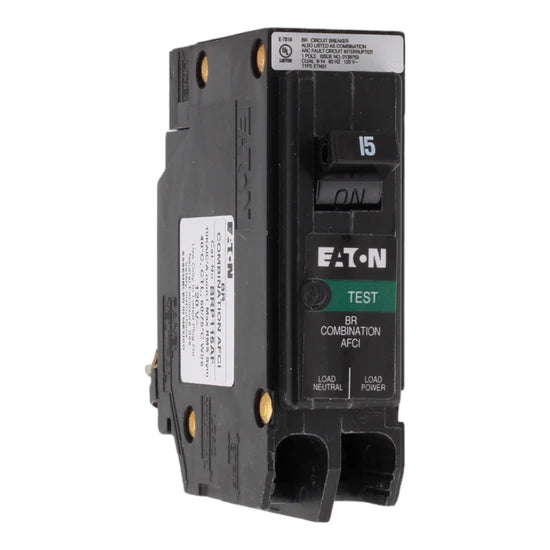

Eaton BRP115AF 15A 1-Pole AFCI Circuit Breaker – Plug-On Neutral – 120V

The BRP115AF from Eaton is a 15-amp, single-pole combination arc-fault circuit interrupter (AFCI) designed to help prevent electrical fires by detecting parallel and series arc faults. Its plug-on neutral configuration allows quick and secure installation in Eaton Type BR load centers.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Amperage Rating: 15 Amps
• Poles: 1-Pole
• Interrupt Rating: 10 kAIC

Key Specifications

• Breaker Type: Combination Arc-Fault Circuit Interrupter (AFCI)
• Mounting Type: Plug-On Neutral (Plug-In)
• Series / Product Range: BR Series
• Application: Arc-fault protection for residential branch circuits
• Compatibility: Eaton Type BR load centers

Technical Specifications

• Wire Size: #14 to #8 AWG (Copper or Aluminum)
• Terminal Tightening Torque: 20 lbf.in
• Dimensions (H × W × D): 1.1 × 1.0 × 2.56 in
• Weight: 0.38 lb
• Operating Mechanism: Thermal-magnetic with integrated AFCI protection
• Certifications: UL Listed

Product Data

• • Brand: Eaton BR
  • Manufacturer: Eaton
  • Model Number: BRP115AF
  • UPC: 786689041014
  • Product Type: AFCI Circuit Breaker
