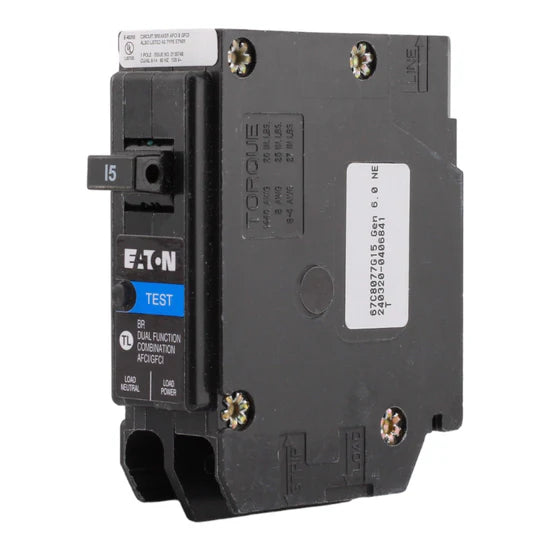

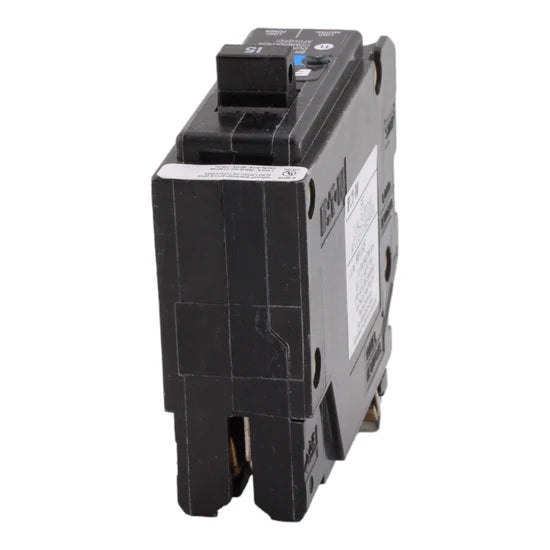

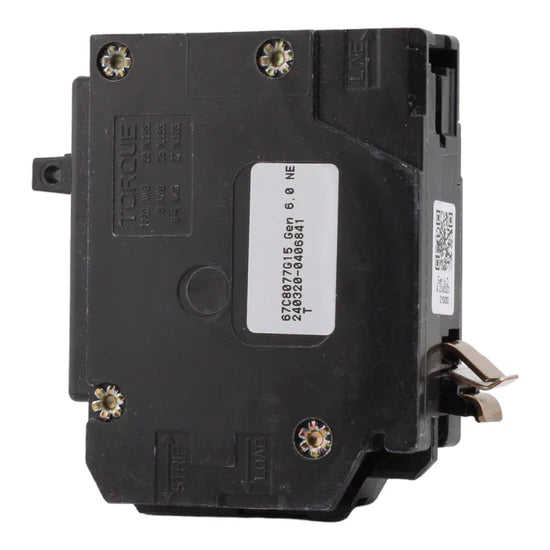

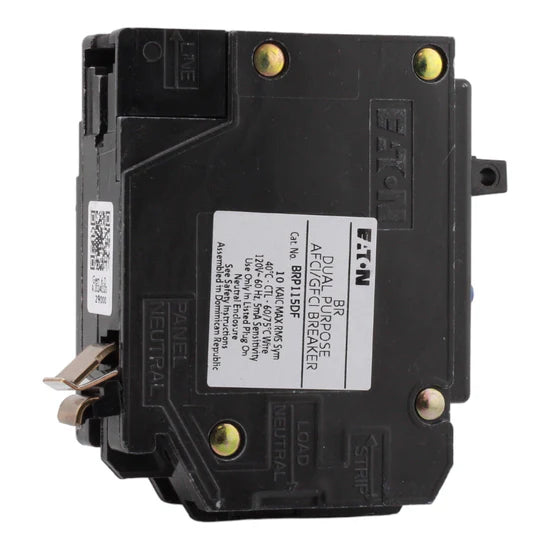

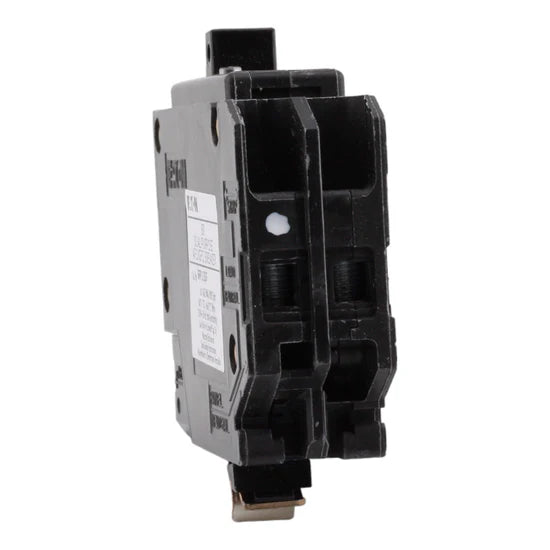

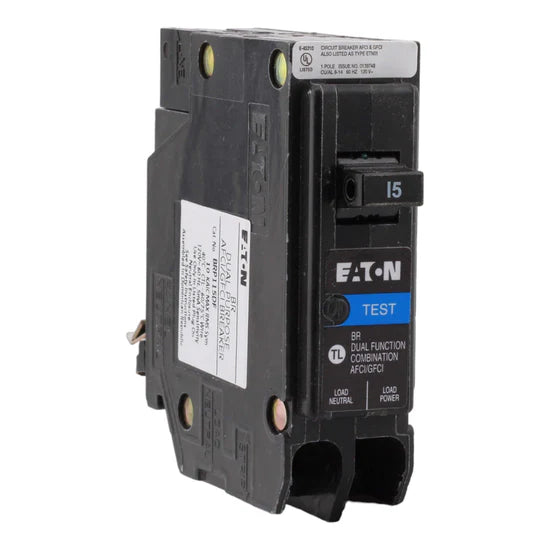

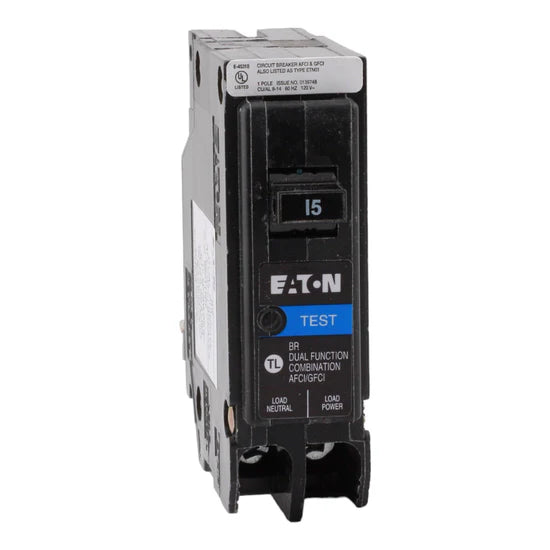

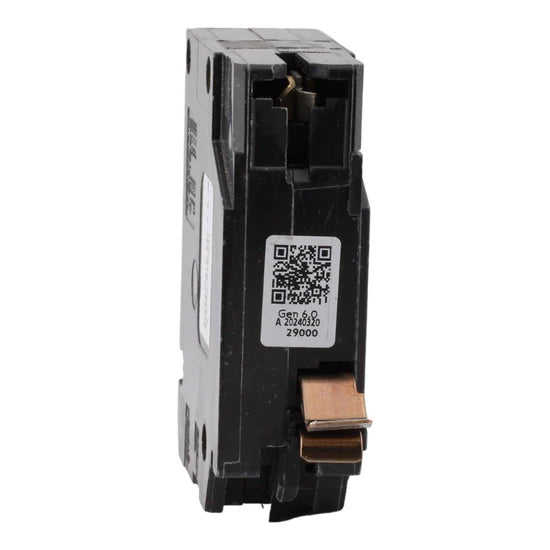

Eaton BRP115DF 15A 1-Pole AFCI/GFCI Circuit Breaker – Plug-On Neutral – 120V

The Eaton BRP115DF is a 15 Amp single-pole dual-function circuit breaker that provides both Arc-Fault (AFCI) and Ground-Fault (GFCI) protection. Designed for Eaton Type BR load centers, this breaker features a plug-on neutral design for faster installation and improved panel organization. It helps protect residential branch circuits from arc faults, ground faults, overloads, and short circuits, making it suitable for kitchens, bedrooms, living areas, and other residential applications requiring enhanced safety.

Voltage and Rating

• Current Rating: 15 Amps
• Voltage Rating: 120 Volts AC
• Interrupt Rating: 10 kA

Key Specifications

• Breaker Type: Dual Function AFCI/GFCI Circuit Breaker
• Number of Poles: 1-Pole
• Mounting Type: Plug-In
• Connection Type: Plug-On Neutral
• Compatibility: Eaton Type BR Loadcenters

Technical Specifications

• Wire Size: #14–8 AWG (Copper or Aluminum)
• Dimensions: 0.9 × 2.9 × 2.9 in
• Weight: 0.4 lb

Certifications

• UL Listed

Product Data

• • Manufacturer: Eaton
  • Brand: Eaton BR
  • Model Number: BRP115DF
  • UPC: 786670009191
