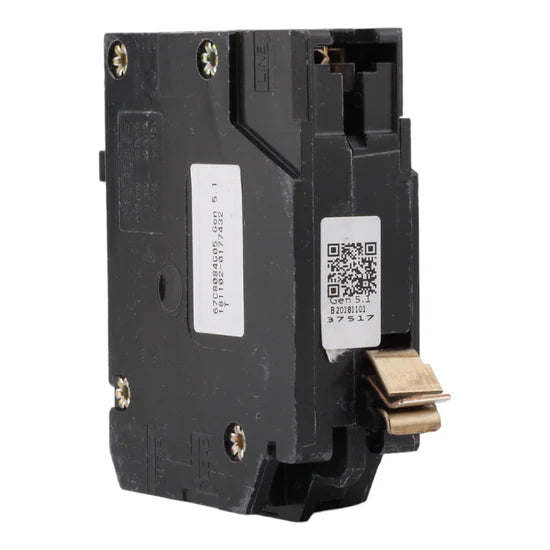

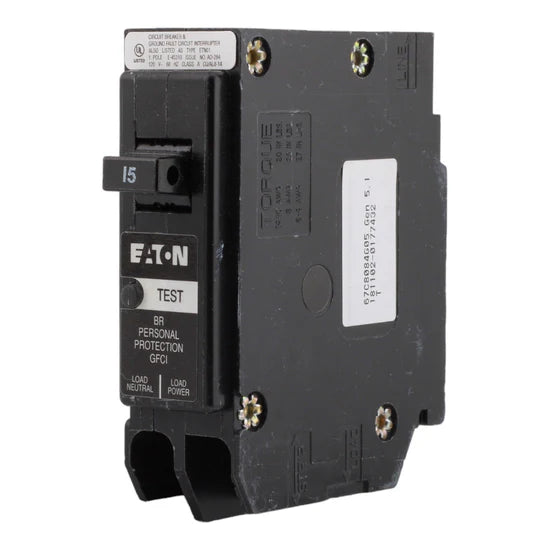

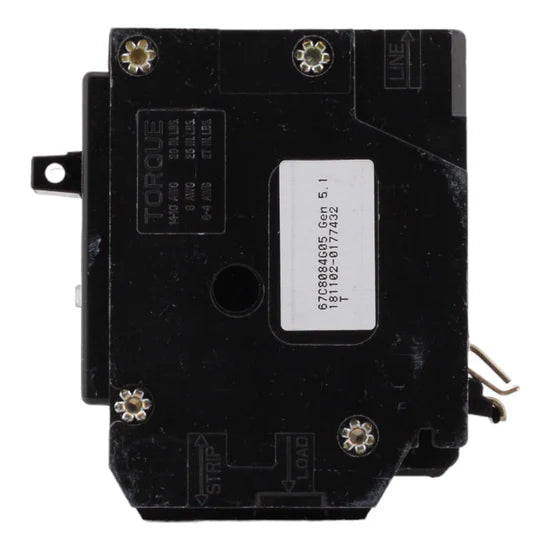

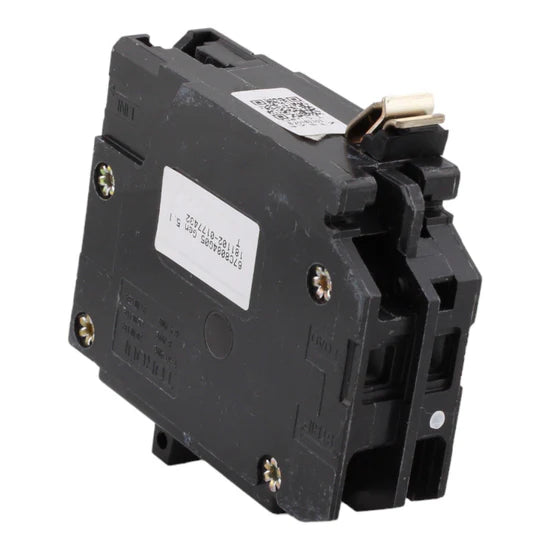

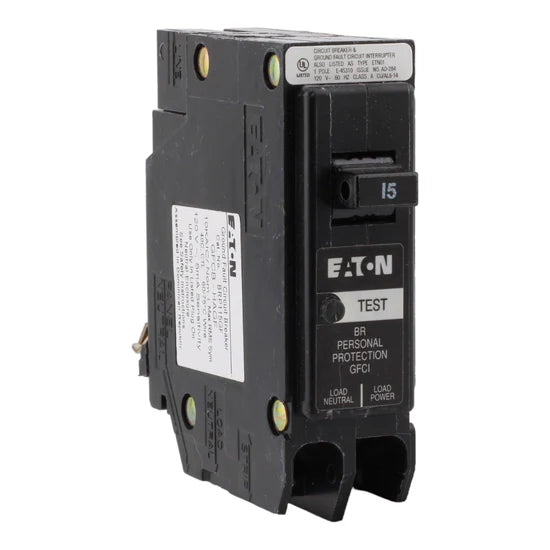

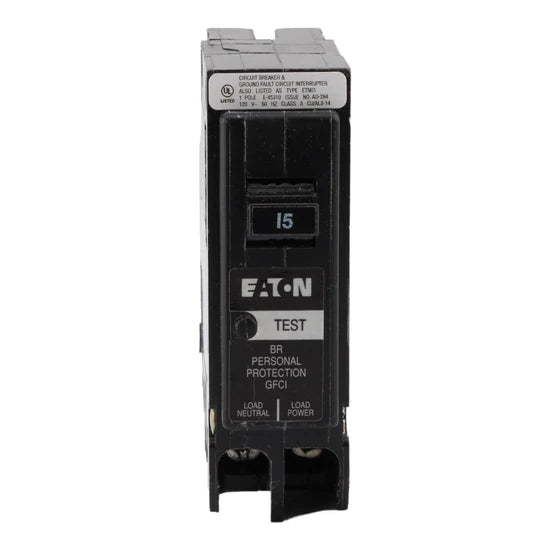

Eaton BRP115GF 15A 1-Pole GFCI Circuit Breaker – Plug-On Neutral – 120V AC

The Eaton BRP115GF is a 1-pole ground-fault circuit interrupter (GFCI) breaker designed for use in Eaton BR load centers and other compatible panels, including Cutler-Hammer, Bryant, Westinghouse, and Challenger. It provides dependable protection by detecting ground faults and interrupting the circuit quickly, helping reduce the risk of electrical shock and equipment damage.

The plug-on neutral design simplifies installation and helps maintain a clean panel layout, while the 5 mA trip sensitivity ensures effective ground-fault protection in branch circuits.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Current Rating: 15 Amps
• Interrupting Capacity: 10 kAIC
• Trip Sensitivity: 5 mA

Key Specifications

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Poles: 1-Pole
• Series: BR
• Mounting Type: Plug-On Neutral
• Compatible Panels: Eaton BR load centers and compatible panels (Cutler-Hammer, Bryant, Westinghouse, Challenger)
• Terminal Type: Plug-On Neutral

Technical Specifications

• Wire Size: #14–8 AWG
• Tightening Torque: 20 lb-in

• Dimensions:

  • Height: 1.0 in
  • Width: 3.5 in
  • Depth: 4.0 in

• Weight: 0.45 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: BRP115GF
• UPC: 786689031152
• Product Range: BR
