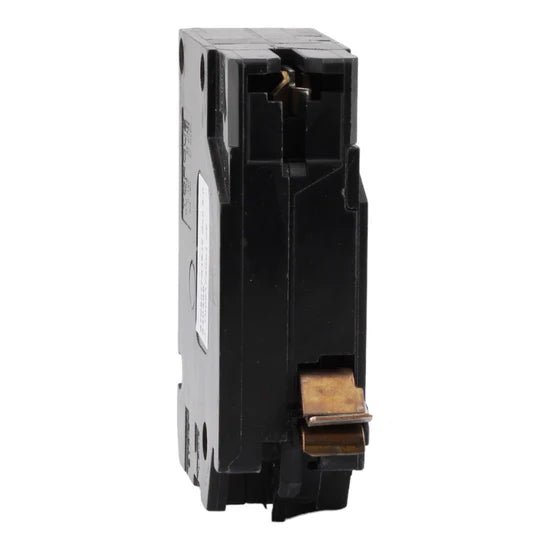

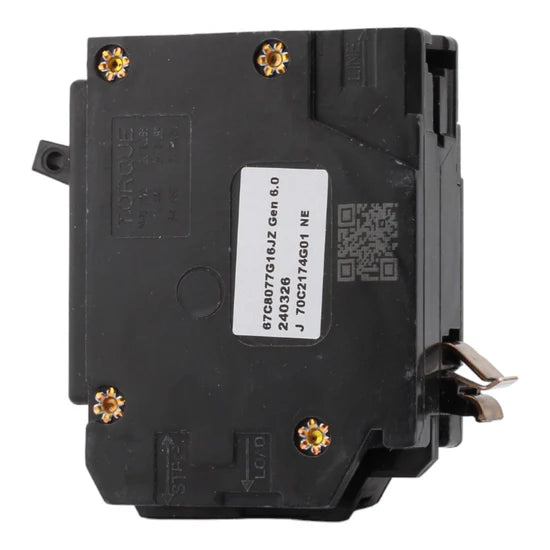

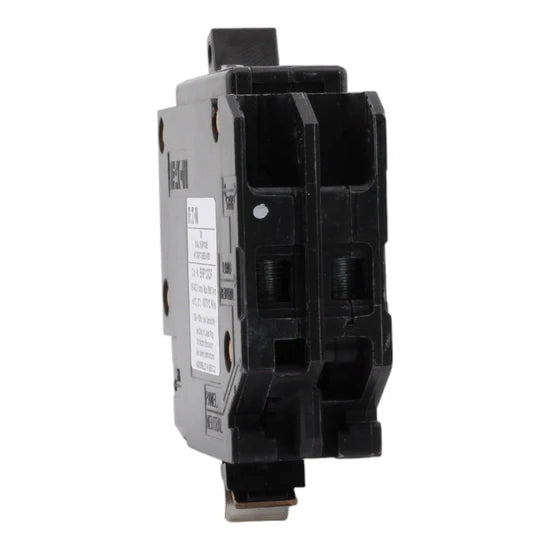

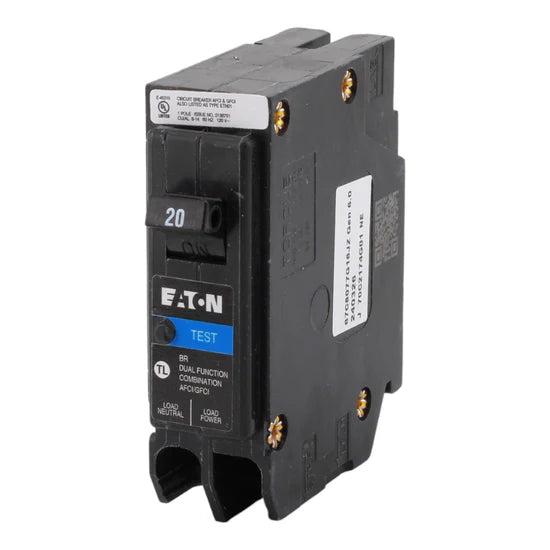

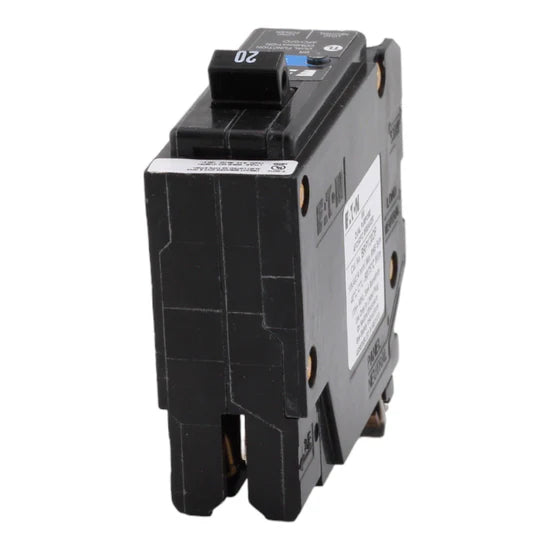

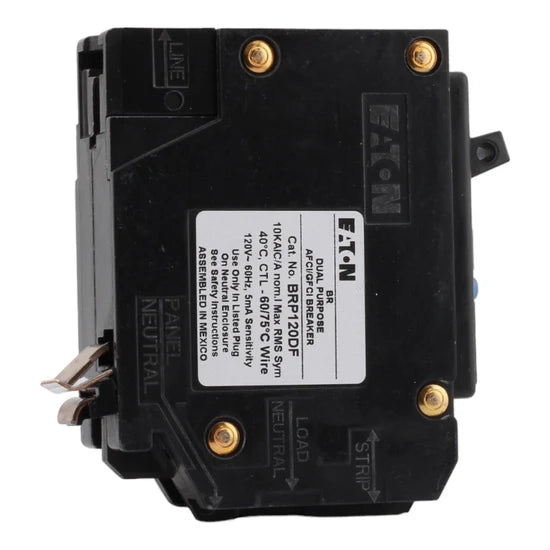

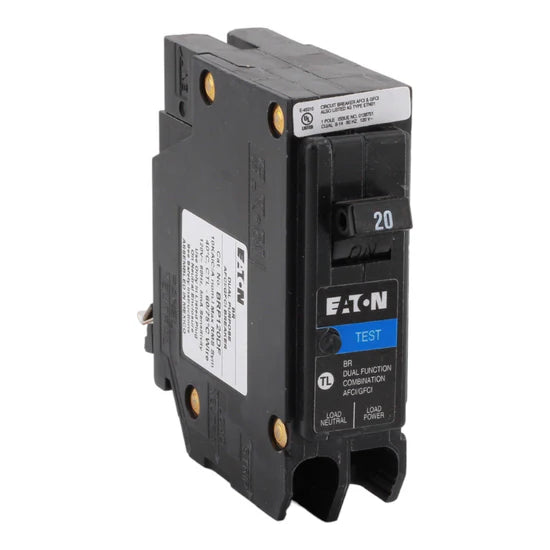

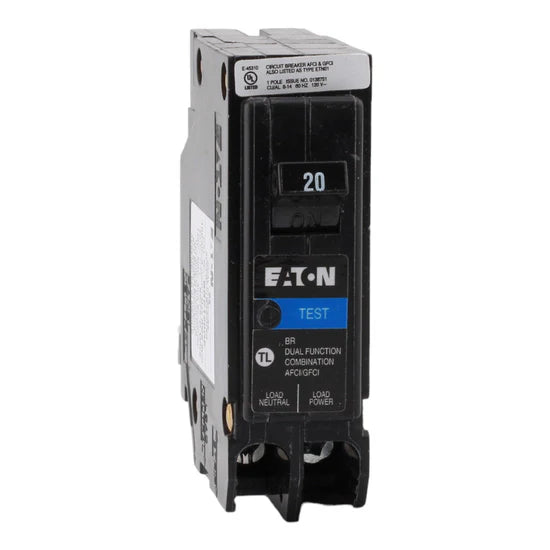

Eaton BRP120DF 20A 1‑Pole AFCI/GFCI Circuit Breaker – Plug‑On Neutral – 120V

The Eaton BRP120DF is a 20‑amp, single-pole combination AFCI and GFCI circuit breaker from Eaton’s BR series. It provides dual arc-fault and ground-fault protection, and installs easily into Eaton Type BR loadcenters with its plug-on neutral design.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Amperage Rating: 20 Amps
• Poles: 1‑Pole
• Interrupt Rating: 10 kA

•
  Key Specifications

• Breaker Type: Combination AFCI/GFCI Circuit Breaker
• Mounting Type: Plug-On Neutral
• Series: BR
• Application: Residential branch circuit protection
• Compatibility: Eaton Type BR loadcenters

Technical Specifications

• Operating Mechanism: Thermal-magnetic trip
• Wire Size Range: #14–#8 AWG (Copper/Aluminum)
• Tightening Torque: 20 lbf.in
• Dimensions (H × W × D): 0.9 × 2.9 × 2.9 in
• Weight: 0.4 lbs
• Certifications: UL Listed

Product Data

• Brand: Eaton BR
• Manufacturer: Eaton
• Model Number: BRP120DF
• UPC: 786670009207
• Product Type: Combination AFCI/GFCI Circuit Breaker
