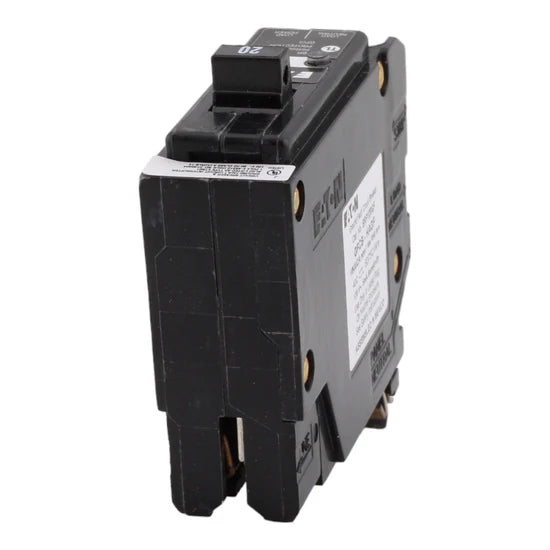

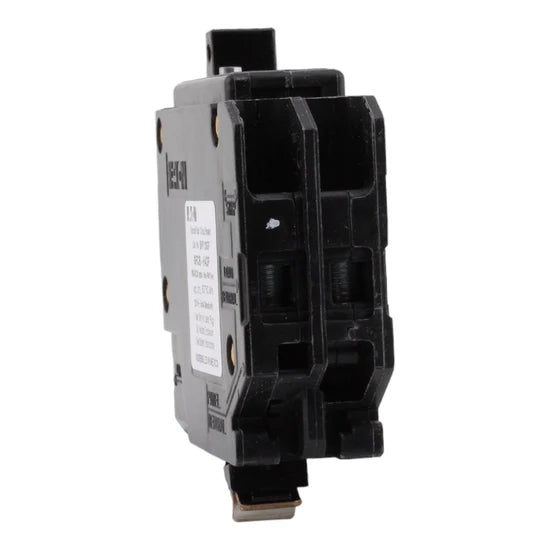

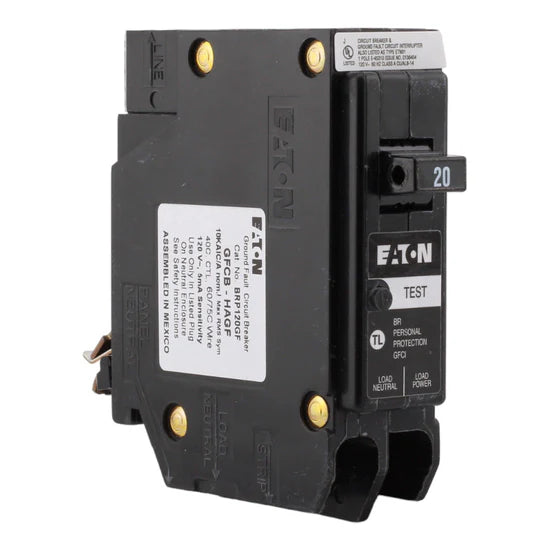

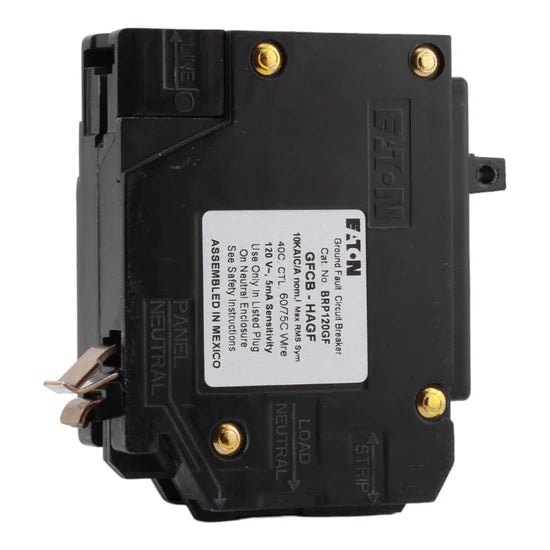

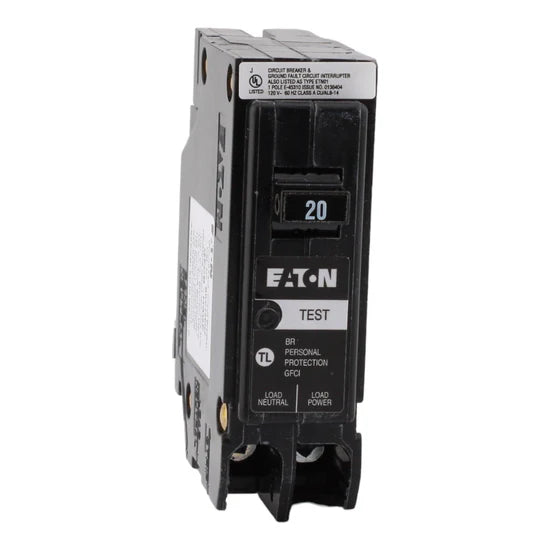

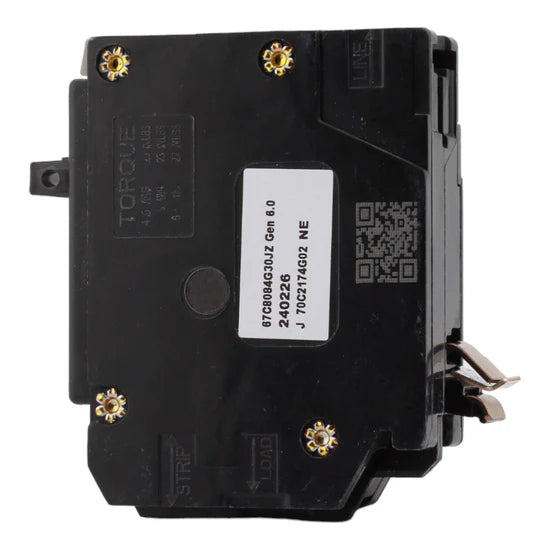

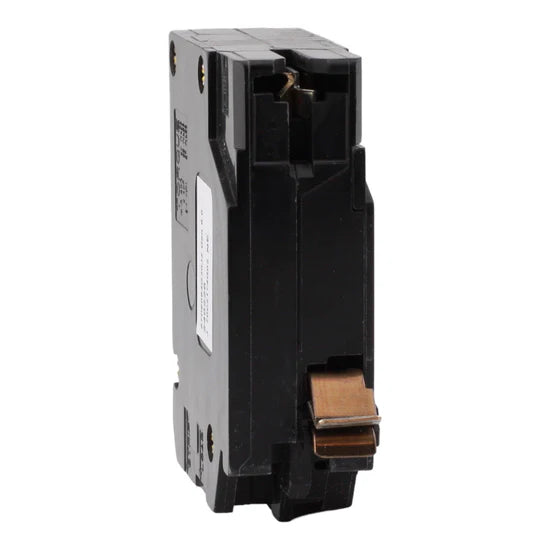

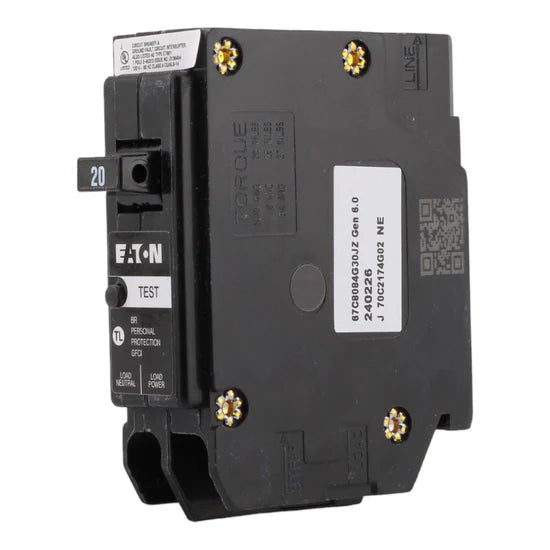

Eaton BRP120GF 20A 1-Pole GFCI Circuit Breaker – Plug-On Neutral – 120/240V AC

The Eaton BRP120GF is a 1-pole GFCI circuit breaker designed for installation in Eaton BR series load centers. It provides dependable ground-fault protection by monitoring current flow and disconnecting the circuit when leakage is detected, helping protect wiring and connected equipment.

Its plug-on neutral configuration allows faster installation and improved panel organization, while the trip-to-center indicator makes it easy to identify a tripped breaker. With 5 mA ground-fault sensitivity, it delivers reliable protection for branch circuits operating on 120/240V systems.

Voltage and Ratings

• Voltage Rating: 120/240 Volts AC
• Current Rating: 20 Amps
• Interrupting Capacity: 10 kAIC
• Ground-Fault Trip Level: 5 mA

Key Specifications

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Poles: 1-Pole
• Series: BR
• Mounting Type: Plug-On Neutral
• Special Feature: Trip-to-center indication
• Compatible Panels: Eaton BR load centers and related equipment

Technical Specifications

• Wire Size: #14–8 AWG
• Tightening Torque: 14–16 lb-in

• Dimensions:

  • Height: 4.0 in
  • Width: 3.5 in
  • Depth: 1.0 in

• Weight: 0.45 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Eaton
• Brand: Eaton
• Model Number: BRP120GF
• UPC: 786689031206
• Product Range: BR
