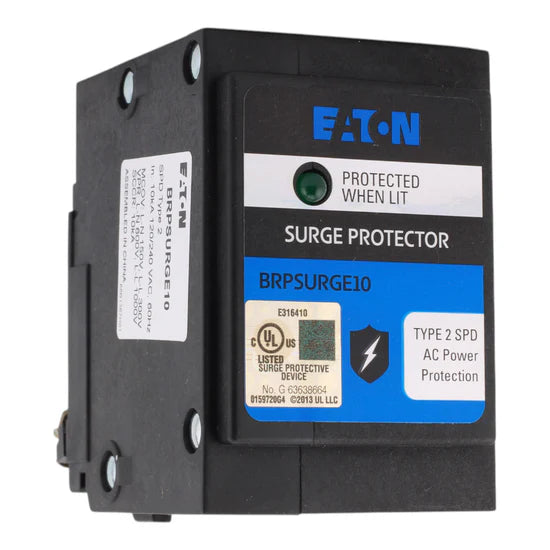

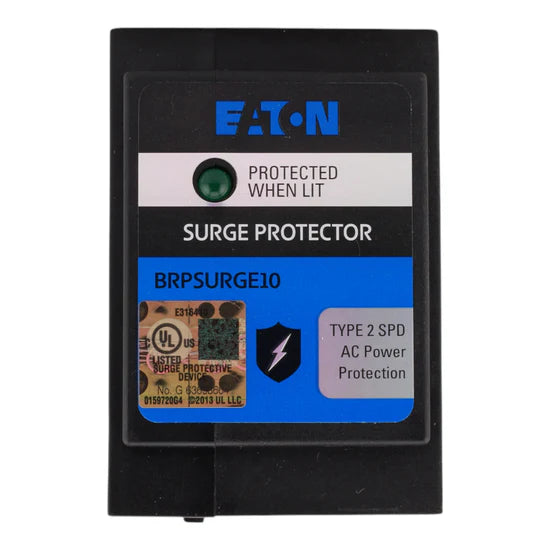

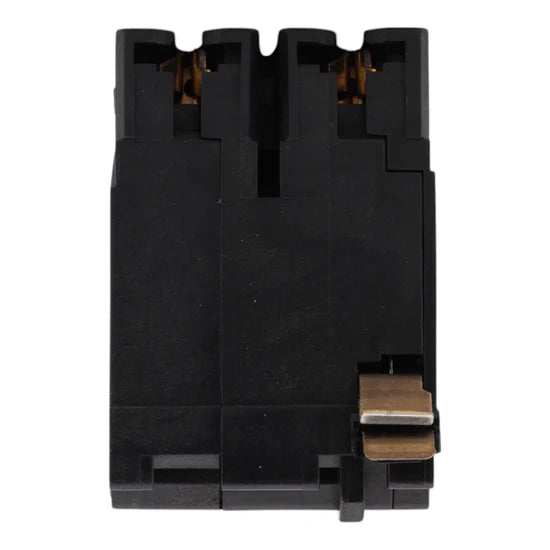

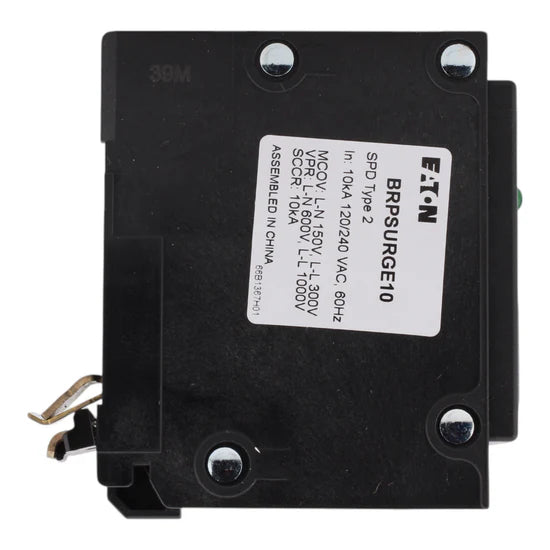

Eaton BRPSURGE10 2P Surge Protective Device – Plug-On Neutral – 120/240V

Eaton BRPSURGE10 2P Surge Protective Device – Plug-On Neutral – 120/240V provides reliable whole-home surge protection for Eaton BR load centers. Designed to guard electrical systems and connected equipment from transient voltage spikes, this plug-on neutral SPD offers fast installation and dependable performance. With a 20 kA surge current capacity and multiple protection modes, it is ideal for residential surge protection applications.

Voltage and Rating:

• Maximum Continuous Operating Voltage: 150V L-N, 300V L-L
• Short Circuit Current Rating: 10 kAIC
• Nominal Discharge Current: 10 kA
• Frequency: 50/60 Hz

Key Specifications:

• Device Type: Type BR Surge Protective Device
• Number of Poles: 2-Pole
• Mounting Type: Plug-On Neutral
• Protection Modes: L-N, L-L
• Application: Whole-home surge protection
• Compatible Load Centers: Eaton BR load centers

Technical Specifications:

• Surge Current Capacity: 20 kA
• Connection Type: Plug-on neutral

Product Data:

• • Manufacturer: Eaton
  • Brand: Eaton
  • Model Number: BRPSURGE10
  • UPC: 786689880804
  • Dimensions (H × W × D): 2.4 in × 3.5 in × 3.6 in
  • Weight: 0.408 lbs
