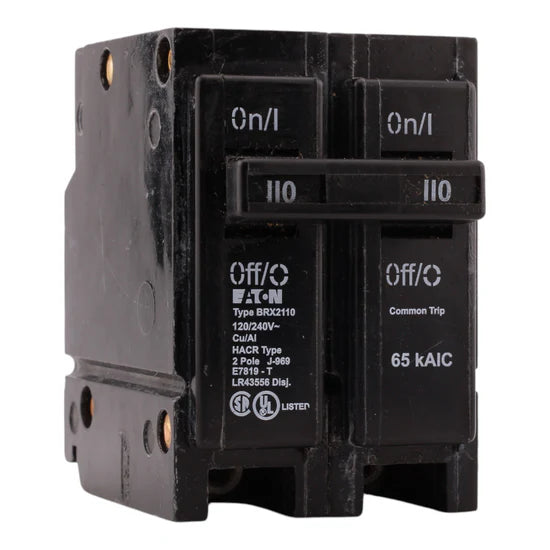

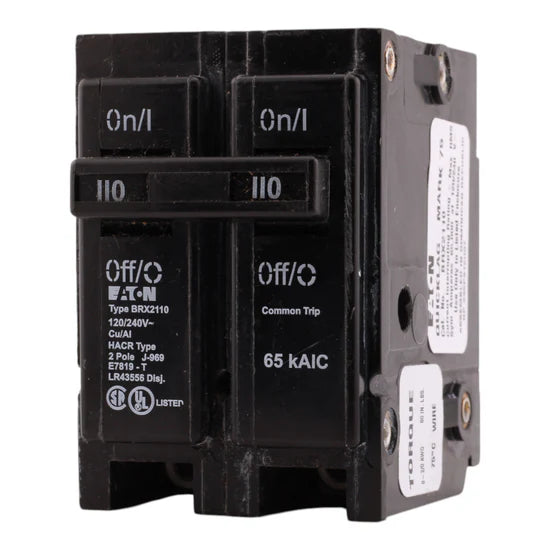

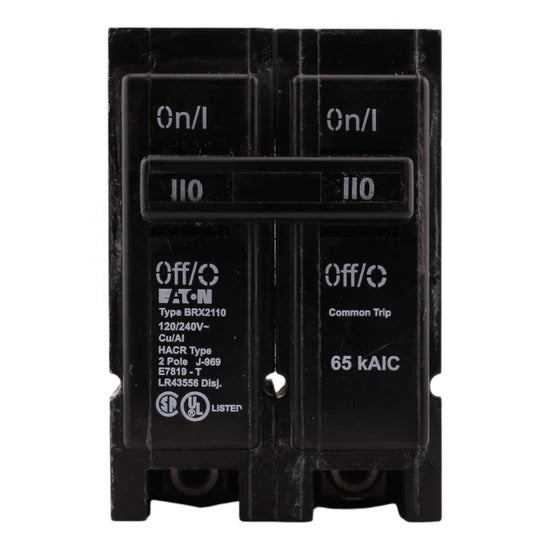

The Eaton BRX2110 110 Amp 2-pole thermal-magnetic circuit breaker provides robust overload and short-circuit protection for residential and light commercial BR panel applications. With a high 65 kAIC interrupt rating and wide wire compatibility (#14–2/0 AWG), this plug-in breaker ensures reliable performance under demanding electrical conditions. UL listed and compliant with Federal Specifications W-C375, the BRX2110 is engineered for safe and efficient protection in 120/240V systems.
Voltage and Rating
- Current Rating: 110 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 65 kAIC
- Poles: 2-Pole
Key Specifications
- Breaker Type: BR/BRX Thermal-Magnetic Circuit Breaker
- Mounting Type: Plug-In (for Eaton BR load centers)
- Frequency Rating: 50–60 Hz

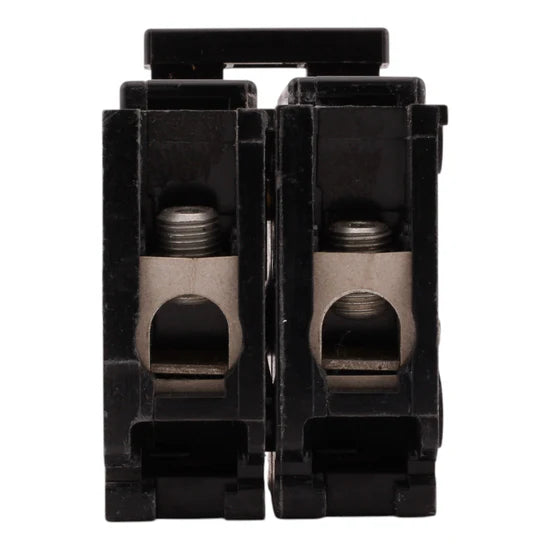

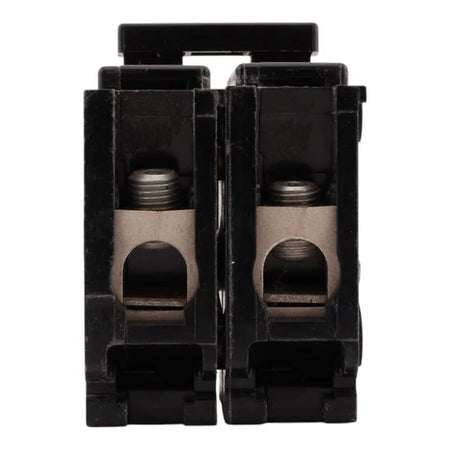

- Wire Size Compatibility: #14–2/0 AWG
- Application: Residential and light commercial BR panels
- Certifications: UL Listed (File E7819)
- Compliances: Federal Specifications W-C375
Technical Specifications
- Operating Mechanism: Thermal-Magnetic
- Trip Type: Standard (non-interchangeable)
Product Data
-
- Manufacturer: Eaton
- Brand: BR
- Model Number: BRX2110
- UPC: 786685926810
- Dimensions: Height: 3 in; Width: 2 in; Depth: 3 in
- Weight: 0.5 lb
