Eaton Bussmann

Eaton Bussmann CCPB-3-30CF 30A 3P UL98 Fusible Disconnect – Class CF – 600V – Finger Safe

In stock
SKU: CCPB-3-30CF GTIN/UPC: 051712201544
$483.00
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

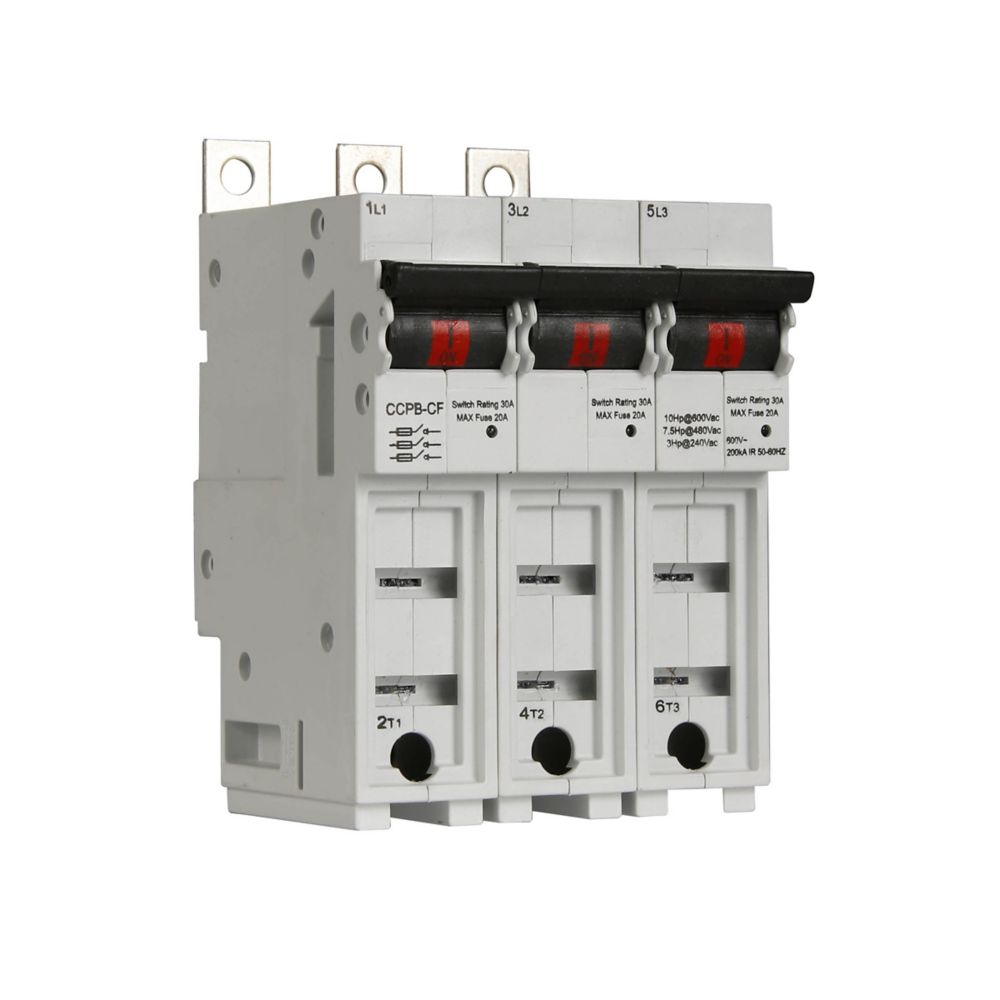

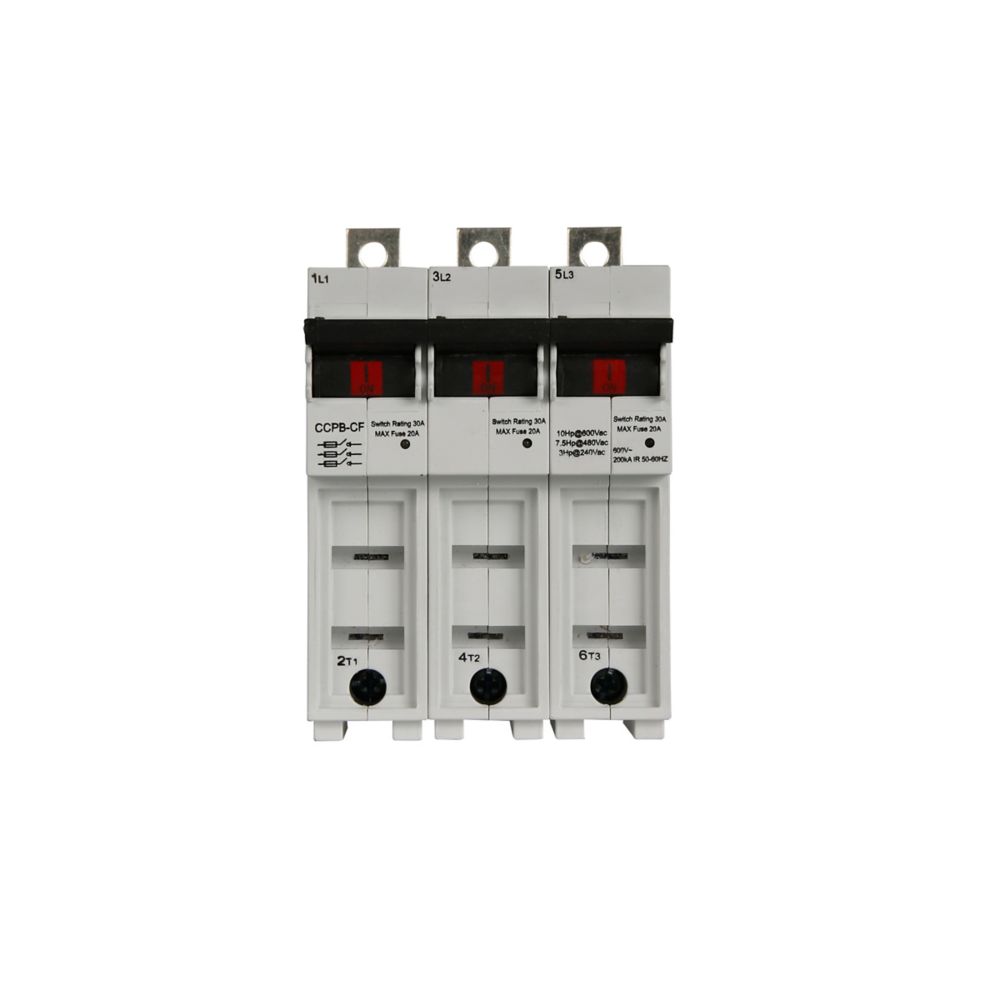

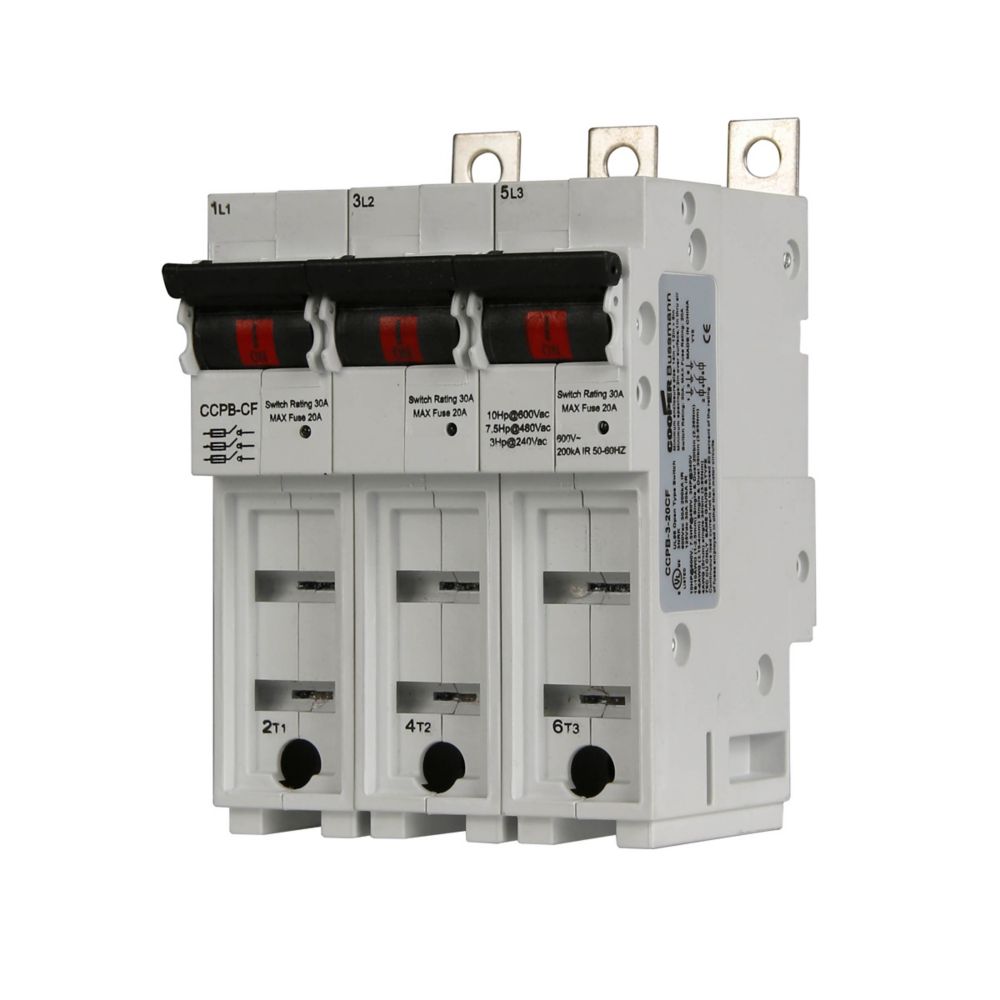

The Eaton Bussmann CCPB-3-30CF is a UL 98 listed fusible disconnect designed for reliable circuit protection in industrial and commercial electrical distribution systems. Part of the CCPB series, it supports Class CF fuse compatibility and delivers high interrupting performance in a compact, safe design. Rated at 30A and 600V, this three-pole unit features a finger-safe construction and lock-on provision for enhanced operator safety and maintenance control.

Voltage and Rating

  • Current Rating: 30A
  • Voltage Rating: 600V
  • Short Circuit Rating: 200 kAIC

Key Specifications

  • Manufacturer: Eaton Bussmann
  • Catalog Number: CCPB-3-30CF
  • Product Type: UL98 Fusible Disconnect
  • Class: Class CF
  • Number of Poles: 3-Pole
  • Application: Industrial Electrical Protection Systems
  • Special Features: Finger Safe, Lock-On Provision

Technical Specifications

  • Fuse Compatibility: Class CF
  • Compliance: CE Marked, RoHS Compliant
  • Certifications: Contact Manufacturer
  • Construction Type: Fusible Disconnect Switch
  • Design: Safety-Enhanced Modular System

Physical Details

  • Product Length/Depth: 0.11 in
  • Product Height: 0.15 in
  • Product Width: 0.12 in

Product Data

  • Manufacturer: Eaton Bussmann
  • UPC: 051712201544
  • Model Number: CCPB-3-30CF
  • Category: Fusible Disconnects
  • Product Weight: 0.67 lb
  • Warranty: Not Applicable
  • Type Circuit Breakers
  • Vendor Eaton Bussmann
  • Brand Eaton Bussmann
