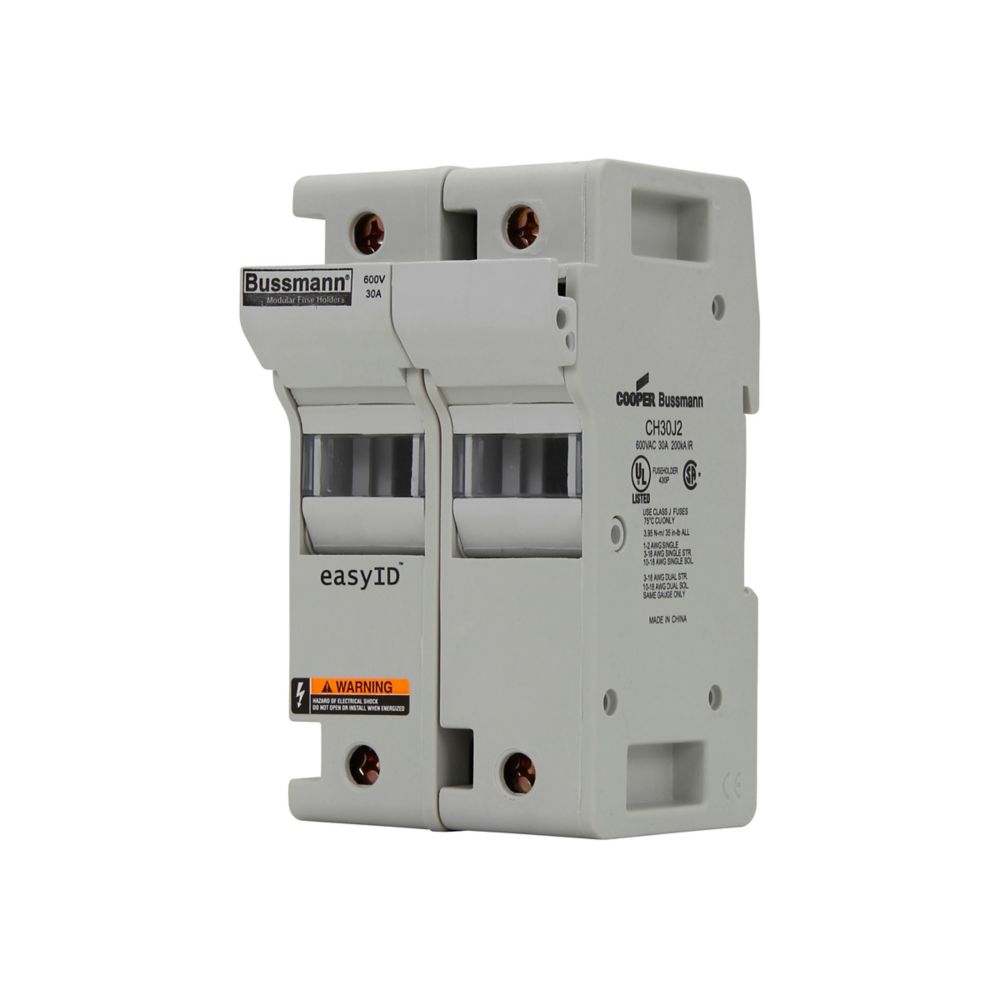

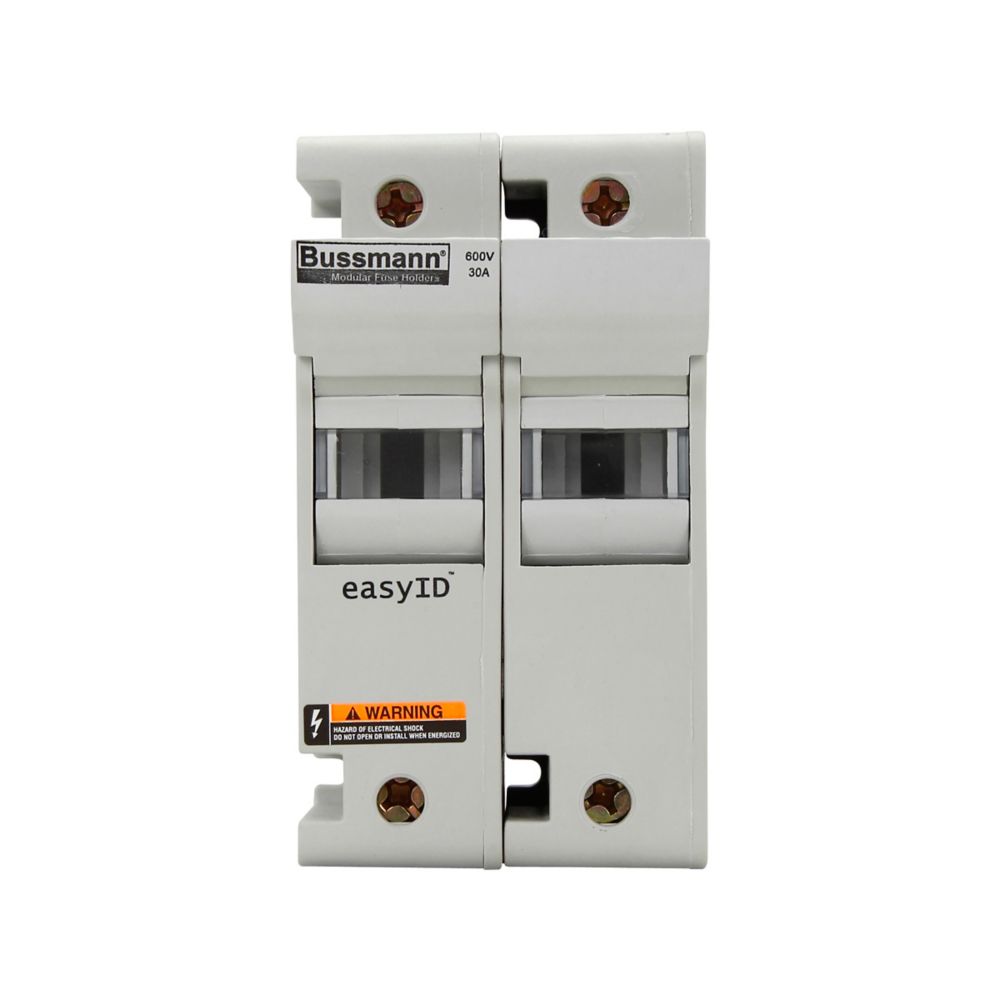

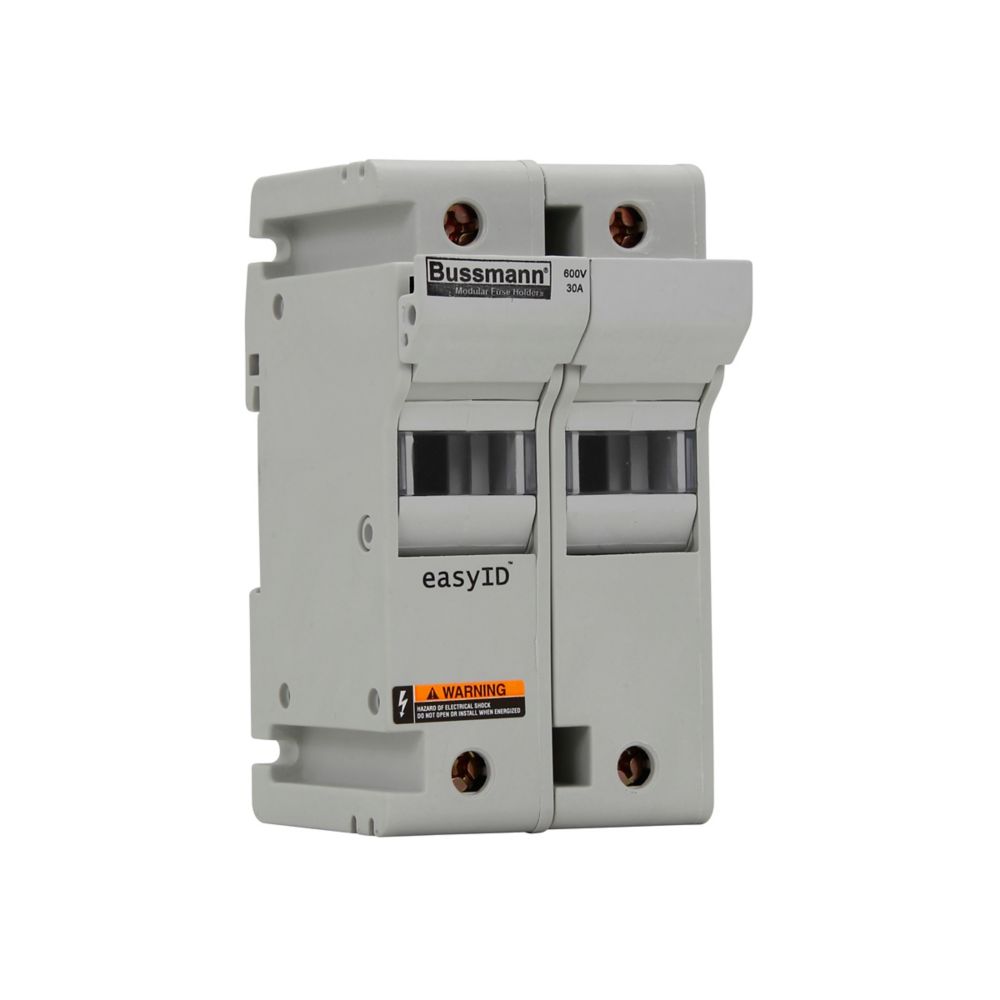

Eaton Bussmann CH30J2 30A 2P Modular Fuse Holder – Class J – 600VAC/VDC – DIN Rail/Panel Mount

In stock
SKU: CH30J2 GTIN/UPC: 051712630849
$105.00
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Eaton Bussmann CH30J2 is a modular fuse holder designed for Class J fuse applications in industrial and commercial electrical systems. Rated at 30A and supporting up to 600VAC/VDC, it provides reliable overcurrent protection in a compact, modular design. Built with tin-plated copper clips and a thermoplastic housing, this two-pole fuse holder ensures durability, secure electrical contact, and easy installation on DIN rail or panel mounting systems.

Voltage and Rating

  • Current Rating: 30A
  • Voltage Rating: 600VAC / 600VDC

Key Specifications

  • Manufacturer: Eaton Bussmann
  • Product Type: Modular Fuse Holder
  • Catalog Number: CH30J2
  • Class: Class J
  • Number of Poles: 2-Pole
  • Mounting Method: 35 mm DIN Rail / Panel Mount
  • Application: Industrial Circuit Protection

Technical Specifications

  • Material: Tin-plated copper clip, Thermoplastic housing
  • Operating Temperature Range: -85°C to 85°C
  • Fuse Compatibility: Class J
  • Construction: Modular Design

Physical Details

  • Product Length/Depth: 4.5 in
  • Product Height: 2 in
  • Product Width: 4 in

Product Data

  • Manufacturer: Eaton Bussmann
  • UPC: 051712630849
  • EAN: 5027590161831
  • Product Weight: 0.848 lb
  • Category: Fuse Holders
  • Compliances: RoHS Compliant, CE Marked
  • Certifications: UL Listed, CSA Certified (Contact Manufacturer for Details)
  • Warranty: Not Applicable
  • Type Circuit Breakers
  • Vendor Eaton Bussmann
  • Brand Eaton Bussmann
