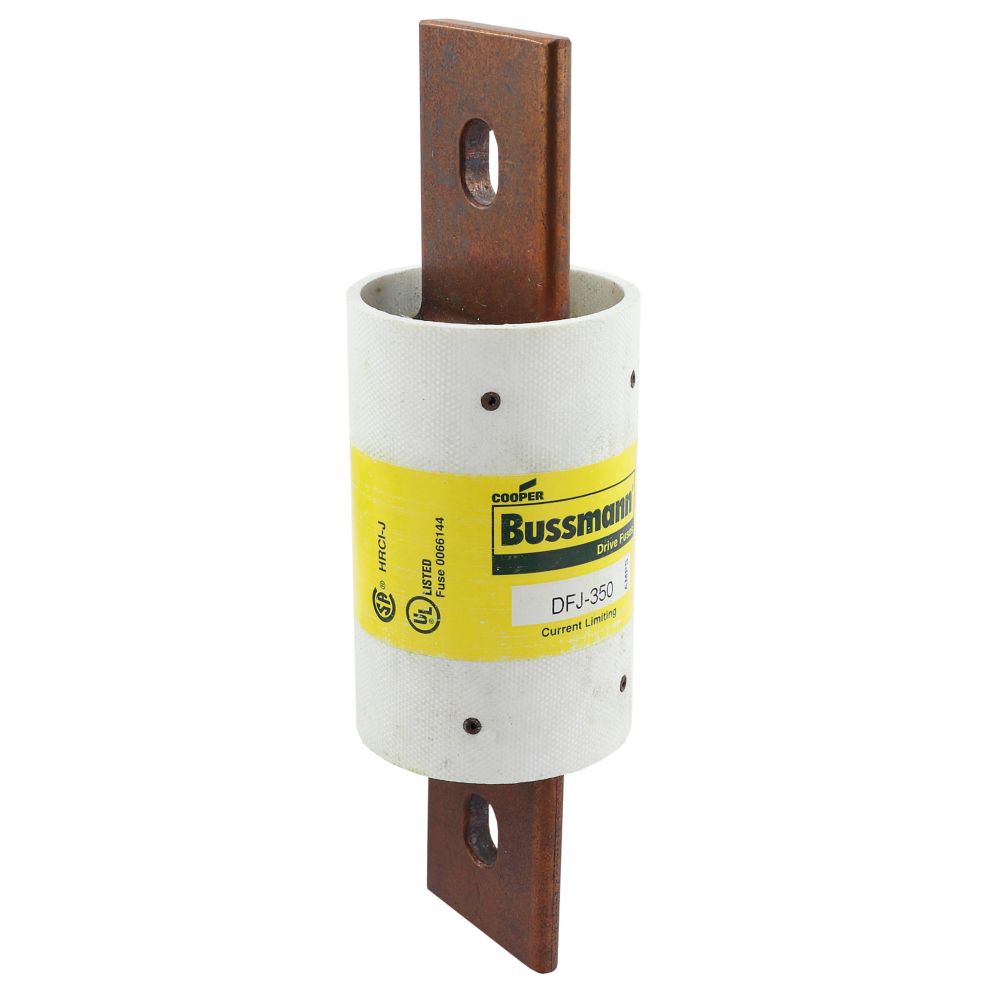

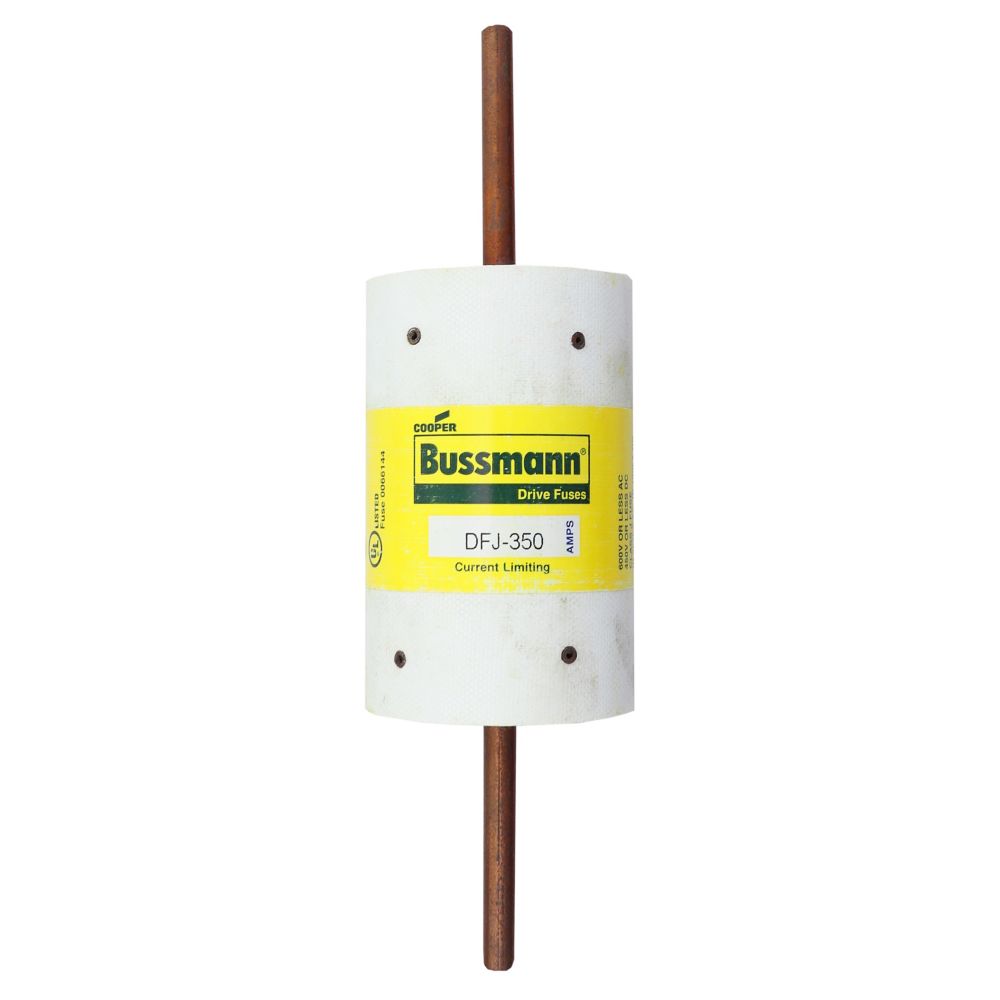

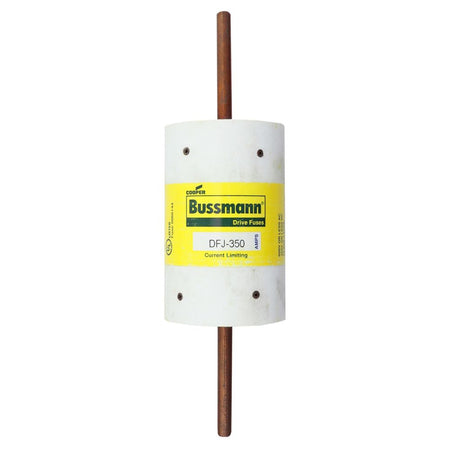

Eaton Bussmann DFJ-350 350A High Speed Fuse – Class J – 600VAC / 450VDC – Clip-Lock
Couldn't load pickup availability
Ask an expert
The Eaton Bussmann DFJ-350 is a high-speed Class J fuse designed for rapid fault interruption in industrial and power conversion applications. With a 350A current rating, it provides reliable circuit protection for systems operating up to 600VAC or 450VDC. Built with a durable melamine tube body and clip-lock connection, this non-indicating fuse ensures secure installation and consistent high-performance protection in demanding environments.
Voltage and Rating
- Current Rating: 350A
- Voltage Rating: 600VAC or less / 450VDC or less
- Interrupt Rating: 200 kAIC @ 600VAC, 100 kAIC @ 450VDC
Key Specifications
- Manufacturer: Eaton Bussmann
- Catalog Number: DFJ-350
- Product Type: High Speed Fuse
- Class: Class J
- Fuse Indicator: Non-Indicating
- Connection Type: Clip-Lock
- Application: High-speed circuit protection
Technical Specifications
- Material: Melamine Tube
- Packaging Type: Standard
- Compliance: CE Marked, RoHS Compliant
- Certifications: UL Listed, CSA Certified
- Construction Type: High Speed Fuse Element
Physical Details
- Product Length/Depth: 2.13 in
- Product Height: 7.5 in
- Product Width: 2.13 in
Product Data
- Manufacturer: Eaton Bussmann
- UPC: 051712653954
- Model Number: DFJ-350
- Category: Fuses
- Product Weight: 1.55 lb
- Warranty: Not Applicable
- Type Circuit Breakers
- Vendor Eaton Bussmann
- Brand Eaton Bussmann
